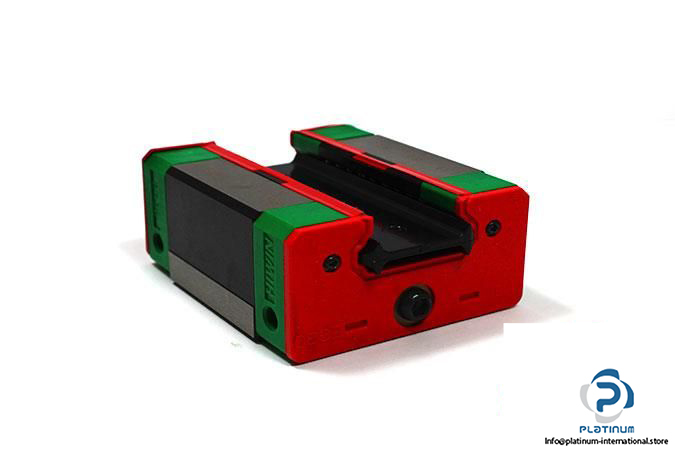

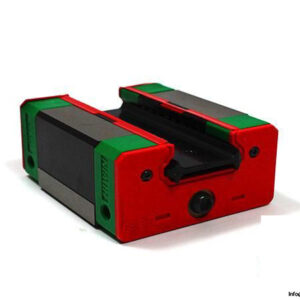

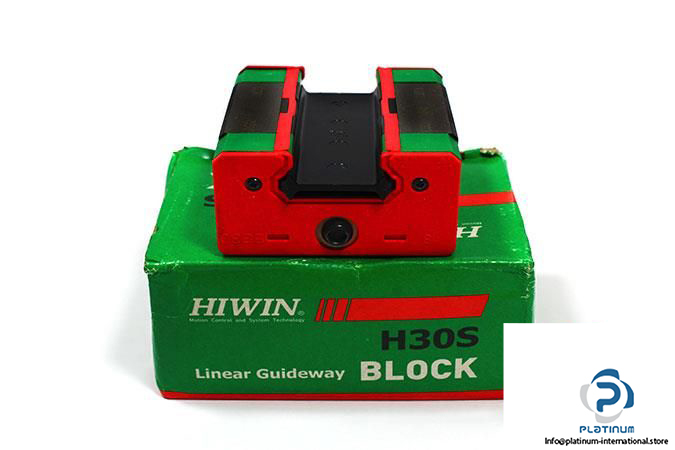

HIWIN EGH30SA LINEAR GUIDEWAY BLOCK
Designed for precision motion applications, this Hiwin square-type linear guideway block supports medium loads with high stiffness and accuracy. Its top-mount configuration and compact design make it ideal for industrial automation and positioning systems.
Manufacturer: Hiwin
Type: Linear Guideway Block

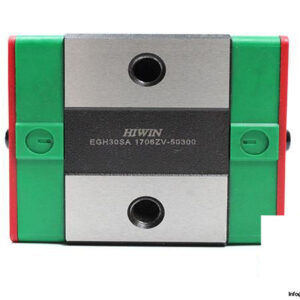

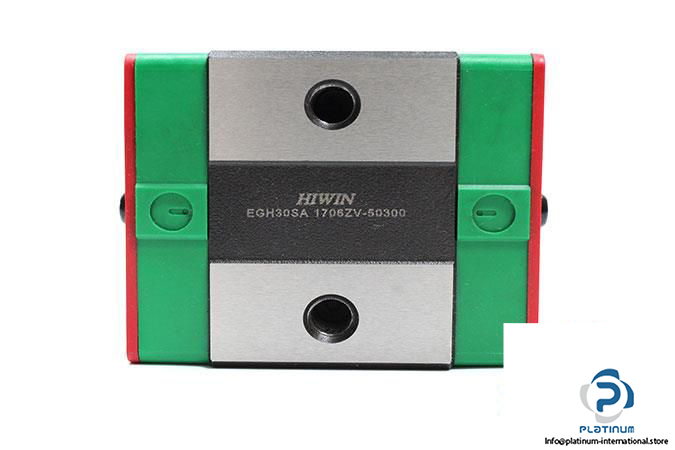

MNR: EGH30SA 1706ZV-50300
Size: 30 mm
Technical Information
- Block Height: 32 mm
- System Height: 42 mm
- Block Width: 60 mm
- Block Length: 69.5 mm
- Distance Between Holes: 40 mm
- Thread Size: M6 x 25
- Rail Width: 28 mm
- Rail Height: 23 mm
- Block Type: Square
- Load Type: Medium Load
- Block Mounting Type: From Top
- Basic Dynamic Load Rating: 16.42 kN
- Basic Static Load Rating: 28.10 kN
