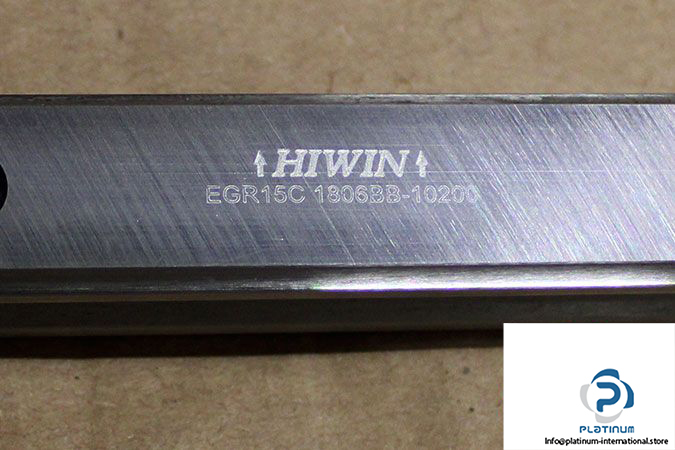

HIWIN EGR 15 C LINEAR GUIDEWAY RAIL

The Hiwin EGR 15 C linear guideway rail is engineered for high-precision motion and heavy-duty linear applications. With a compact profile, 4000 mm length, and consistent mounting pitch, it is ideal for automated machinery, CNC equipment, and linear positioning systems.

Manufacturer: Hiwin
Type: Linear Guideway Rail EGR
Model: EGR 15 C
Size: 15

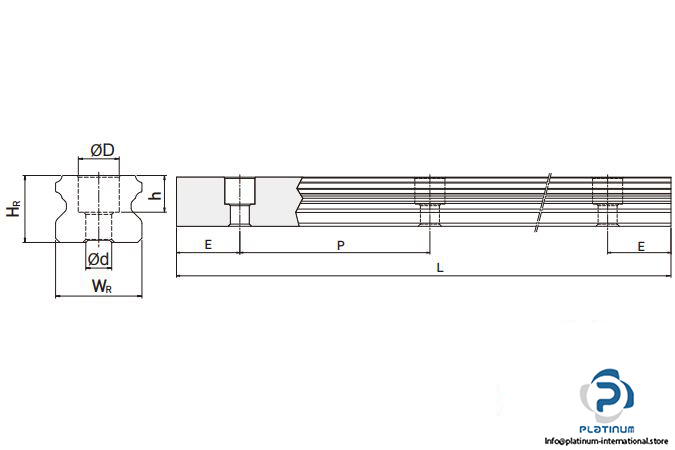

Technical Information

• Rail Height (HR): 12.5 mm
• Rail Width (WR): 15 mm
• Rail Length (L): 4000 mm
• Hole Pitch (P): 60 mm
• D: 6 mm
• h: 4.5 mm
• d: 3.5 mm
