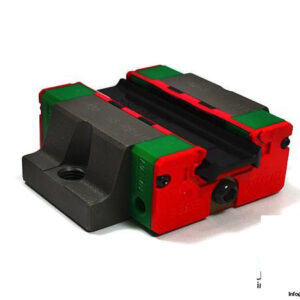

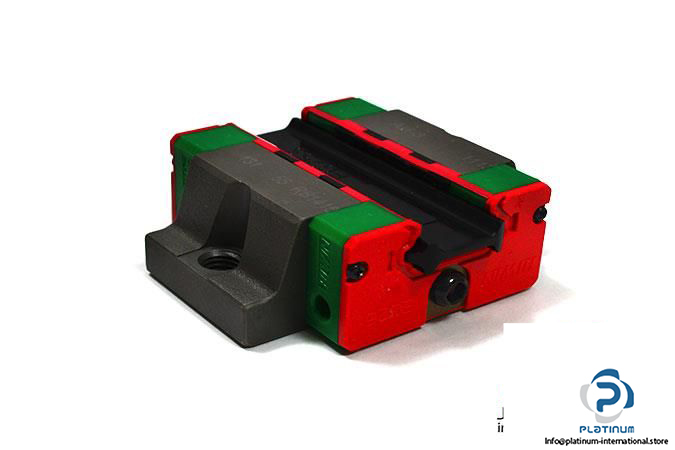

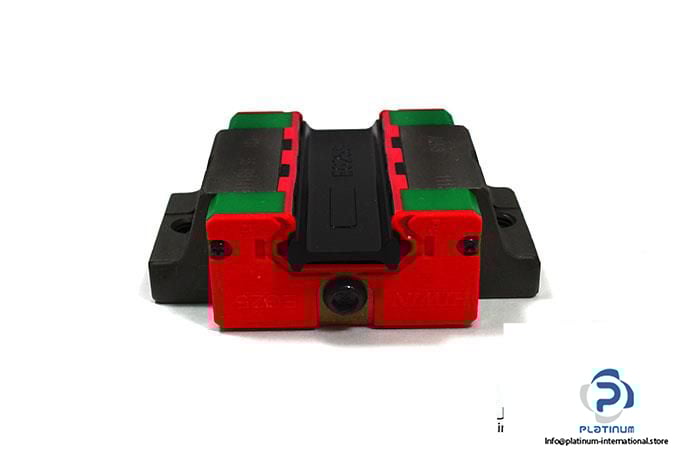

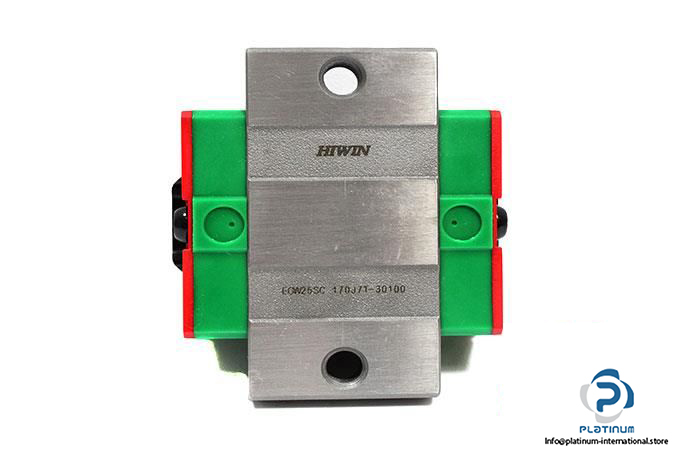

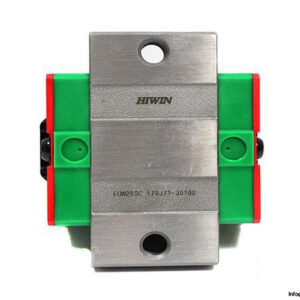

HIWIN EGW25SC LINEAR GUIDEWAY BLOCK

This Hiwin linear guideway block is designed for stable and precise linear motion in automation systems. Built with a 25 mm rail size and flange-type block, it supports average load applications with high accuracy and smooth travel.

Manufacturer: Hiwin
Type: Linear Guideway Block

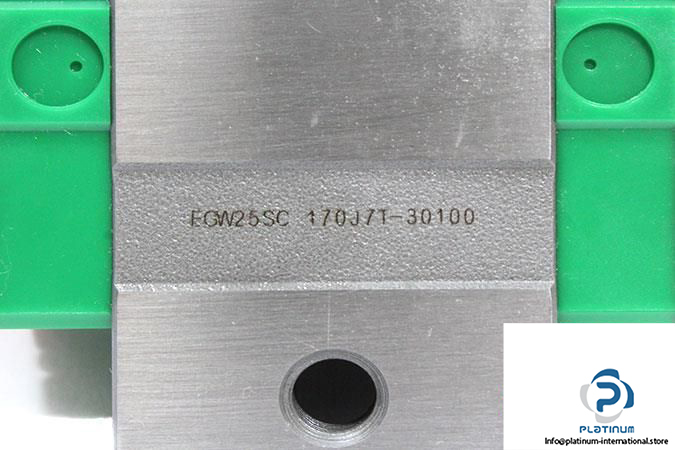

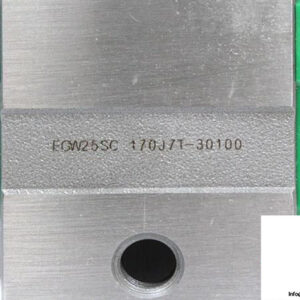

MNR: EGW25SC 170071-30100
Size: 25 mm

Technical Information

• Block Height: 26 mm
• System Height: 33 mm
• Block Width (W): 73 mm
• Block Length (L): 59.1 mm
• Distances Between Holes: 60 mm
• Thread Size: M8
• Rail Width: 23 mm
• Rail Height: 18 mm
• Block Type: Flange
• Load Type: Average Load
• Block Mounting Type: From Above
• Basic Dynamic Load Rating: 11400 N
• Basic Static Load Rating: 19500 N
