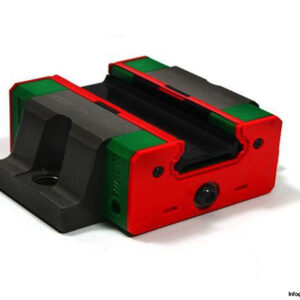

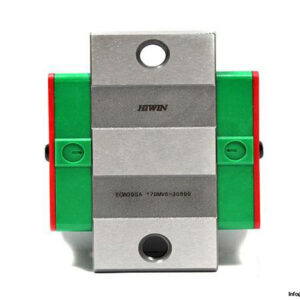

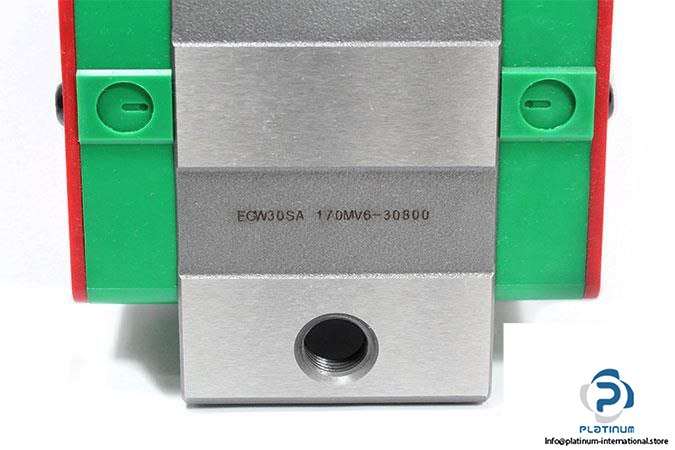

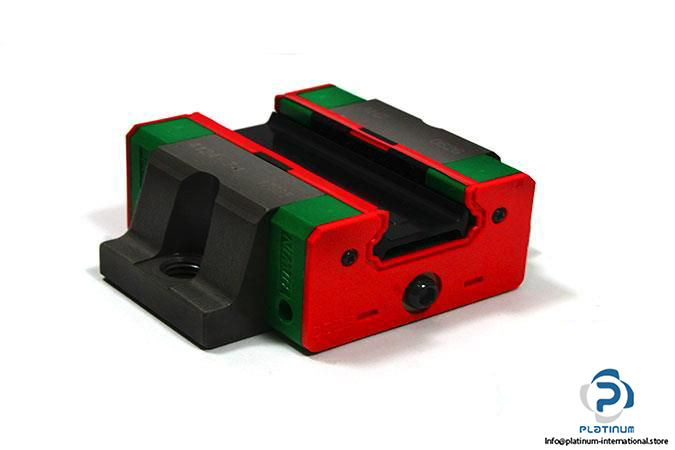

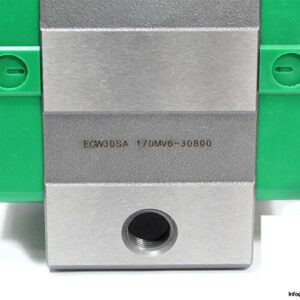

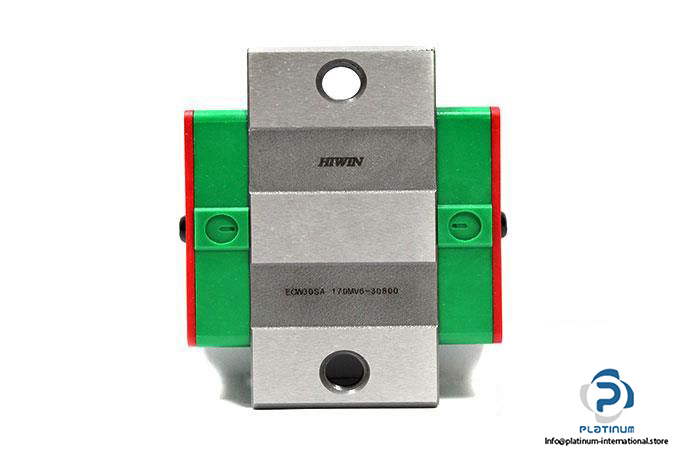

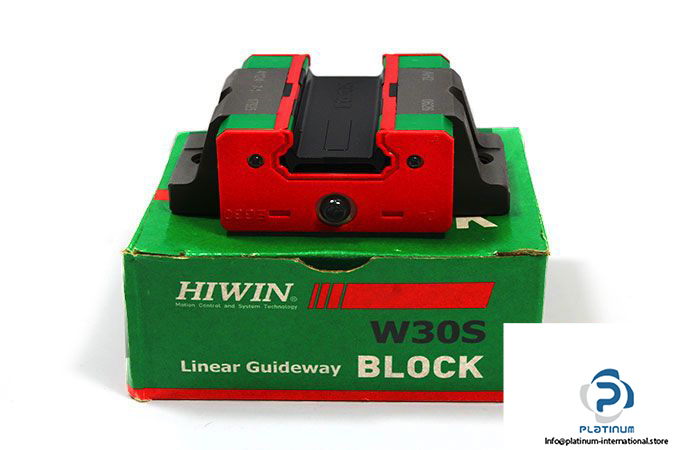

HIWIN EGW30SA 17MV6-30800 LINEAR GUIDEWAY BLOCK

This Hiwin linear guideway block is engineered for precise linear motion in medium-load applications. With a robust flange-type design, it offers high load capacity and rigidity, ideal for industrial automation, machinery, and motion systems requiring stable and smooth guidance.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW30SA 17MV6-30800

Technical Information

• Size: 30 mm
• Block Height: 32 mm
• Block Width: 90 mm
• Block Length: 69.5 mm
• System Height: 42 mm
• Distances Between Holes: 72 mm
• Rail Width: 28 mm
• Rail Height: 23 mm
• Thread Size: M6 x 25
• Basic Dynamic Load Rating: 16.42 kN
• Basic Static Load Rating: 28.10 kN
• Block Type: Flange
• Load Type: Medium Load
• Block Mounting Type: From Top
