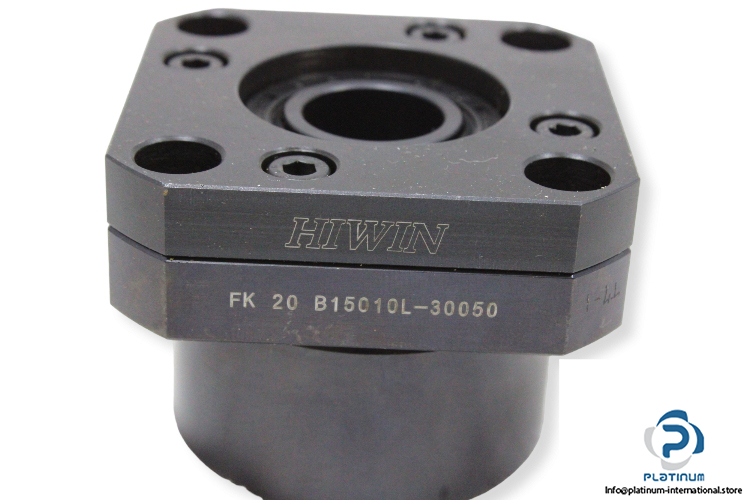

HIWIN FK 20 B15010L-30050 SUPPORT UNIT

The Hiwin FK Series support unit is engineered for high-precision linear motion systems. Designed with a 20 mm shaft diameter and integrated with 7204A angular-contact bearings, it provides superior axial load handling for ball screw applications in automation and CNC systems.

Manufacturer: Hiwin
Type: Support Unit FK Series
Model: FK 20 B15010L-30050

Technical Information

• Shaft Diameter: 20 mm

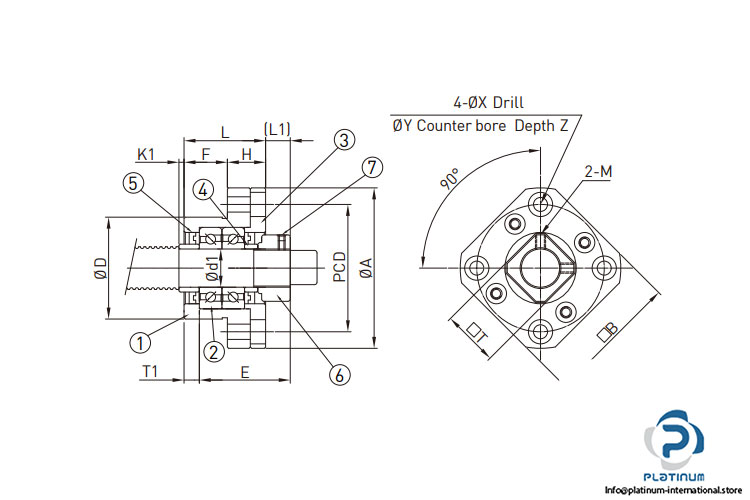

• Housing Dimensions:
• D: 57 mm
• L: 52 mm
• H: 22 mm
• B: 68 mm
• Suitable for Screw with Shaft Ends Shape H: Size 25“28
• Bearings Used: 7204A
• Dynamic Load Capacity Ca: 17.2 kN
• Axial Load Limit: 5.8 kN
