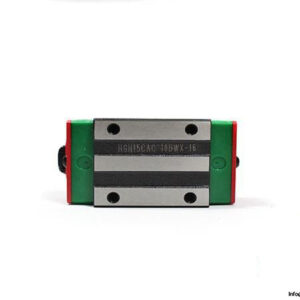

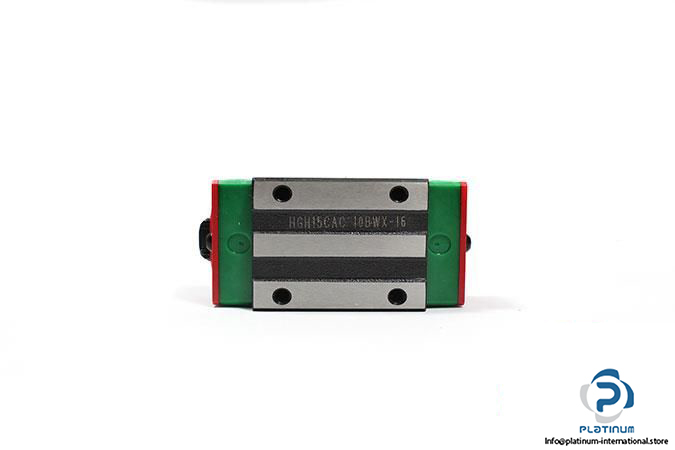

HIWIN HGH 15 CAC 10BWX-16 LINEAR GUIDEWAY BLOCK

This high-precision square-type linear guideway block from Hiwin is engineered for heavy load applications and smooth linear motion. Designed with a 15 mm size and top mounting, it ensures rigidity, accuracy, and stable performance for automation and machinery systems.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH 15 CAC 10BWX-16

Technical Information

• Size: 15 mm
• Block Height: 23.7 mm
• System Height H: 28 mm
• Block Width W: 34 mm
• Block Length L: 61.4 mm
• Thread Size: M4 x 16
• Distance Between Holes: 26 mm
• Rail Width: 15 mm
• Rail Height: 15 mm
• Block Type: Square
• Load Type: Heavy Load
• Block Mounting Type: From Top
• Precision Code: C
• Basic Dynamic Load Rating C: 14.7 kN
• Basic Static Load Rating C‚: 23.47 kN
