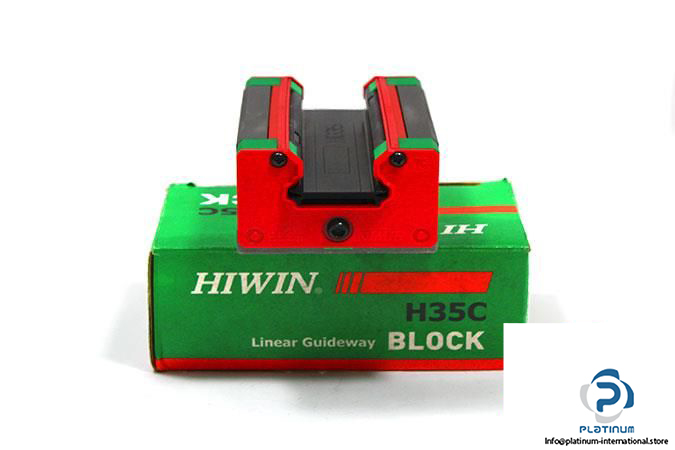

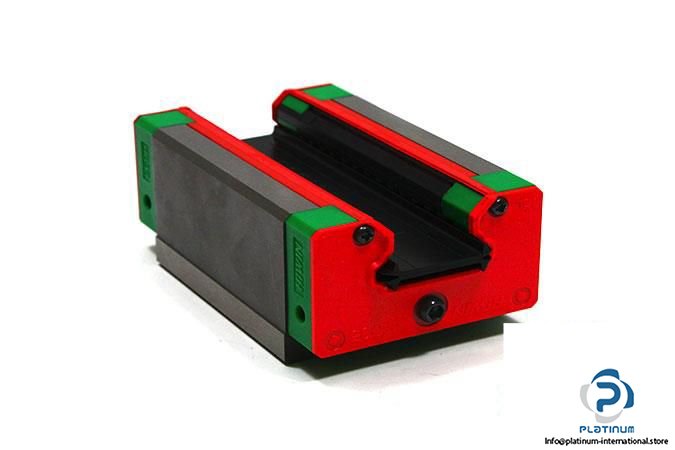

HIWIN HGH35CA 1903WZ-10300 LINEAR GUIDEWAY BLOCK

This high-precision square-type linear guideway block from Hiwin is engineered for heavy load applications requiring rigid support and smooth linear motion. Ideal for machine tools, automation systems, and demanding mechanical assemblies.

Manufacturer: Hiwin
Type: Linear Guideway Block

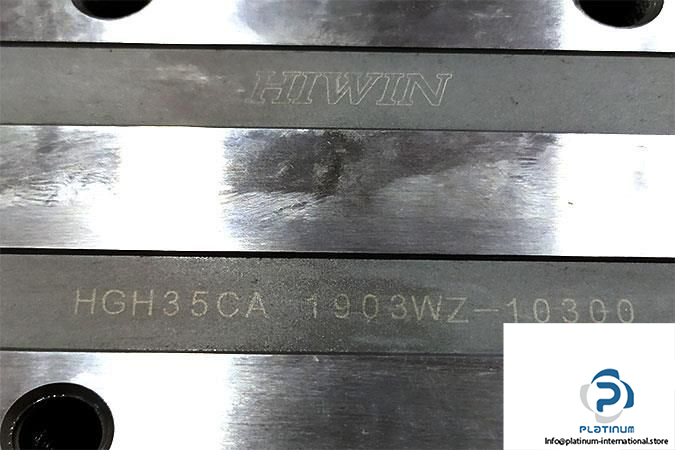

MNR: HGH35CA 1903WZ-10300

Technical Information

• Size: 35 mm
• Block Height: 47.5 mm
• System Height: 55 mm
• Block Width (W): 70 mm
• Block Length (L): 112.4 mm
• Thread Size: M8x12
• Distance Between Holes: 50, 50 mm
• Rail Width: 34 mm
• Rail Height: 29 mm
• Block Type: Square
• Load Type: Heavy load
• Block Mounting Type: From Top
• Preload Code: ZA
• Basic Dynamic Load Rating: 64.6 kN
• Basic Static Load Rating: 93.88 kN
