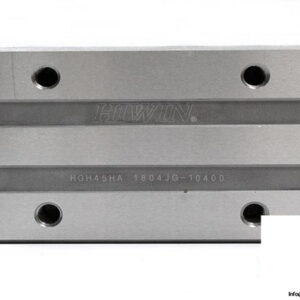

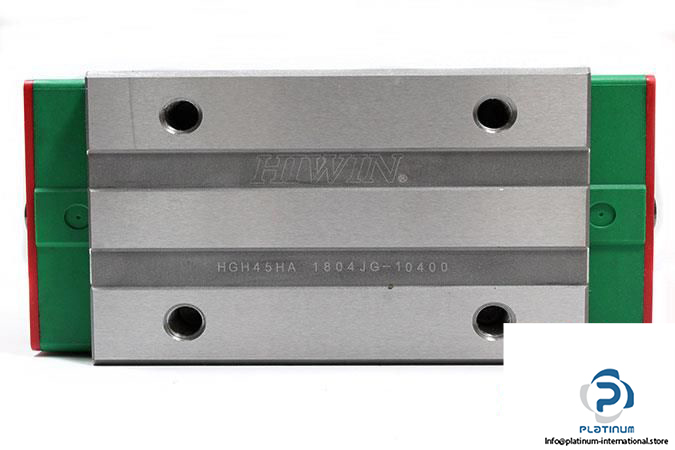

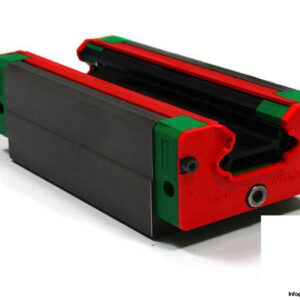

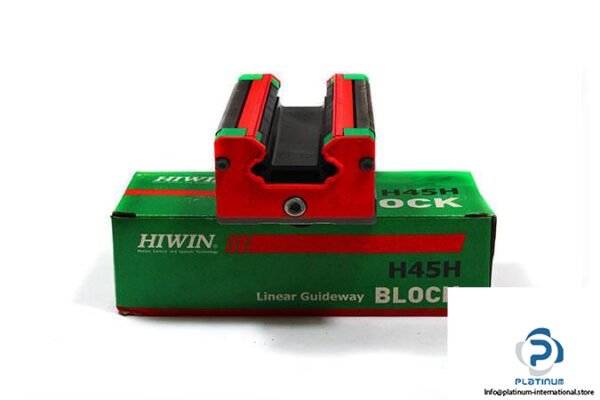

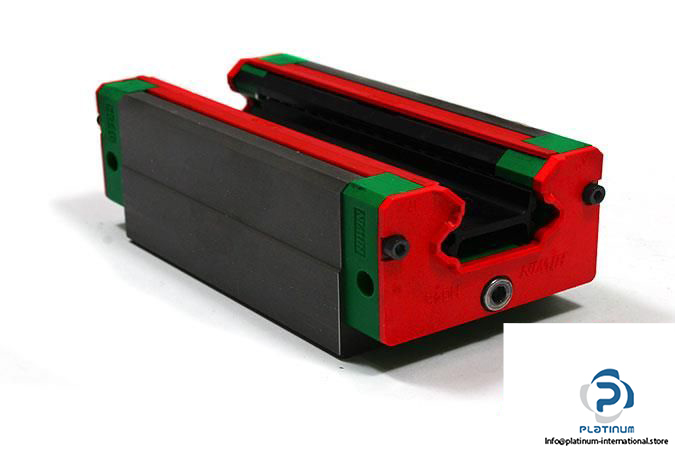

HIWIN HGH45HA 1804JG-10400 LINEAR GUIDEWAY BLOCK
Designed for precision and extreme load handling, this Hiwin square-type linear guideway block is ideal for demanding automation and motion control systems. It delivers superior rigidity, top-mounting convenience, and high load capacity in both dynamic and static conditions.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH45HA 1804JG-10400
Technical Information
- Size: 45 mm
- Block Height: 60.5 mm
- System Height: 70 mm
- Block Width (W): 86 mm
- Block Length (L): 171.2 mm
- Thread Size: M12 x 35
- Distance Between Holes: 60, 80 mm
- Rail Width: 45 mm
- Rail Height: 38 mm
- Block Type: Square
- Load Type: Super Heavy Load
- Block Mounting Type: From Top
- Basic Dynamic Load Rating: 125.3 kN
- Basic Static Load Rating: 191.85 kN
