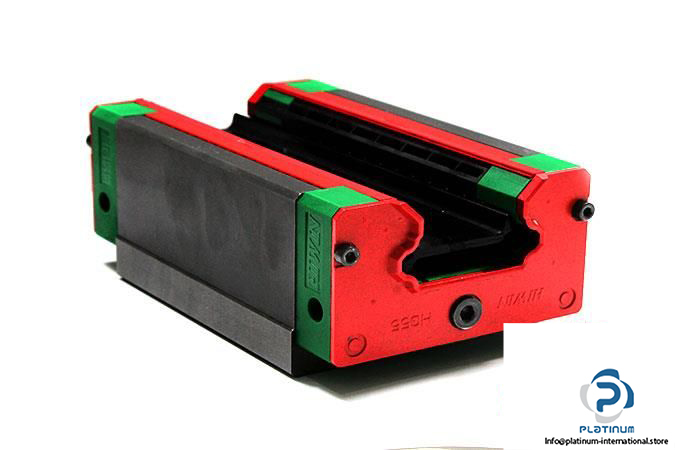

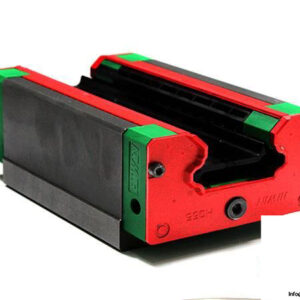

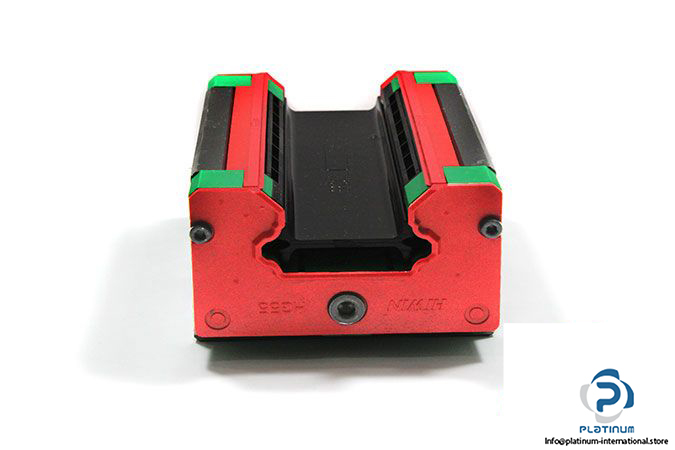

HIWIN HGH55CA LINEAR GUIDEWAY BLOCK
This high-load linear guideway block from Hiwin, part of the HG Series, is engineered for demanding industrial applications. With heavy load capacity and square-type construction, it ensures smooth, rigid linear motion performance across various mechanical systems.
Manufacturer: Hiwin
Type: Linear Guideway Block

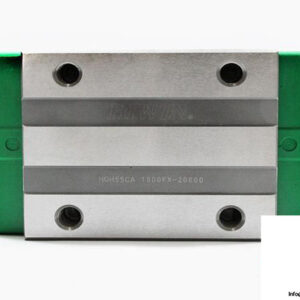

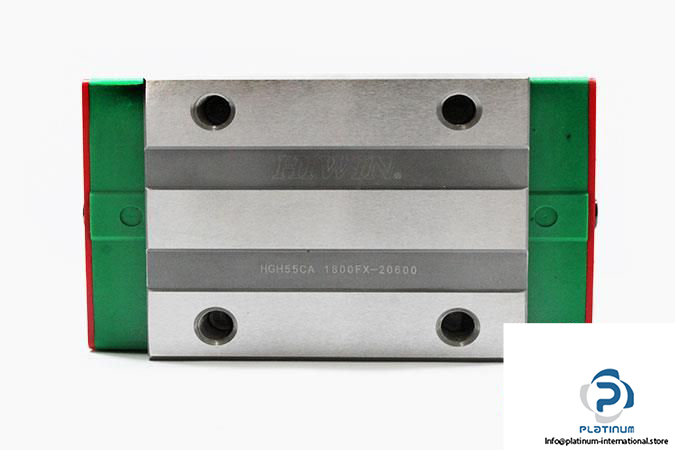

MNR: HGH55CA 1800FX-20600
Technical Information
- Size: 55 mm
- Block Height: 67 mm
- System Height: 80 mm
- Block Width (W): 100 mm
- Block Length (L): 166.7 mm
- Thread Size: M14 x 45
- Distance Between Holes: 75, 75 mm
- Rail Width: 53 mm
- Rail Height: 44 mm
- Block Type: H, Square
- Load Type: Heavy Load
- Block Mounting Type: From Top
- Series: HG Series; Heavy Load Ball Type Linear Guideway
- Basic Dynamic Load Rating: 153.2 kN
- Basic Static Load Rating: 211.23 kN
