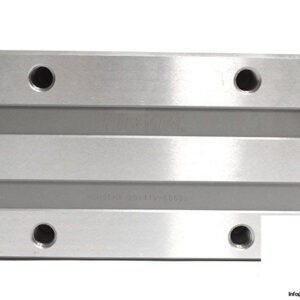

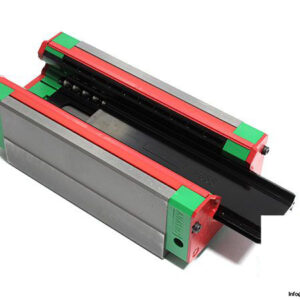

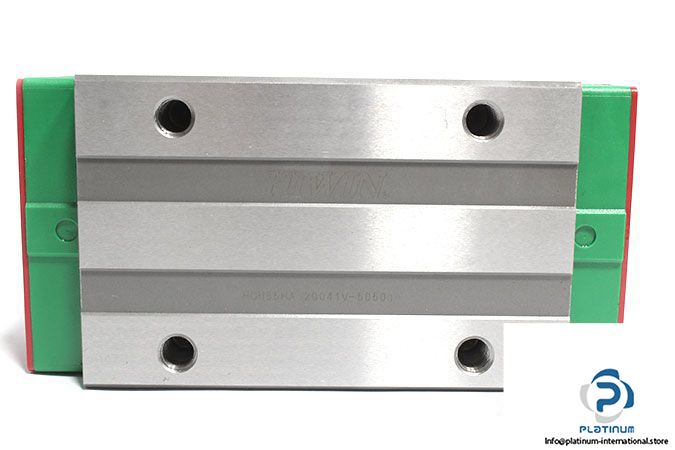

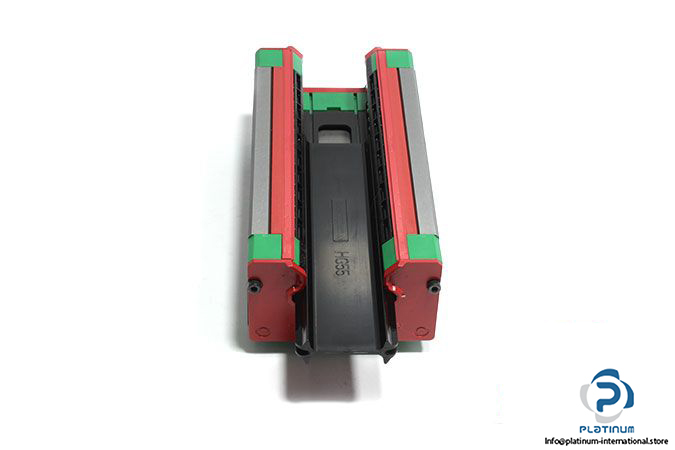

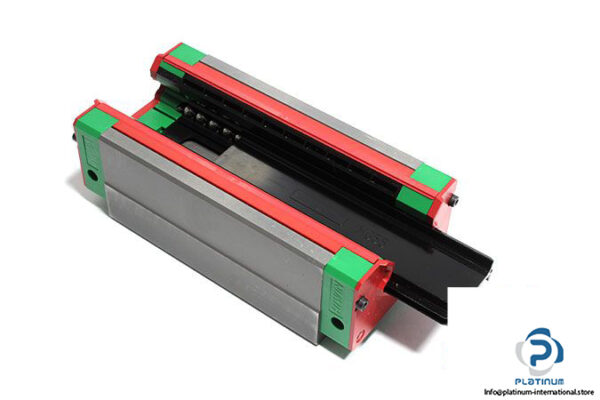

HIWIN HGH55HA 20041V-50500 LINEAR GUIDEWAY BLOCK

The Hiwin HGH55HA 20041V-50500 linear guideway block is a heavy-duty motion component engineered for precision and high-load industrial applications. Featuring a square block design and part of the HG series, it delivers high rigidity, stable motion, and long-term durability under super heavy load conditions.

Manufacturer: Hiwin
Type: Linear Guideway Block

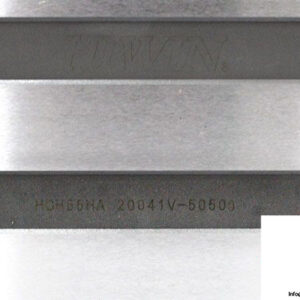

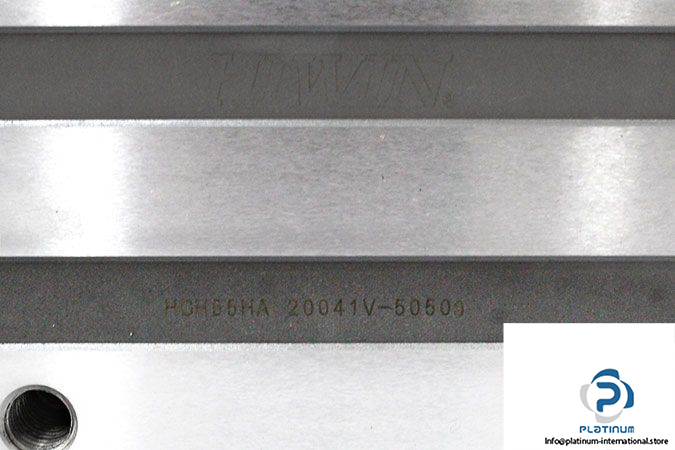

MNR: HGH55HA 20041V-50500

Technical Information

• Size: 55 mm
• Block Height: 67 mm
• System Height: 80 mm
• Block Width (W): 100 mm
• Block Length (L): 204.8 mm
• Thread Size: M14 × 45
• Distance Between Holes: 75, 95 mm
• Rail Width: 53 mm
• Rail Height: 44 mm
• Block Type: H, Square
• Load Type: H, Super Heavy Load
• Block Mounting Type: A; Mounting from Top
• Series: HG Series; Heavy Load Ball Type Linear Guideway
• Basic Dynamic Load Rating: 139.3 kN
• Basic Static Load Rating: 196.2 kN
