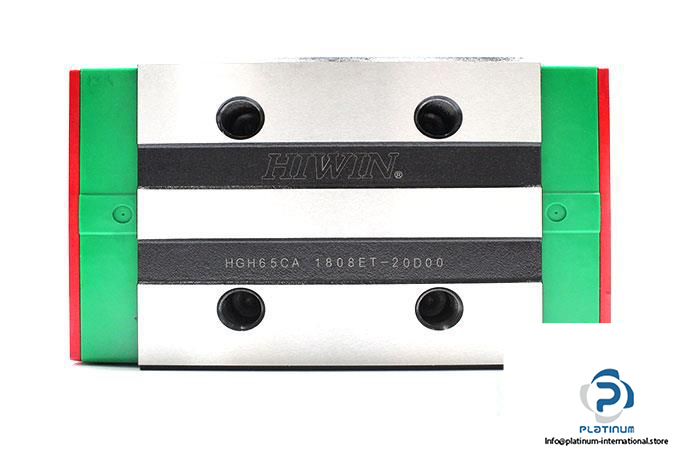

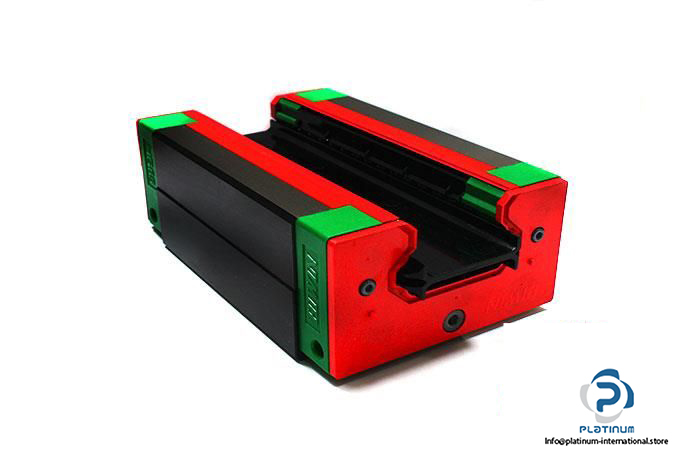

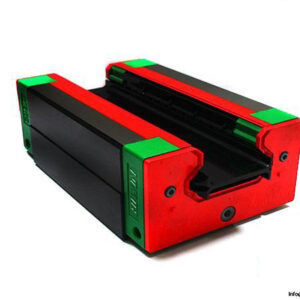

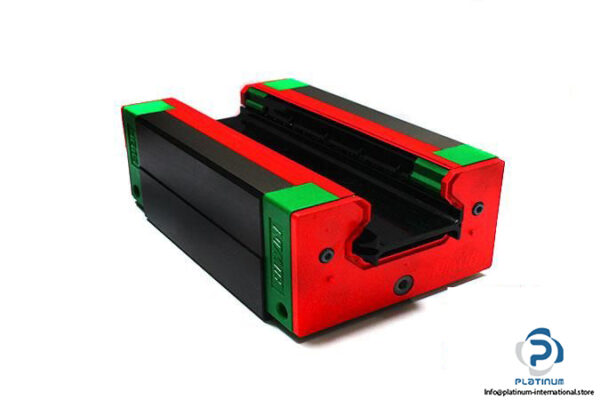

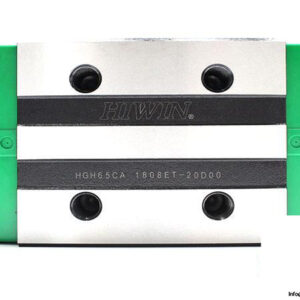

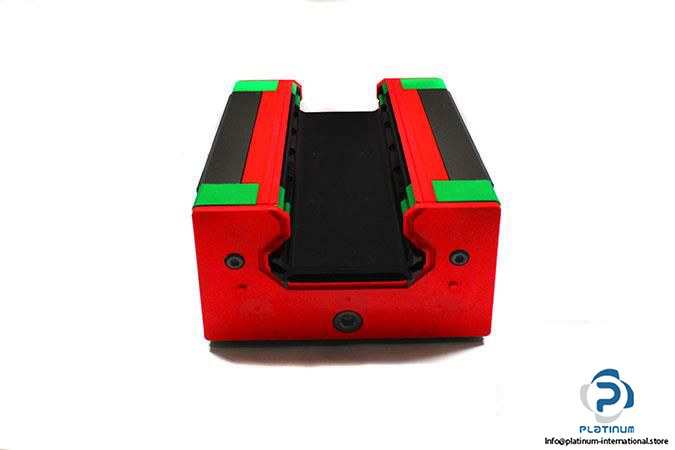

HIWIN HGH65CA 1808T-20D00 LINEAR GUIDEWAY BLOCK
The Hiwin HGH65CA 1808T-20D00 is a high-capacity linear guideway block from the HG Series, designed for demanding applications requiring precision guidance and heavy load support. Featuring a square block design and top mounting configuration, this block ensures optimal rigidity and performance in industrial automation and machinery systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH65CA 1808T-20D00
Technical Information
- Size: 65 mm
- Block Height: 75 mm
- System Height: 90 mm
- Block Width (W): 126 mm
- Block Length (L): 200.2 mm
- Thread Size: M16 x 50
- Distances Between Holes: 76 mm, 70 mm
- Rail Width: 63 mm
- Rail Height: 53 mm
- Block Type: Square
- Load Type: Heavy Load
- Block Mounting Type: From Top
- Series: HG Series; Heavy Load Ball Type Linear Guideway
- Basic Dynamic Load Rating: 213.2 kN
- Basic Static Load Rating: 287.48 kN
