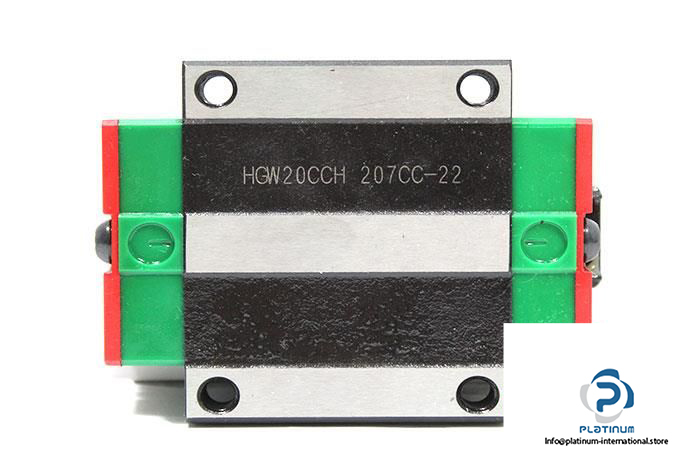

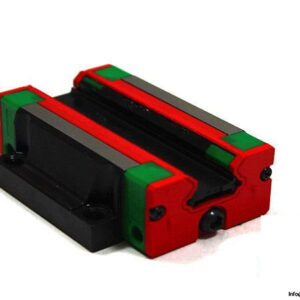

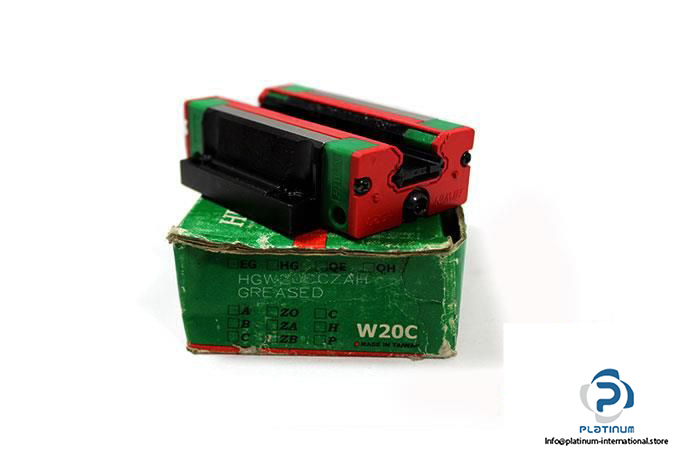

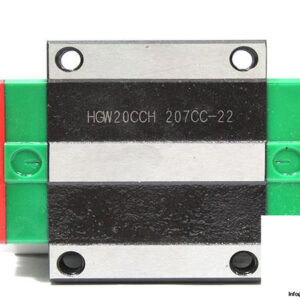

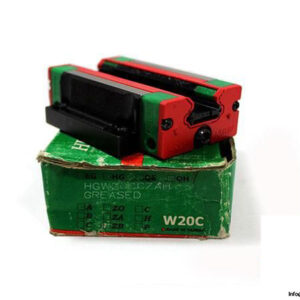

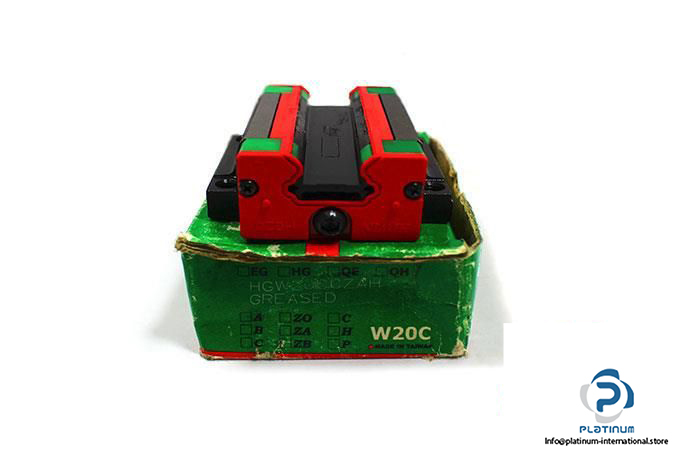

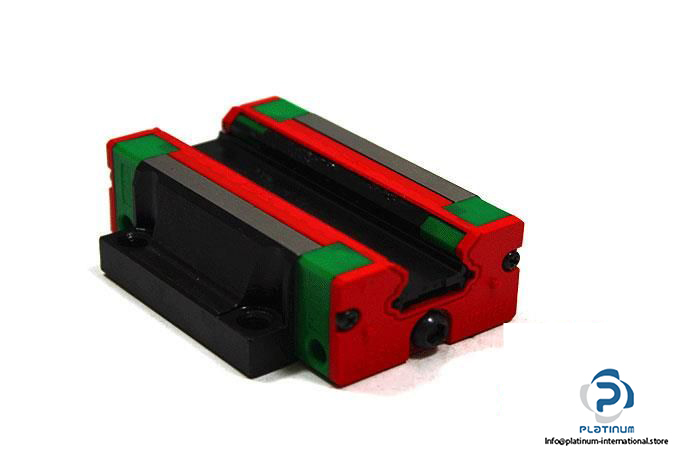

HIWIN HGW 20CCH 207CC-22 LINEAR GUIDEWAY BLOCK

The HGW 20CCH 207CC-22 linear guideway block from Hiwin is designed for heavy-load industrial motion systems requiring high rigidity, precision, and stability. With a 20 mm size and flange-type structure, it supports versatile top or bottom mounting, making it suitable for demanding linear guidance applications.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW 20CCH 207CC-22

Technical Information

• Size: 20 mm
• Total Height (H): 25.4 mm
• Block Width (W): 63 mm
• Block Length (L): 77.5 mm
• System Height: 30 mm
• Distance Between Holes: 53 mm, 40 mm
• Basic Dynamic Load Rating (C): 27.1 kN
• Basic Static Load Rating (C‚): 36.68 kN
• Rail Width: 20 mm
• Rail Height: 17.5 mm
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: Top or Bottom
