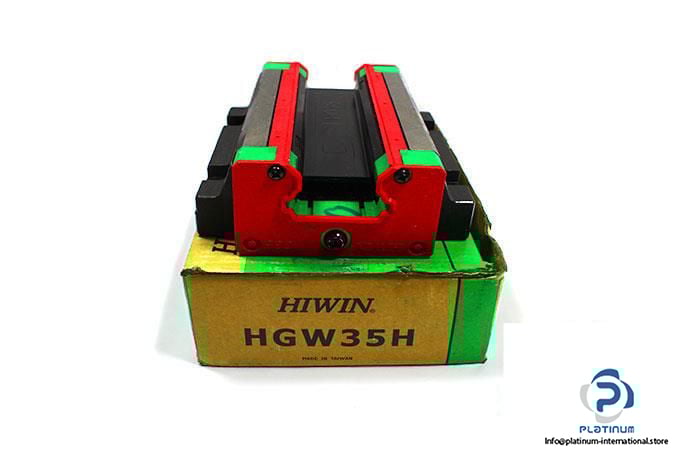

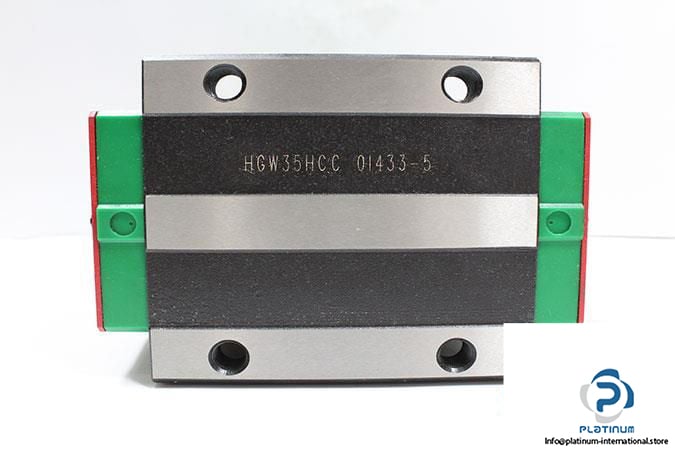

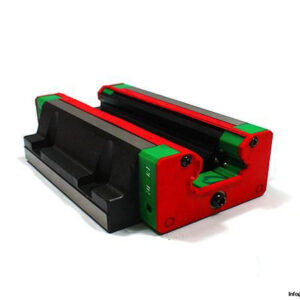

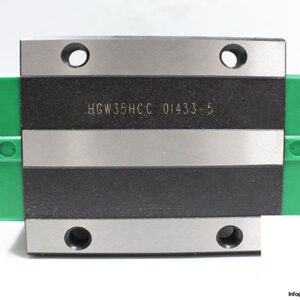

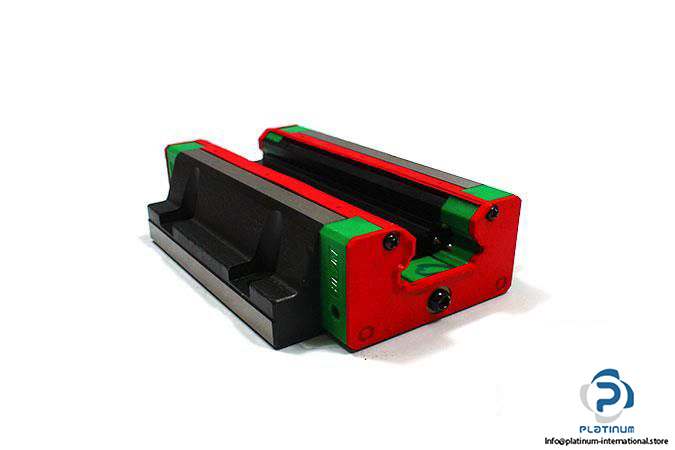

HIWIN HGW 35 HCC LINEAR GUIDEWAY BLOCK

The Hiwin HGW 35 HCC is a super heavy-load linear guideway block designed for high-performance motion systems. Featuring a flange-type structure, top or bottom mounting options, and precise load-bearing capabilities, it is ideal for demanding industrial automation and machine tools.

Manufacturer: Hiwin
Type: Linear Guideway Block HGW
MNR: HGW 35 HCC
Size: 35

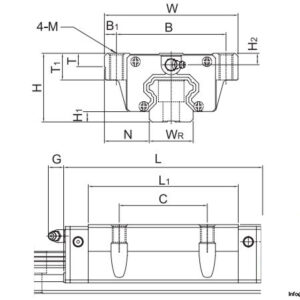

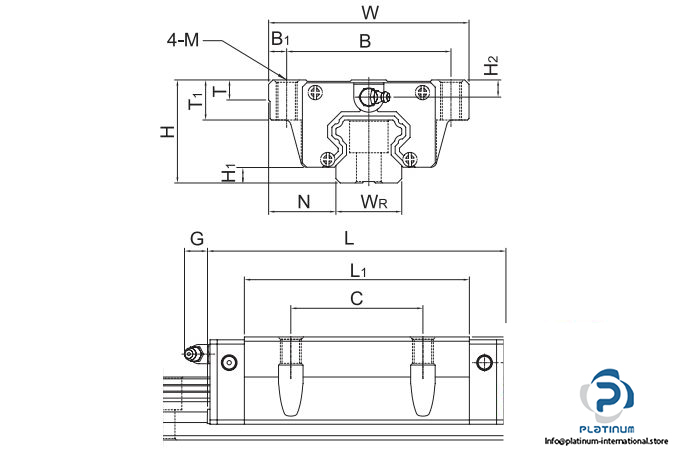

Technical Information

• Total Height H: 48 mm
• Block Width W: 100 mm
• Block Length L: 138.2 mm
• Block Height: 40.5 mm
• B: 82 mm
• C: 62 mm
• Block Type: Flange
• Load Type: Super Heavy Load
• Block Mounting Type: Top or Bottom
• Dynamic Load Rating (C): 77.9 kN
• Static Load Rating (C‚): 122.77 kN
