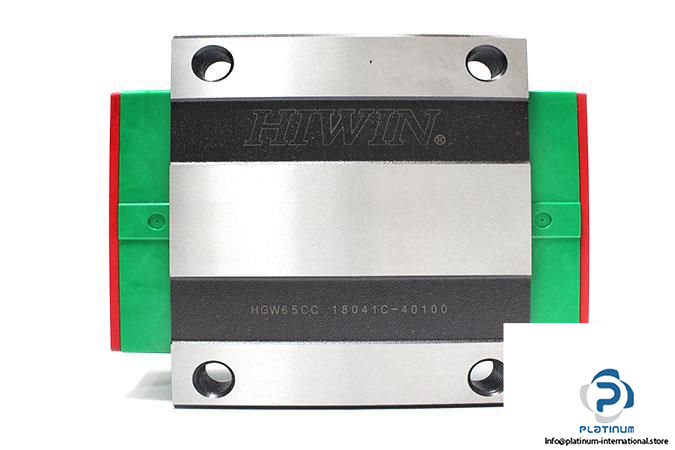

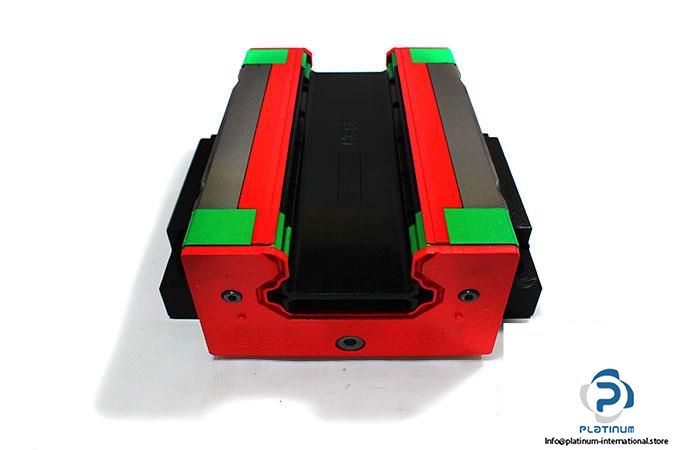

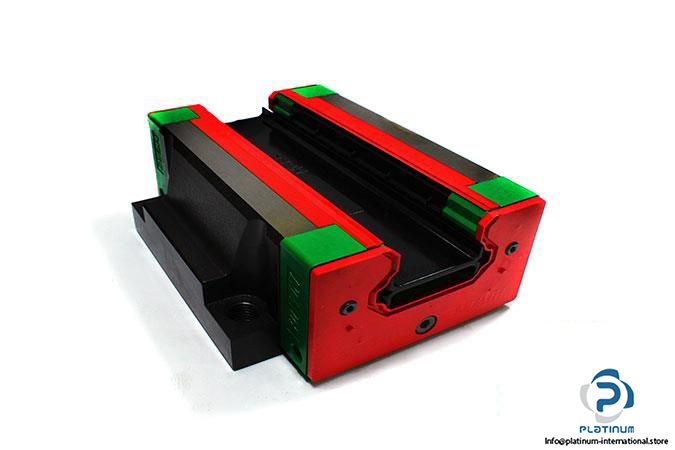

HIWIN HGW65CC LINEAR GUIDEWAY BLOCK

The Hiwin HGW65CC linear guideway block belongs to the HG Series, engineered for heavy-load industrial applications. Featuring a flange-type design and double mounting options, it ensures high rigidity and precision guidance across automation and motion systems.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW65CC 18041C-40100

Technical Information

• Series: HG Series; Heavy Load Ball Type Linear Guideway
• Size: 65 mm
• Block Height: 75 mm
• System Height: 90 mm
• Block Width (W): 170 mm
• Block Length (L): 200.2 mm
• Thread Size: M16 x 50
• Distance Between Holes: 142 mm, 110 mm
• Rail Width: 63 mm
• Rail Height: 53 mm
• Basic Dynamic Load Rating: 213.2 kN
• Basic Static Load Rating: 287.48 kN
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: Top or Bottom
