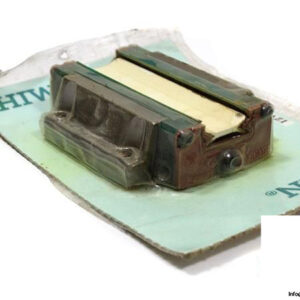

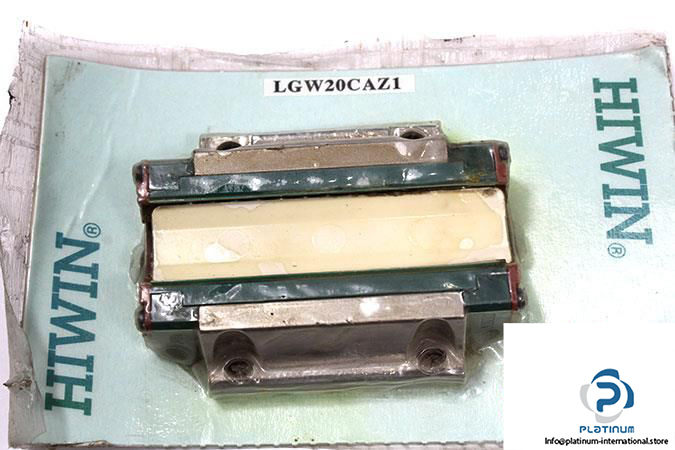

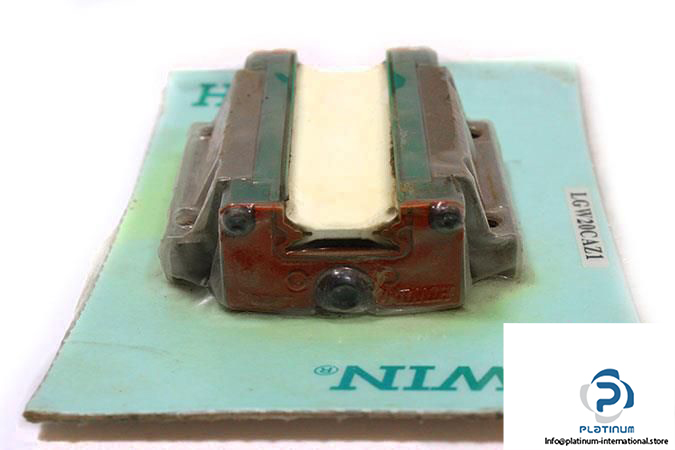

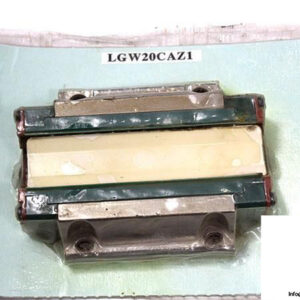

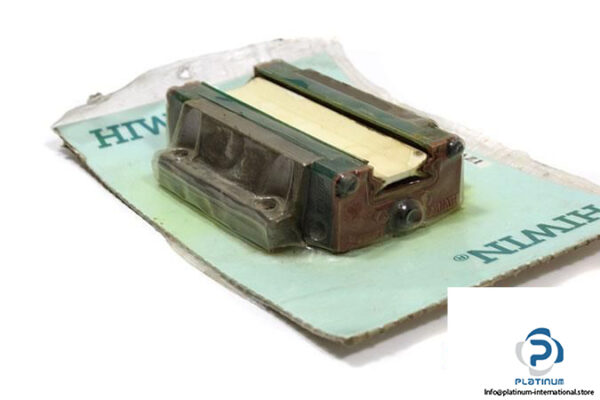

HIWIN LGW20CAZ1 LINEAR GUIDEWAY BLOCK

The Hiwin LGW20CAZ1 is a high-performance flange-type linear guideway block designed for precision motion applications under heavy load conditions. Engineered with high preload and robust build quality, it ensures stability, smooth linear travel, and extended service life.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: LGW20CAZ1

Technical Information

• Size: 20 mm
• Block Height: 25 mm
• System Height: 30 mm
• Block Width (W): 63 mm
• Block Length (L): 77.3 mm
• Thread Size: M5 x 16
• Rail Width: 20 mm
• Rail Height: 15 mm
• Distances Between Holes: 53 mm, 40 mm
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: From Above
• Preload Code: Z1
• Basic Dynamic Load Rating: 1650 kgf
• Basic Static Load Rating: 2670 kgf
