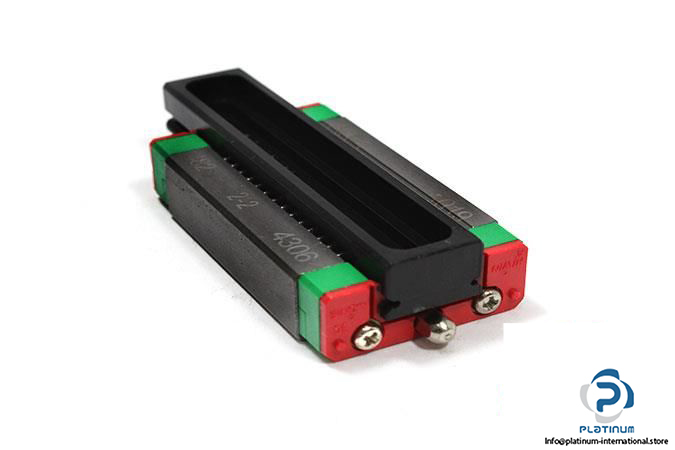

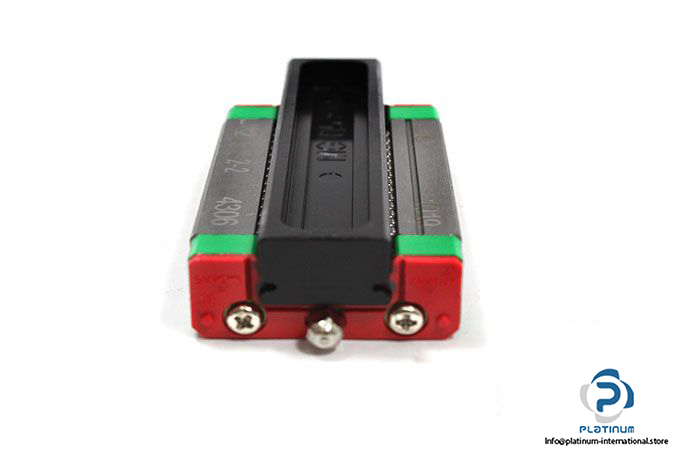

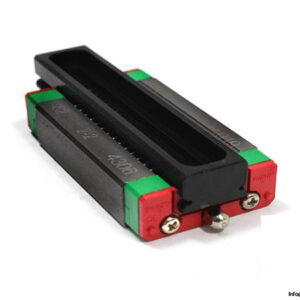

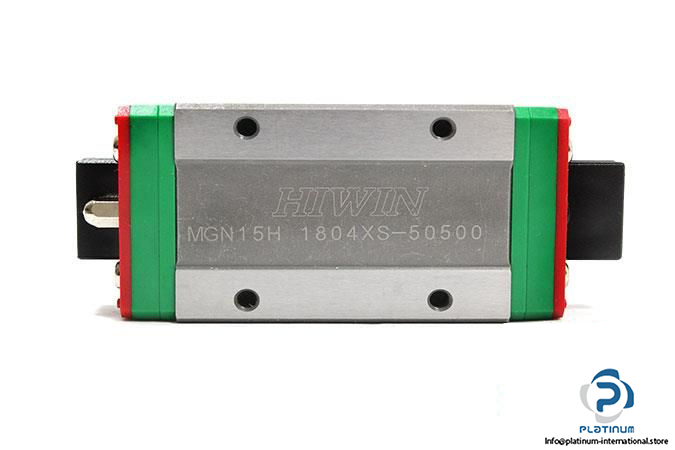

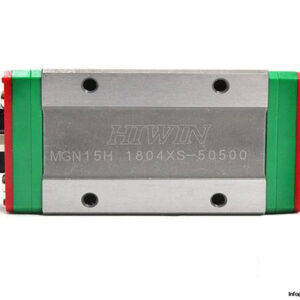

HIWIN MGN15H 1804XS-50500 LINEAR GUIDEWAY BLOCK

This long-type linear guideway block from Hiwin is engineered for high-precision motion control in compact systems. Designed with a 15 mm rail width and M3 mounting threads, it provides high load capacity and smooth travel, ideal for automation, CNC, and robotic applications.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGN15H 1804XS-50500
Size: 15 mm

Technical Information

• Block Height: 12 mm
• System Height: 16 mm
• Block Width (W): 32 mm
• Block Length (L): 58.8 mm
• Distance Between Holes: 25 mm, 25 mm
• Thread Size: M3 x 10
• Rail Width: 15 mm
• Rail Height: 10 mm
• Block Type: Long
• Basic Dynamic Load Rating: 6.37 kN
• Basic Static Load Rating: 9.11 kN
