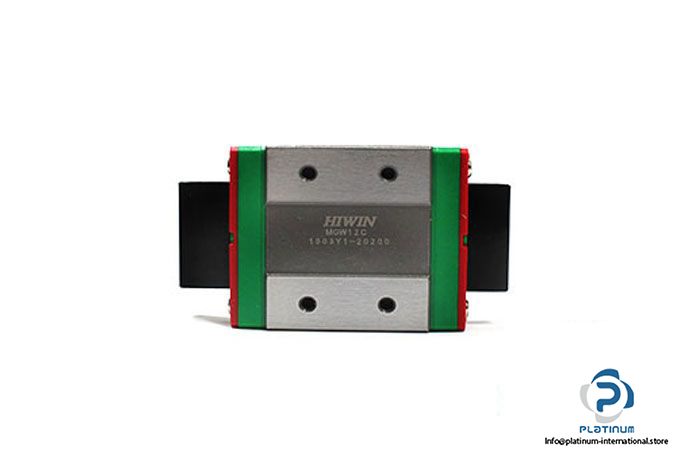

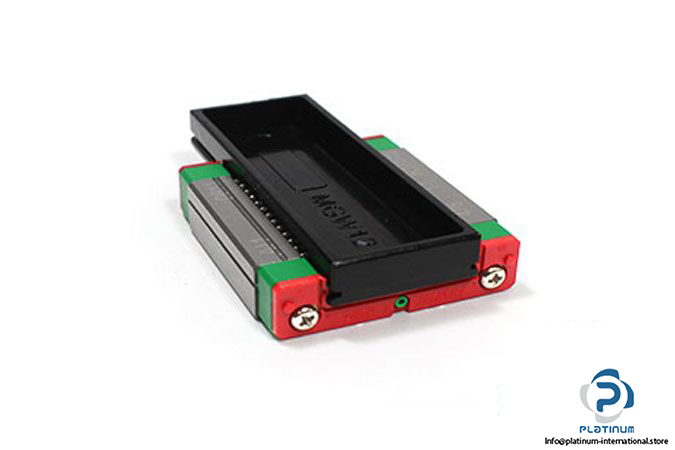

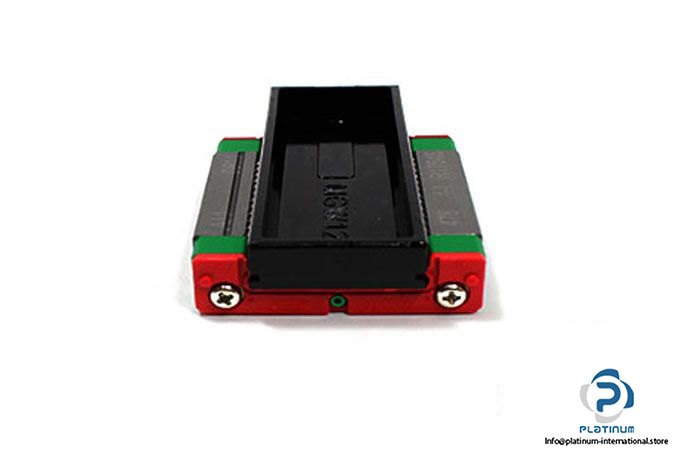

HIWIN MGW12C LINEAR GUIDEWAY BLOCK
The MGW12C linear guideway block from Hiwin is a compact and durable solution for smooth linear motion in industrial and automation systems. Designed for precise load handling in tight spaces, it delivers excellent performance with high static and dynamic load capacities.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGW12C 1903Y1-20200
Size: 12 mm
Technical Information
- Block Type: Standard
- Block Height: 10.6 mm
- Block Width: 40 mm
- Block Length: 46.1 mm
- System Height: 14 mm
- Distance Between Holes: 28 mm, 15 mm
- Thread Size: M4 x 8
- Basic Dynamic Load Rating: 3.92 kN
- Basic Static Load Rating: 5.59 kN
- Rail Width: 24 mm
- Rail Height: 8.5 mm
