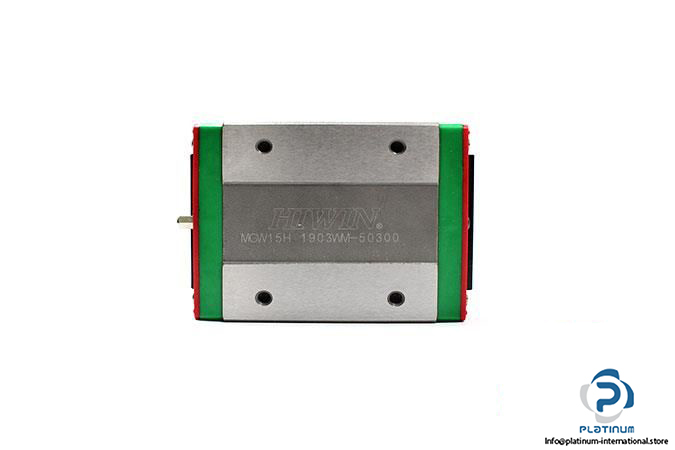

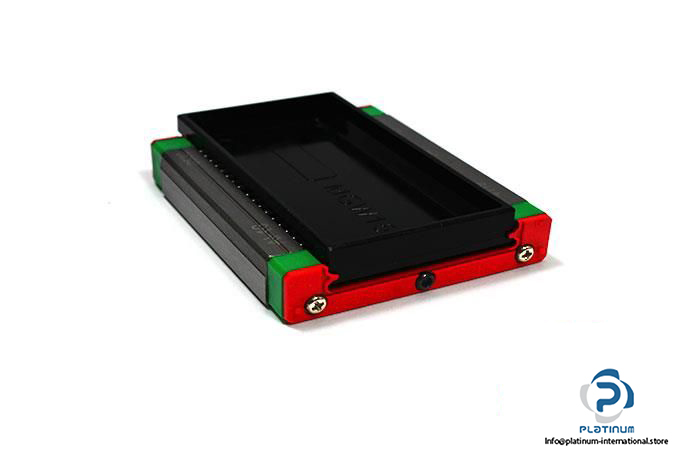

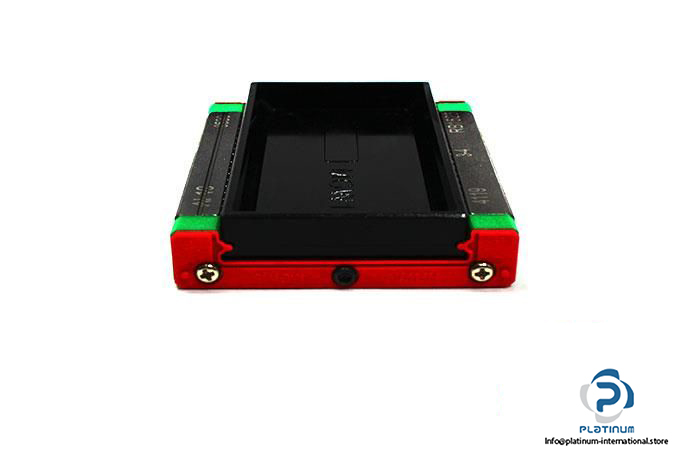

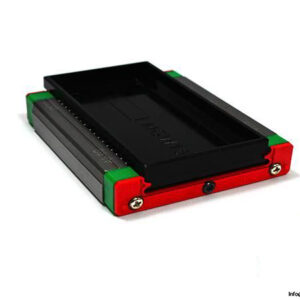

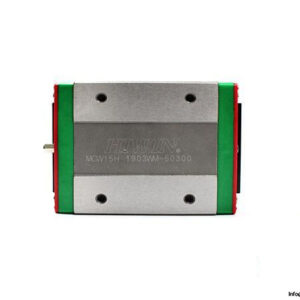

HIWIN MGW15H LINEAR GUIDEWAY BLOCK

The Hiwin MGW15H linear guideway block is engineered for high-precision motion systems requiring compact size, smooth linear travel, and high load capacity. This long-type block is suitable for industrial automation and demanding guide rail configurations.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGW15H 1903WM-50300
Size: 15 mm

Technical Information

• Block Height: 12.6 mm
• System Height: 16 mm
• Block Width (W): 60 mm
• Block Length (L): 73.8 mm
• Distance Between Holes: 45 mm, 35 mm
• Thread Size: M4 × 10
• Rail Width: 42 mm
• Rail Height: 9.5 mm
• Block Type: Long
• Basic Dynamic Load Rating: 8.93 kN
• Basic Static Load Rating: 13.38 kN
