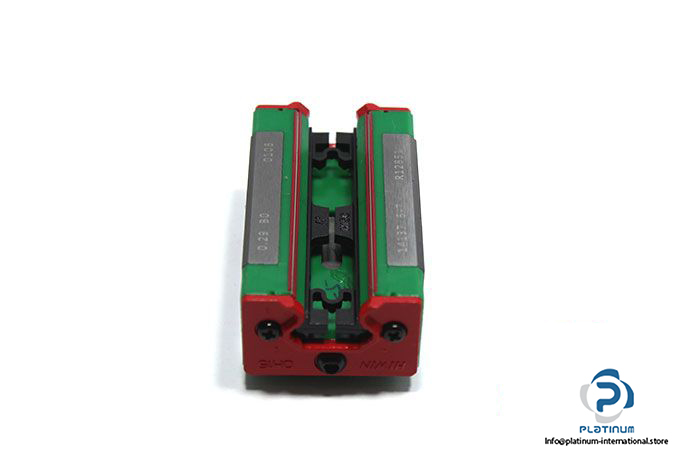

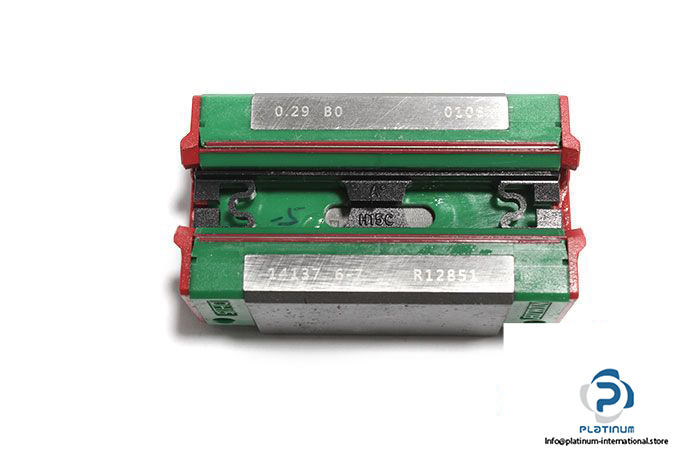

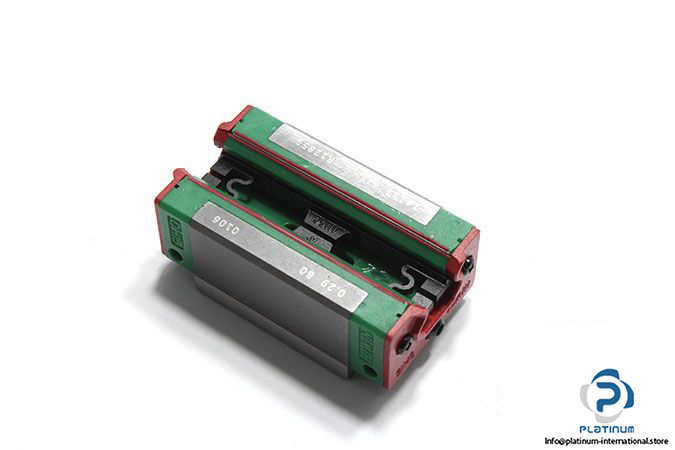

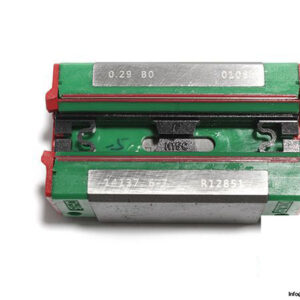

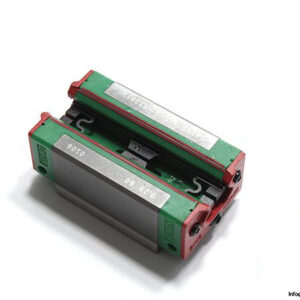

HIWIN QHH15CA LINEAR GUIDEWAY BLOCK

The Hiwin QHH15CA is a high-performance linear guideway block designed for demanding motion systems. With a square heavy-load block profile and top-mounting configuration, it provides excellent rigidity and precise linear movement in compact machinery setups.

Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHH15CA

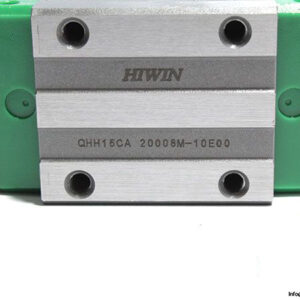

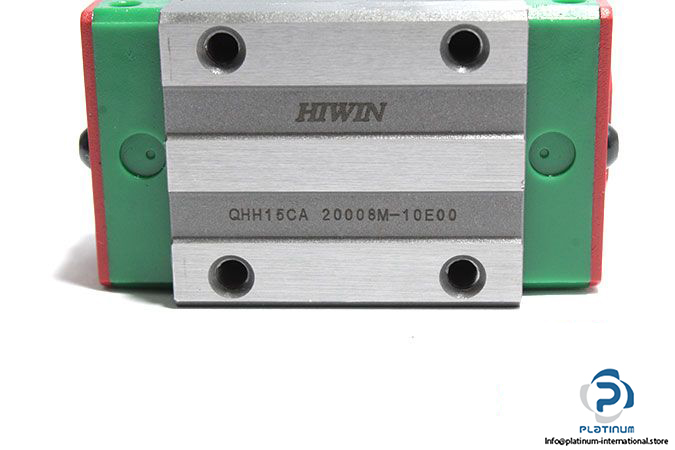

MRN: QHH15CA 20008M-10E00

Technical Information

• Size: 15 mm
• Total Height H: 28 mm
• Block Width W: 34 mm
• Block Length L: 61.4 mm
• Block Height: 24 mm
• Distances Between Holes: 26, 26 mm
• Basic Load Rating, Dynamic Cr: 17.94 kN
• Basic Load Rating, Static C‚r: 19.86 kN
• Block Type: H; Square Type
• Load Type: C; Heavy Load
• Block Mounting Type: A; Mounting from Top
