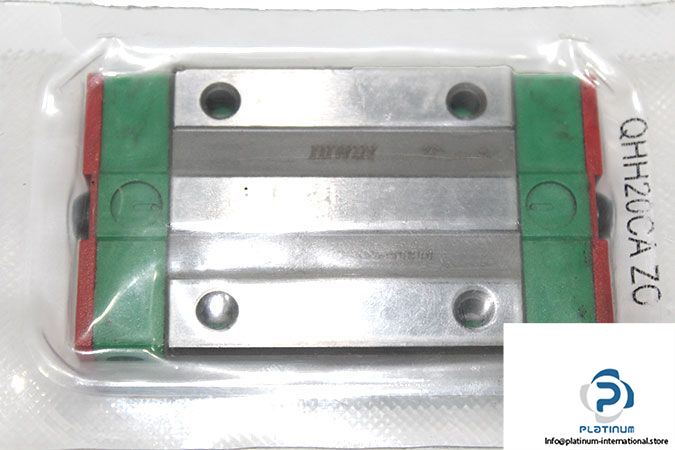

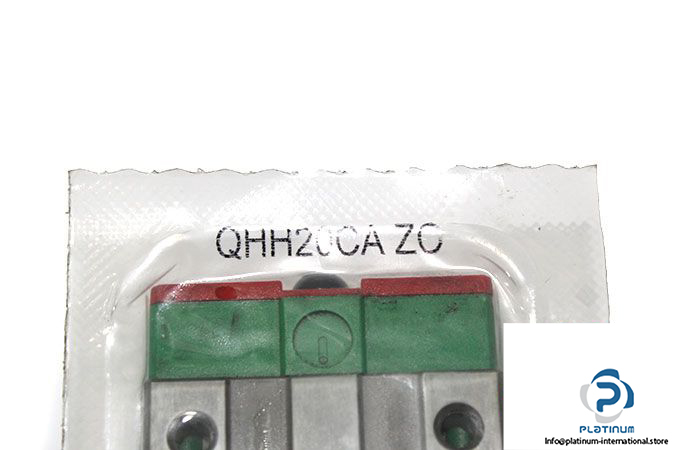

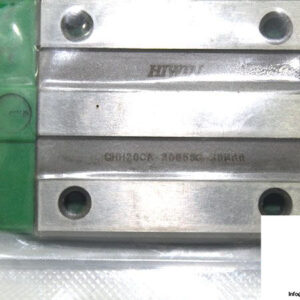

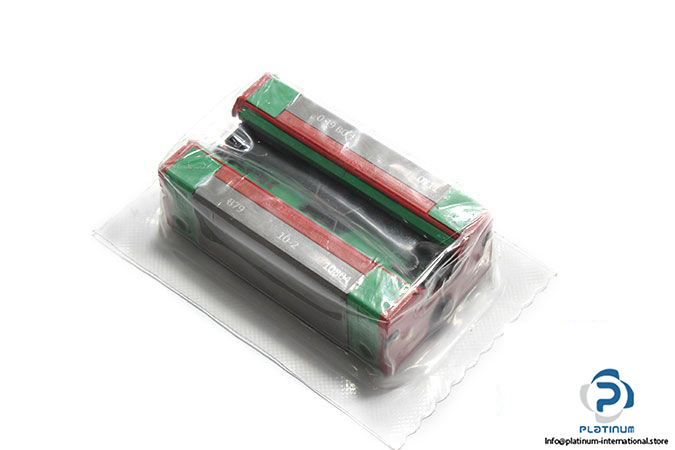

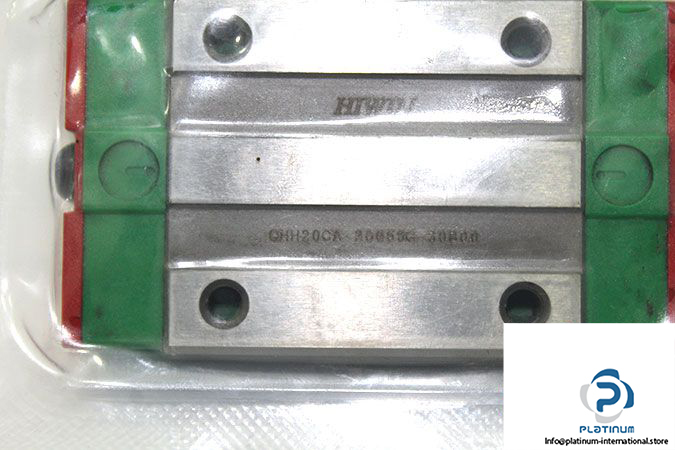

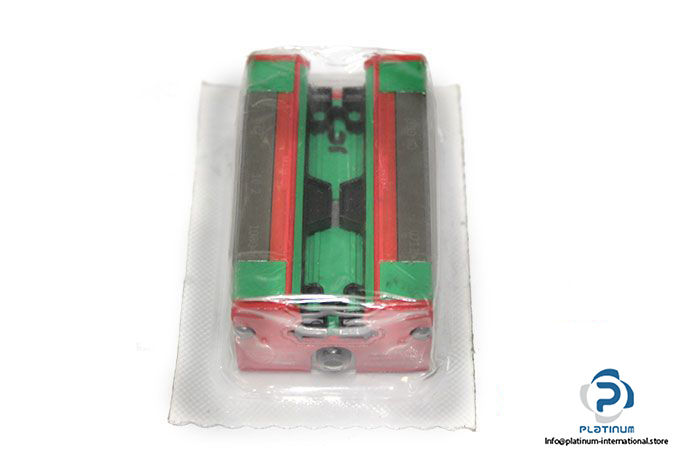

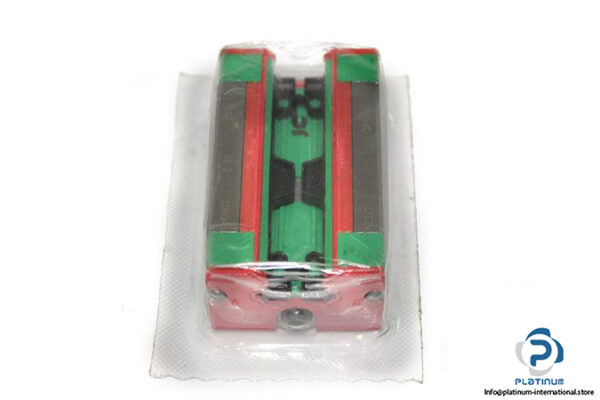

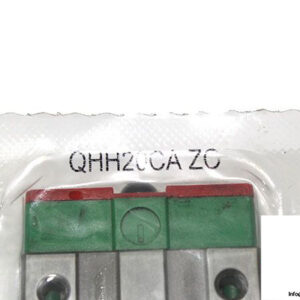

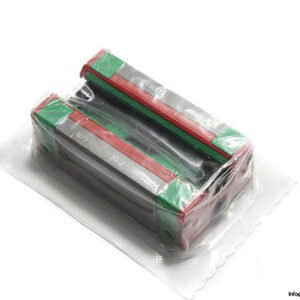

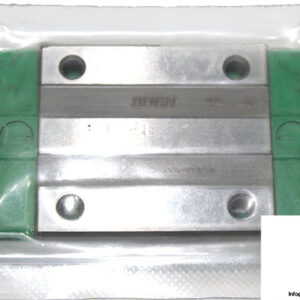

HIWIN QHH20CA LINEAR GUIDEWAY BLOCK

The Hiwin QHH20CA is a heavy-load linear guideway block designed for precise motion control in demanding industrial applications. With square-type geometry and top-mount design, it offers high rigidity, excellent load capacity, and reliable linear guidance.

Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHH20CA
MRN: QHH20CA 200592-30B00

Technical Information

• Size: 20 mm
• Total Height H: 30 mm
• Block Width W: 44 mm
• Block Length L: 76.7 mm
• Block Height: 25.4 mm
• Distance Between Holes: 32 mm, 36 mm
• Basic Load Rating, Dynamic Cr: 30 kN
• Basic Load Rating, Static C‚r: 33.86 kN
• Block Type: H (Square Type)
• Load Type: C (Heavy Load)
• Block Mounting: A (Mounting from Top)
