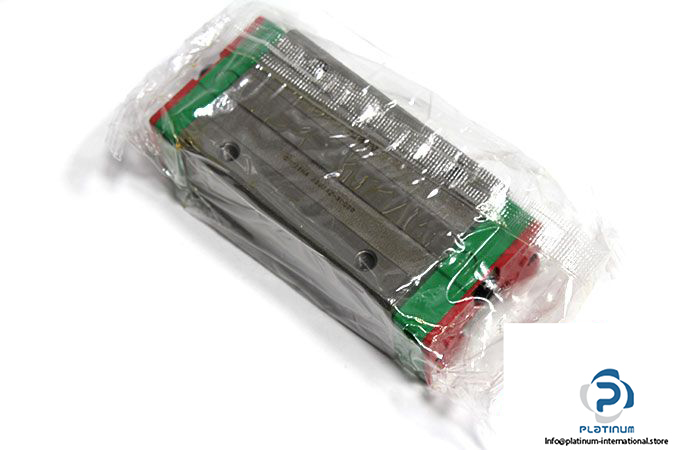

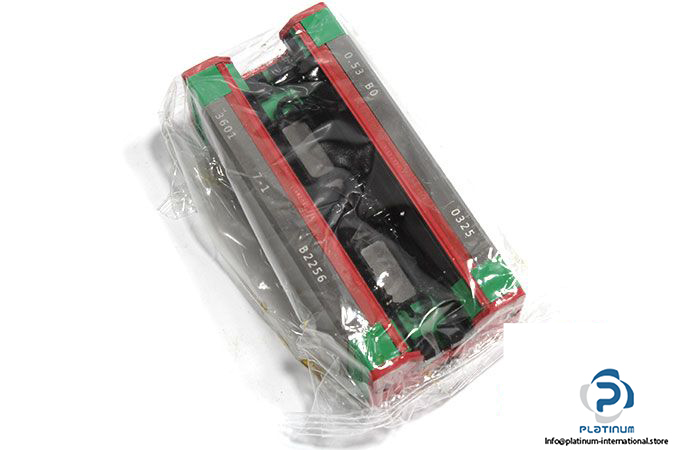

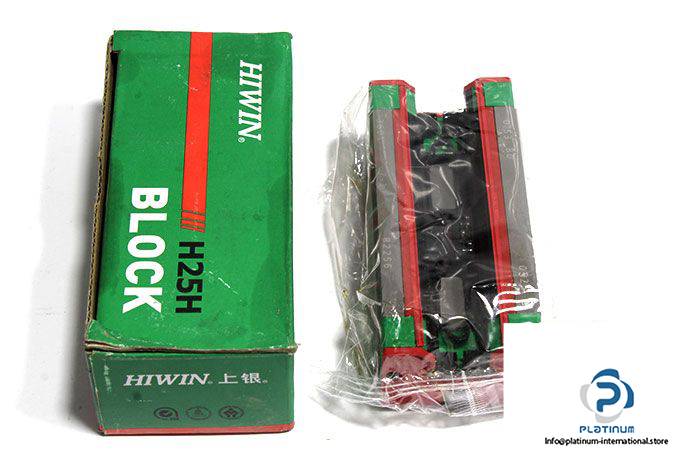

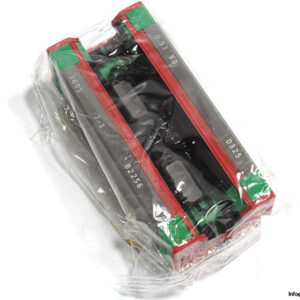

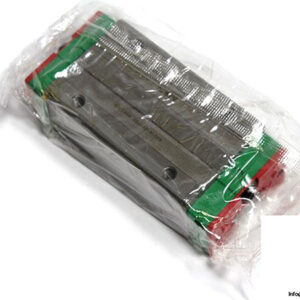

HIWIN QHH25HA LINEAR GUIDEWAY BLOCK
This high-performance linear guideway block from Hiwin is designed for super heavy load applications, offering advanced motion control with SynchMotion„¢ technology. Part of the QH Series, it features a square block design with high rigidity and smooth, silent operation”ideal for demanding linear motion systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHH25HA

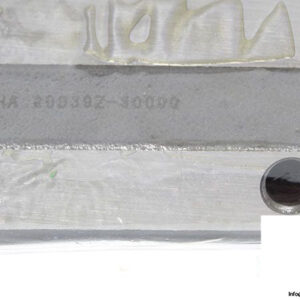

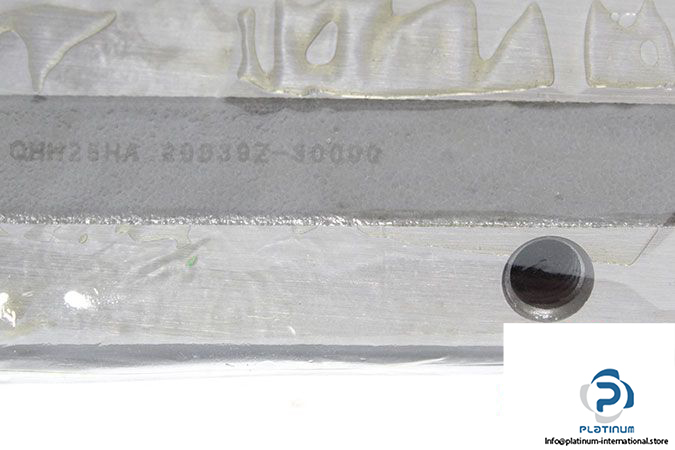

MRN: QHH25HA 200421-60100
Technical Information
- Size: 25 mm
- Total Height H: 40 mm
- Block Width W: 48 mm
- Block Length L: 104 mm
- Block Height: 34.5 mm
- Distance Between Holes: 35 mm, 50 mm
- Basic Load Ratings, Linear:
– Dynamic Cr: 50.6 kN
– Static C0r: 60.9 kN - Series: QH Series; Heavy Load Type Linear Guideway, with SynchMotion Technology
- Block Type: H; Square Type
- Load Type: H; Super Heavy Load
- Block Mounting Type: A; Mounting from Top
