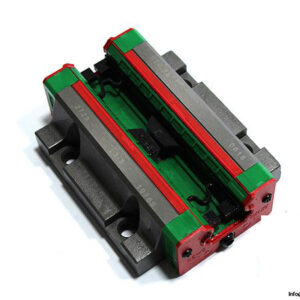

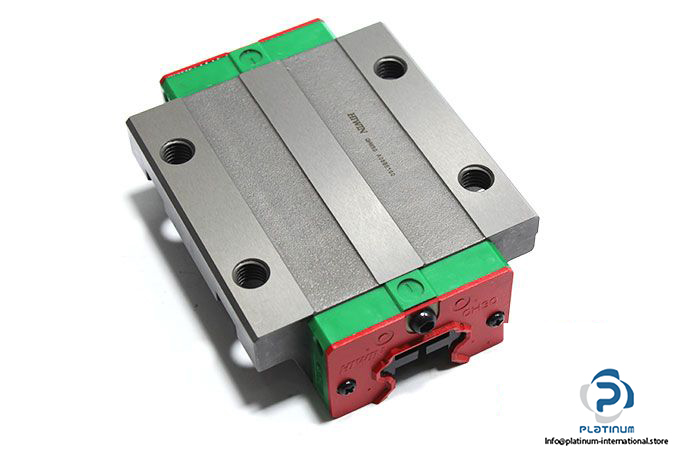

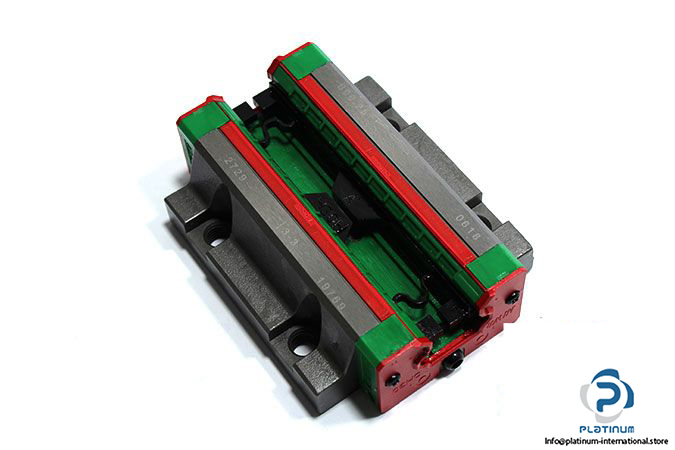

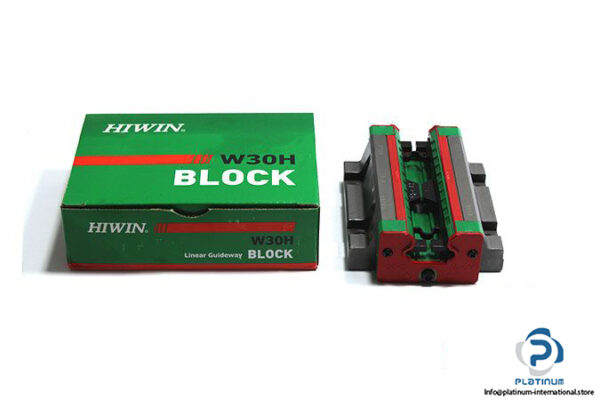

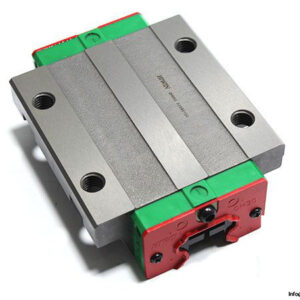

HIWIN QHW30HC LINEAR GUIDEWAY BLOCK
The Hiwin QHW30HC is a heavy-load, square-type linear guideway block from the QH Series, engineered with SynchMotion Technology for smooth movement, reduced friction, and precise load distribution. Ideal for demanding automation and motion systems requiring consistent linear accuracy and long service life.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHW30HC

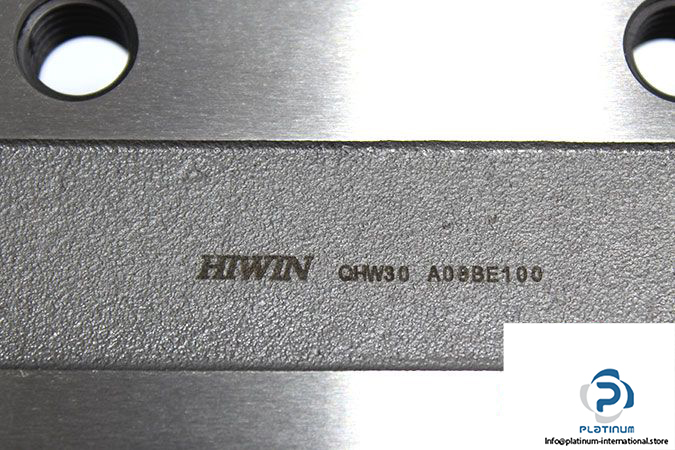

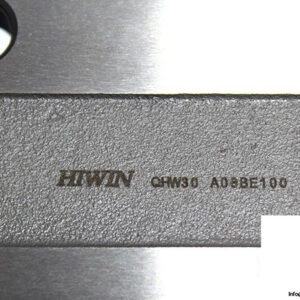

MRN: QHW30 A08BE100
Technical Information
- Size: 30 mm
- Total Height (H): 42 mm
- Block Width (W): 90 mm
- Block Length (L): 120.4 mm
- Block Height: 36 mm
- Distance Between Holes: 72 mm, 52 mm
- Basic Load Ratings, Linear:
- Dynamic Cr: 56.7 kN
- Static C‚r: 65 kN
- Series: QH Series; Heavy Load Type with SynchMotion Technology
- Block Type: H (Square Type)
- Load Type: C (Heavy Load)
