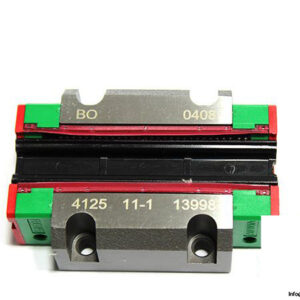

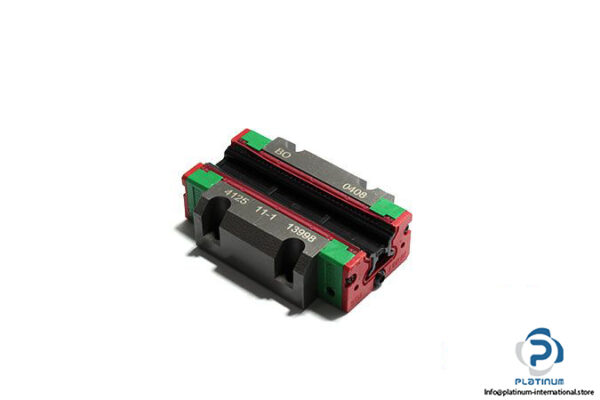

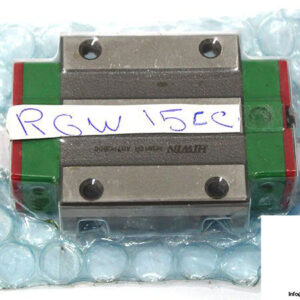

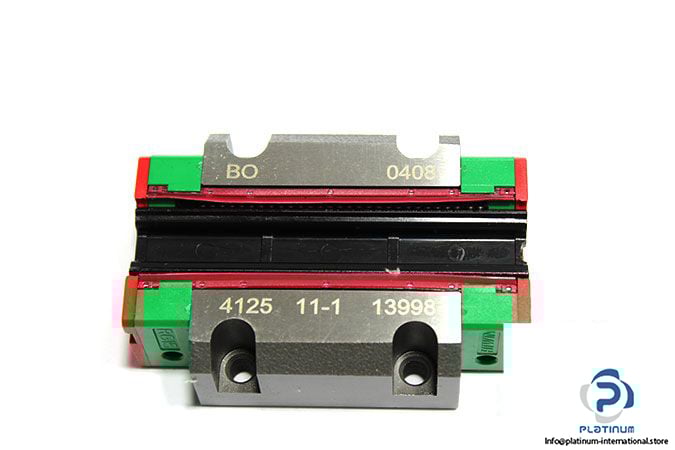

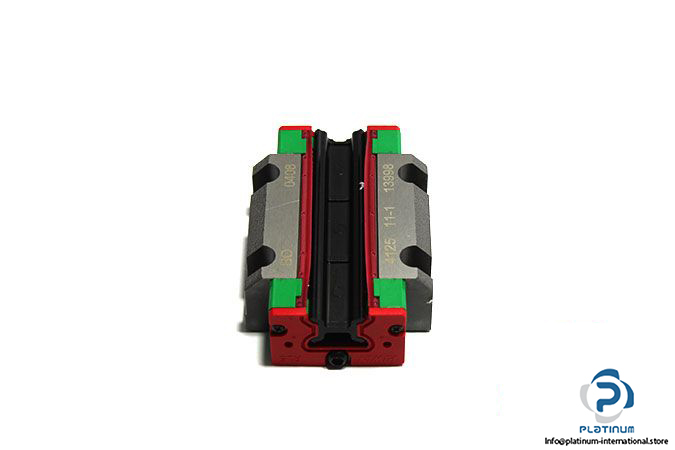

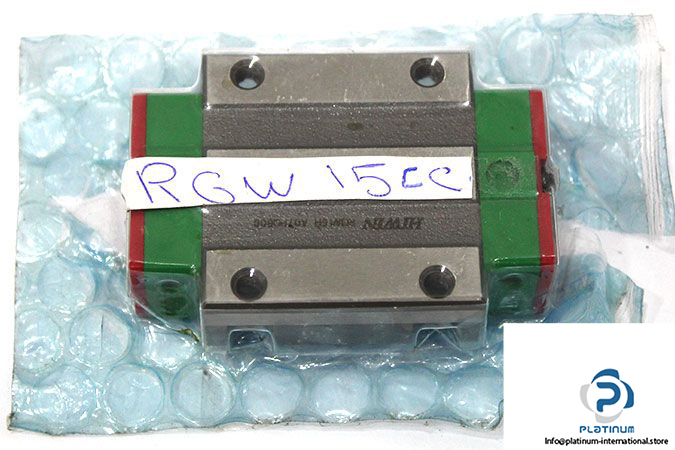

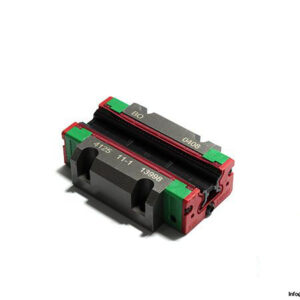

HIWIN RGW15CC LINEAR GUIDEWAY BLOCK
The RGW15CC from Hiwin is a high-rigidity flange-type linear guideway block designed for heavy-load precision motion systems. Belonging to the RG series, it features a roller-type construction ideal for applications demanding accuracy, high load capacity, and long service life.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: RGW15CC

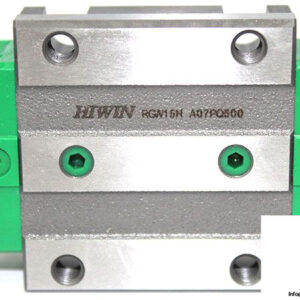

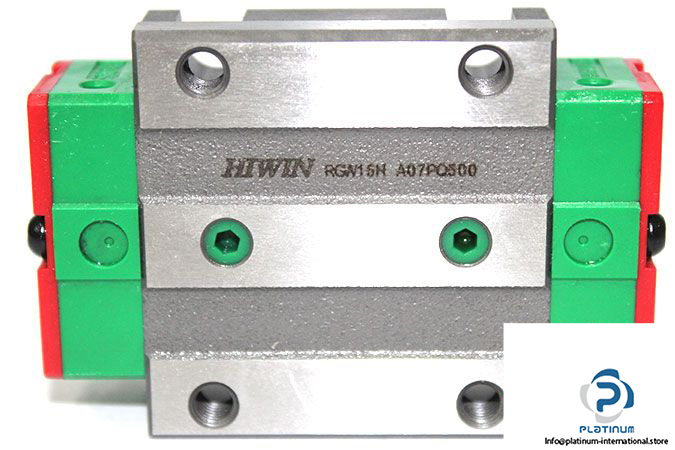

MRN: RGW15H A07PQ500
Technical Information
- Size: 15 mm
- Total Height (H): 24 mm
- Block Width (W): 47 mm
- Block Length (L): 68 mm
- Block Height: 28 mm
- Distances Between Side Holes: 38 mm, 30 mm
- Distance Between Middle Holes: 26 mm
- Basic Load Ratings:
- Dynamic Cr: 11.3 kN
- Static C0r: 24 kN
- Series: RG Series (High Rigidity Roller Type Linear Guideway)
- Block Type: W (Flange Type)
- Load Type: C (Heavy Load)
