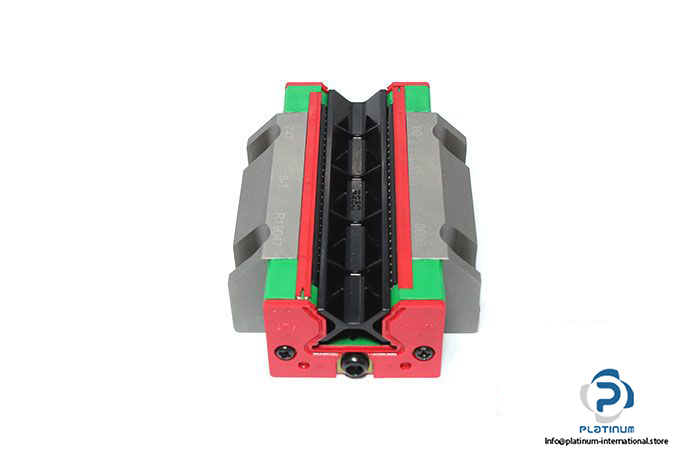

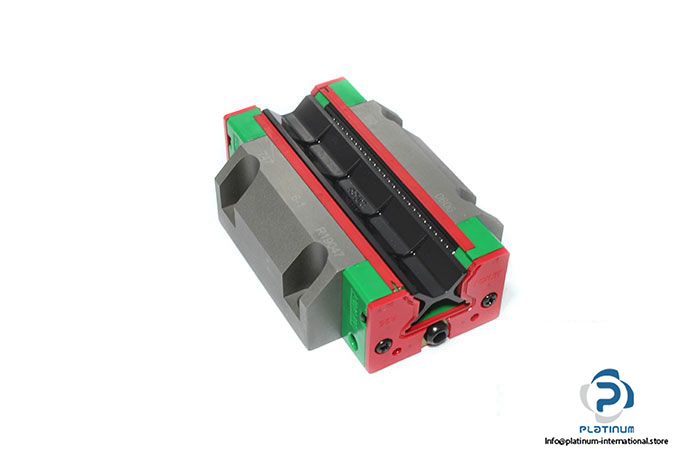

HIWIN RGW 25CC LINEAR GUIDEWAY BLOCK

The Hiwin RGW 25CC is a heavy-load linear guideway block featuring roller-type motion for high rigidity and precision. Designed for demanding industrial applications, it supports both top and bottom mounting with a flange-style structure, delivering enhanced load-bearing capacity and accuracy.

Manufacturer: Hiwin
Type: Linear Guideway Block Roller Type
Model: RGW 25CC

Technical Information

• Size: 25 mm
• Total Height H: 36 mm
• Block Width W: 70 mm
• Block Length L: 97.9 mm
• Block Height: 30.5 mm
• Thread Size: M8
• Distances Between Holes: 57 mm, 45 mm
• Basic Dynamic Load Rating C: 27.7 kN
• Basic Static Load Rating C‚: 57.1 kN
• Rail Width: 23 mm
• Rail Height: 23.6 mm
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: Top or Bottom
