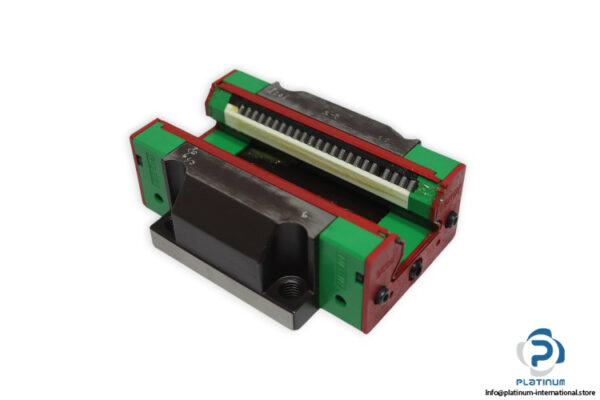

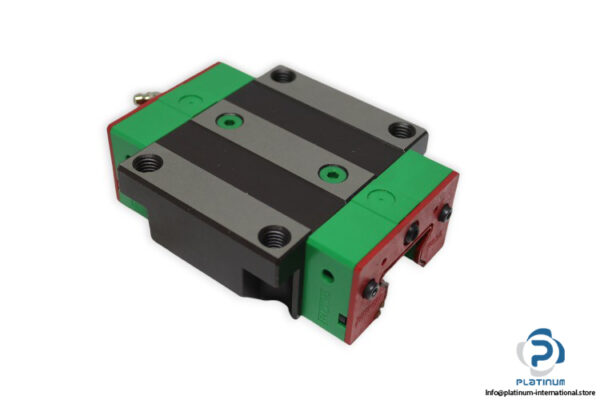

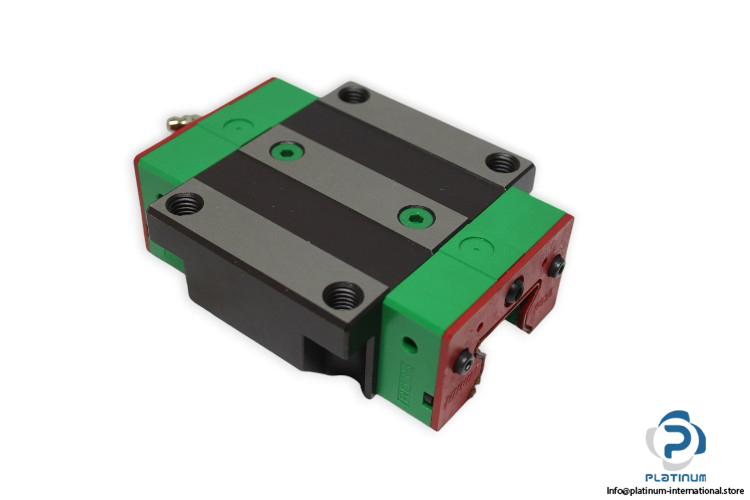

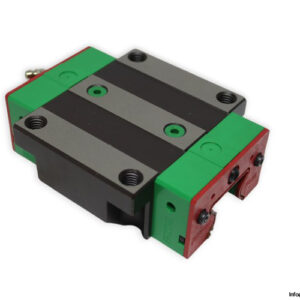

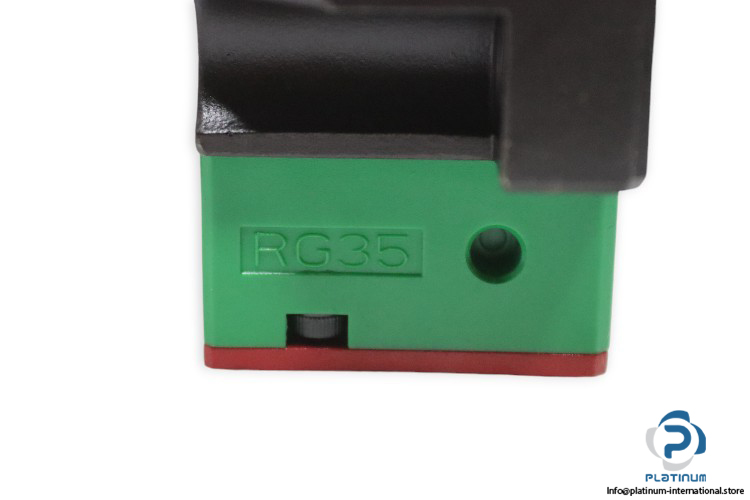

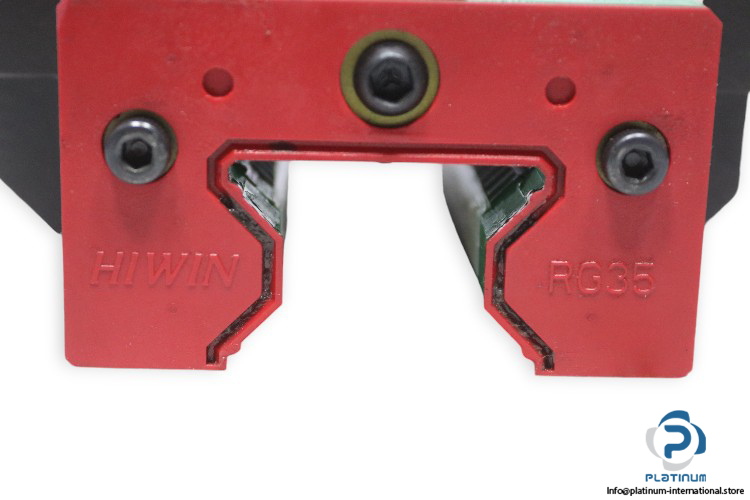

HIWIN RGW35-CC LINEAR GUIDEWAY BLOCK

Engineered for heavy-duty linear motion applications, the HIWIN RGW35-CC is a flange-type linear guideway block offering excellent load capacity, rigidity, and high-speed performance. With a wide block design and top/bottom mounting capability, it’s ideal for precision systems operating under high dynamic and static loads.

Manufacturer: HIWIN
Type: LINEAR GUIDEWAY BLOCK
Model: RGW35-CC

Technical Information

• Size: 35 mm
• Block Type: W, Flange
• Load Type: Heavy Load
• Block Mounting Type: C, Top or Bottom

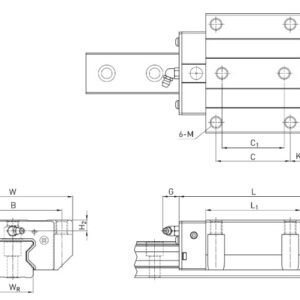

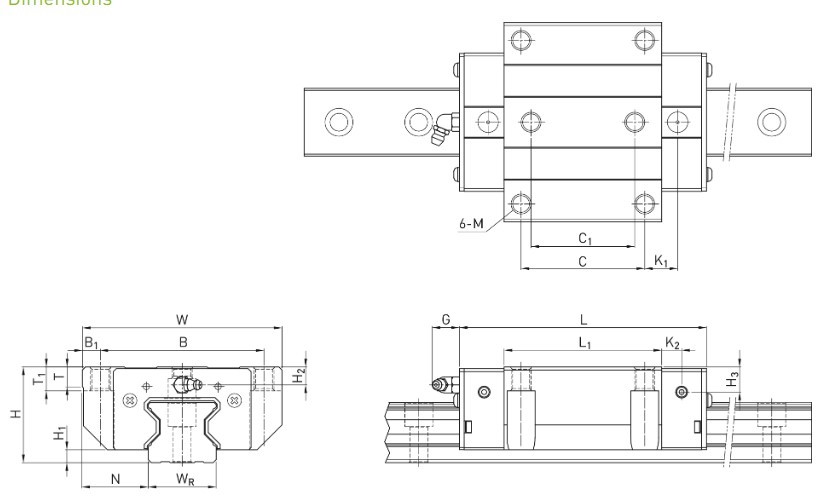

• Total Height H: 48 mm
• Block Width W: 100 mm
• Block Length L: 124 mm
• B: 82 mm
• C: 62 mm
• Thread Size: M10
• Basic Dynamic Load Rating C: 57,900 N
• Basic Static Load Rating C‚: 105,200 N
• Rail Width: 34 mm
• Rail Height: 30.2 mm
• Block Weight: 1.75 kg
• Preload: ZA class
• Max. Speed: 120 m/min
• Acceleration: 1G
• Stroke: 2 m
• Traveling Distance: 15,000 km
• Mounting Bolt for Rail: M8x25
