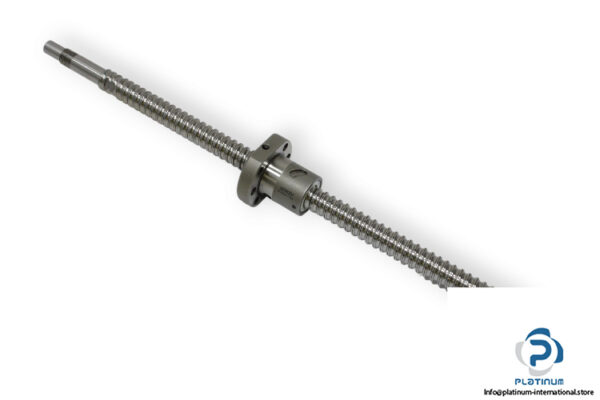

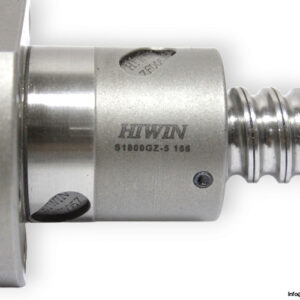

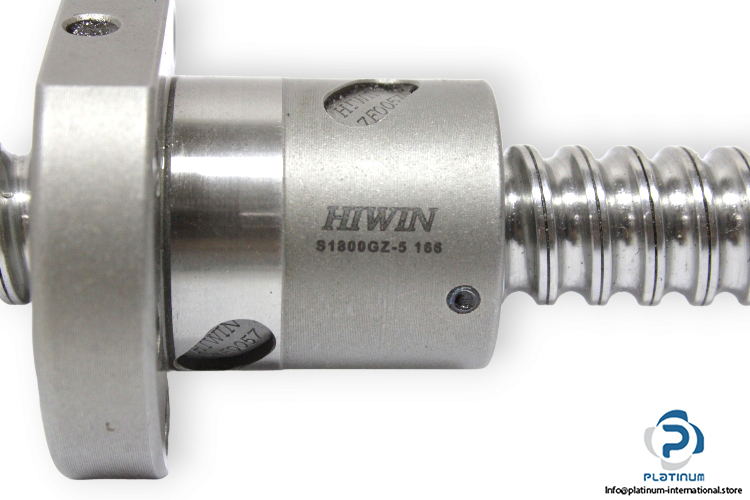

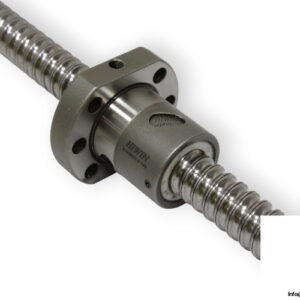

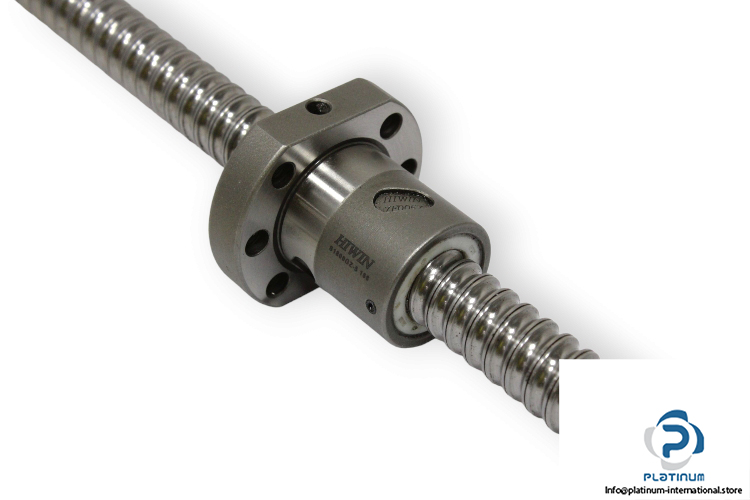

HIWIN R16-05T3-FSIDIN FLANGED NUT BALL SCREW

This precision-engineered flanged nut ball screw from Hiwin is designed for high-accuracy linear motion applications. With a 16 mm nominal diameter, 5 mm lead, and right-hand thread, it delivers reliable performance and high load capacities for CNC and automation systems.

Manufacturer: Hiwin
Type: Flanged Nut Ball Screw
Model: R16-05T3-FSIDIN
Size: 1605R

Technical Information

• Nominal Diameter: 16 mm
• Lead: 5 mm
• Direction of Lead: Right-Hand Thread
• Dynamic Load Rating: 8100 N
• Static Load Rating: 11700 N
• Shaft Path Length: 310 mm
• Shaft Total Length: 380 mm

Nut Dimensions

• Flange Diameter D1: 48 mm
• Nut Diameter D: 28 mm
• Nut Length L: 40 mm
• Flange Thickness L1: 10 mm
• L2: 10 mm
• B: 48 mm
• D2: 38 mm
• D3: 5.5 mm
