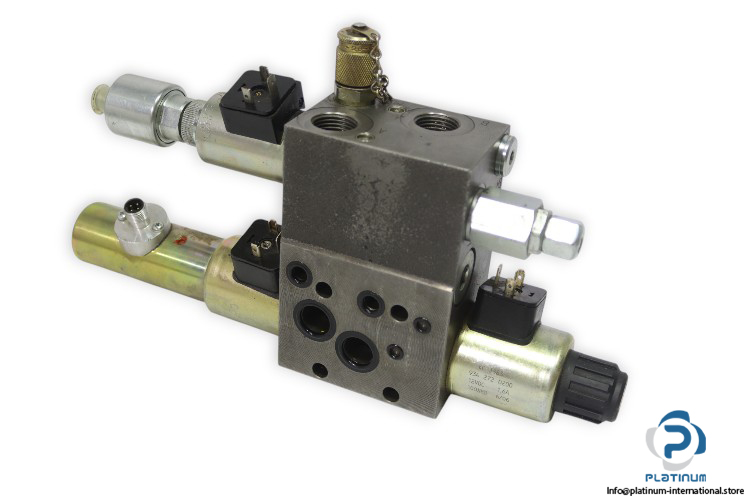

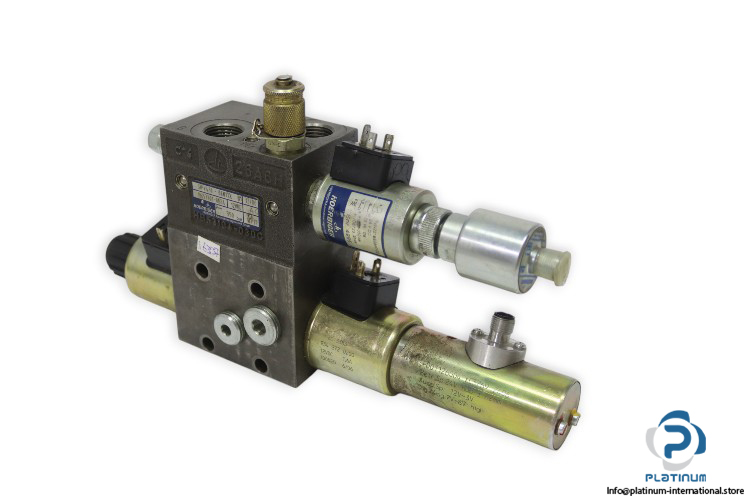

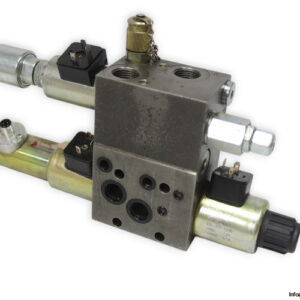

HOERBIGER SIPV430-06N17X B1 Pressure Control Valve

The HOERBIGER SIPV430-06N17X B1 Pressure Control Valve is a direct-acting proportional solenoid valve designed for accurate pressure control in high-pressure hydraulic systems. Engineered for reliability and performance, it ensures consistent operation under demanding industrial conditions.

Manufacturer: HOERBIGER
Type: Pressure Control Valve

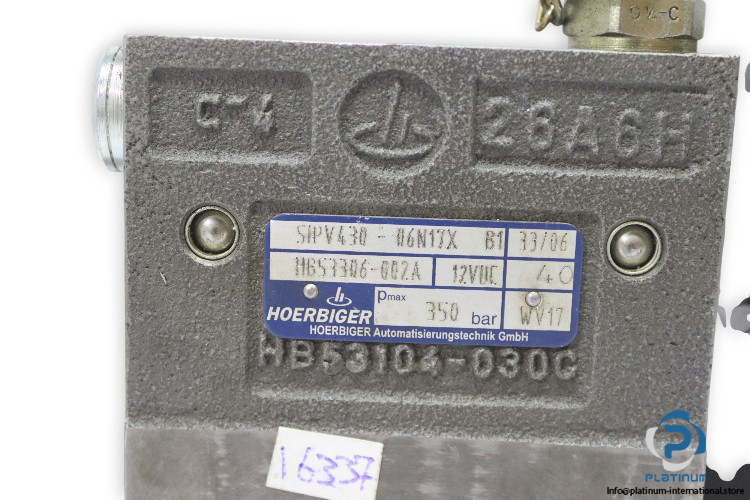

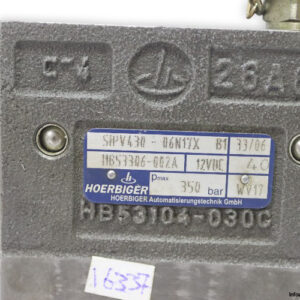

Model: SIPV430-06N17X B1
REF No.: 33/06, 40
MRN: HB53306-002A
REF Code: WV17, 26A6H
Housing No.: HB53104-030C

Technical Information

• Max Pressure: 350 bar
• Electrical Supply: 12 V DC
• Mounting: Subplate / Manifold Mount
• Thread Connection: G1/2

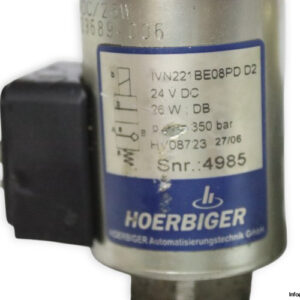

• Attached With: HOERBIGER IVN221BE08PD D2 2/2 Directional Seat Valve
• Serial No.: 4985
• Ref Code: HV08723 27/06
• Operating Voltage: 24 V DC
• Power Consumption: 26 W
• Rated Pressure: 350 bar
• Schematic Symbol: Direct-acting Proportional Solenoid Valve

Attached Components

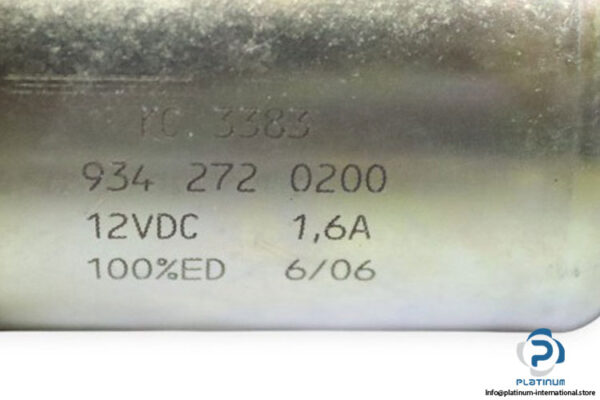

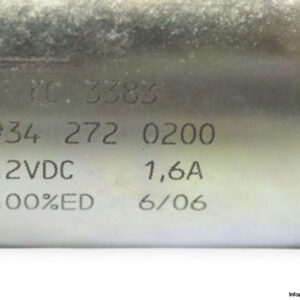

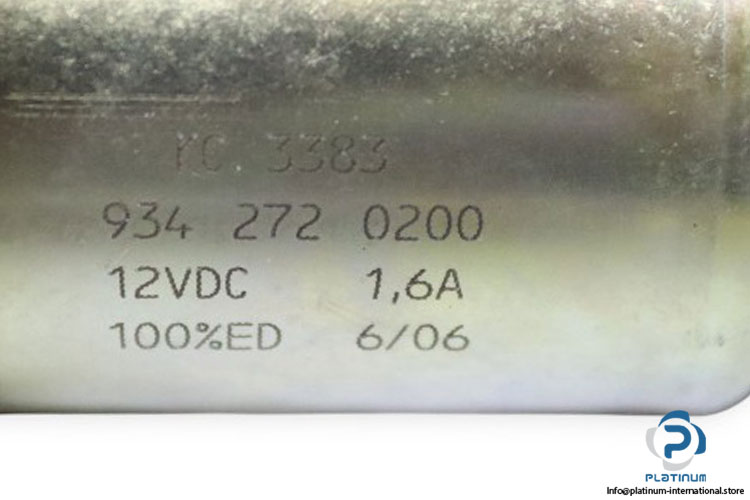

• Solenoid Coil Model: 934 272 0200 (12 V, 1.6 A, 100% ED)
• Ref Code: KC 3383

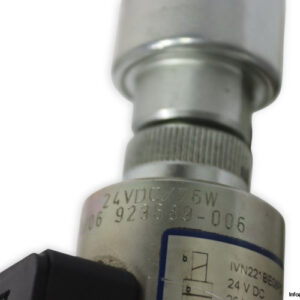

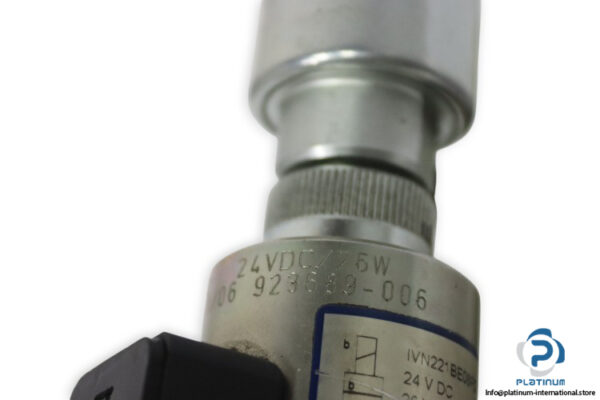

• Solenoid Coil Model: 923689-006 (24 V DC, 26 W, 100% ED)

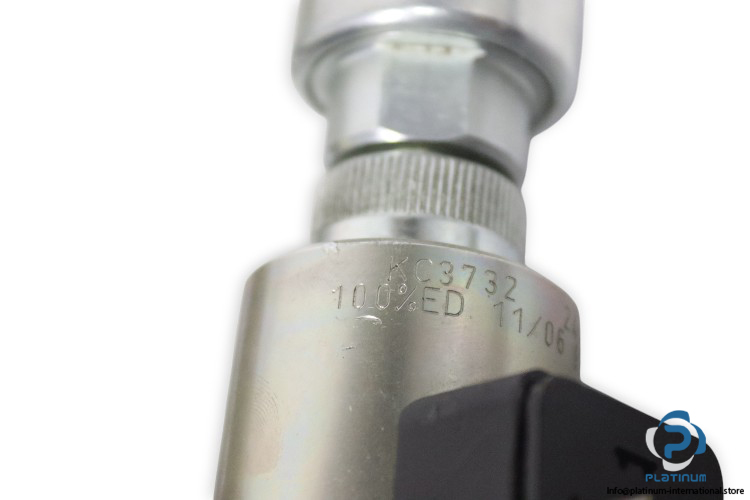

• Ref Code: KC 3732, 11/06

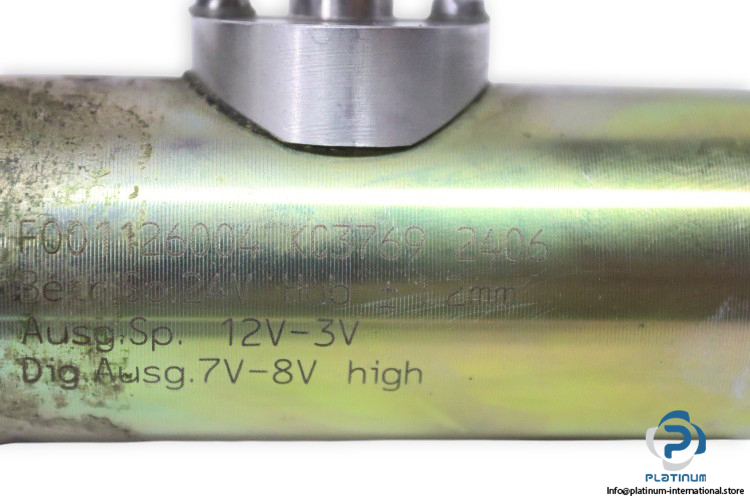

• Sensor Unit Model: F001126004 KC3769 2406
• Hub: 2 mm
• Nominal Voltage: 24 V DC
• Operating Voltage: 24 V DC
• Digital Output Signal: 7 V “ 8 V
• Output Signal Voltage: 12 V “ 3 V
