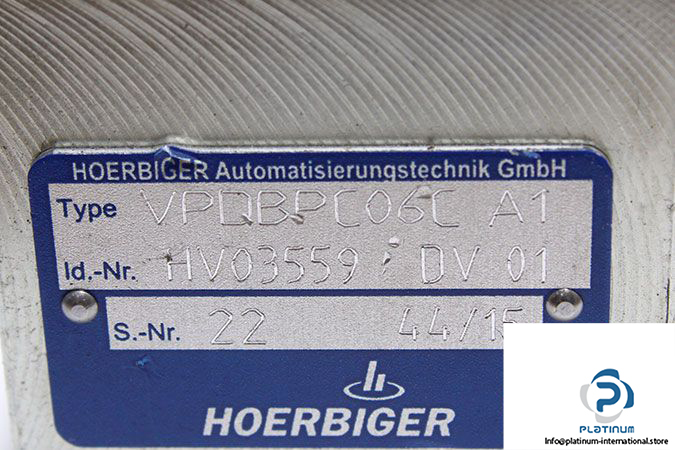

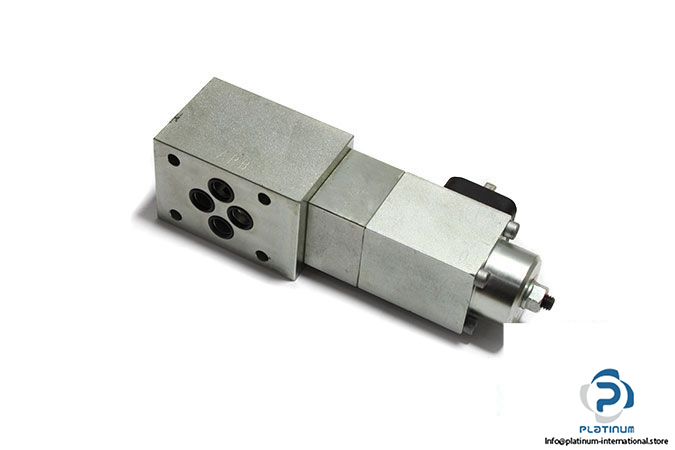

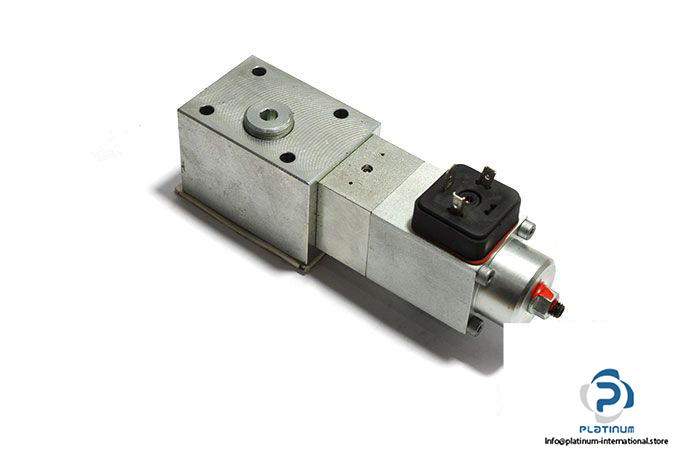

HOERBIGER VPDBPC06C A1 Proportional Pressure-Limiting Valve
The HOERBIGER VPDBPC06C A1 is a high-performance proportional pressure-limiting valve engineered for precise hydraulic pressure control in demanding industrial systems. With robust construction, wide viscosity tolerance, and high flow capacity, it ensures optimal safety and performance in hydraulic circuits.
Manufacturer: HOERBIGER
Type: Proportional Pressure-Limiting Valve
Model: VPDBPC06C A1
ID No.: HV03559 DV 01
Technical Information
- Max. Operating Pressure (X , P): 350 Bar
- Operating Pressure (Y): Pressure less to tank
- Viscosity: 10 “ 600 mm²/s
- Nominal Voltage: 24 V DC
- Rated Current: 0.7 A
- Max. Volume Flow: 320 L/min
- Temperature Range: -30 / 50 °C
