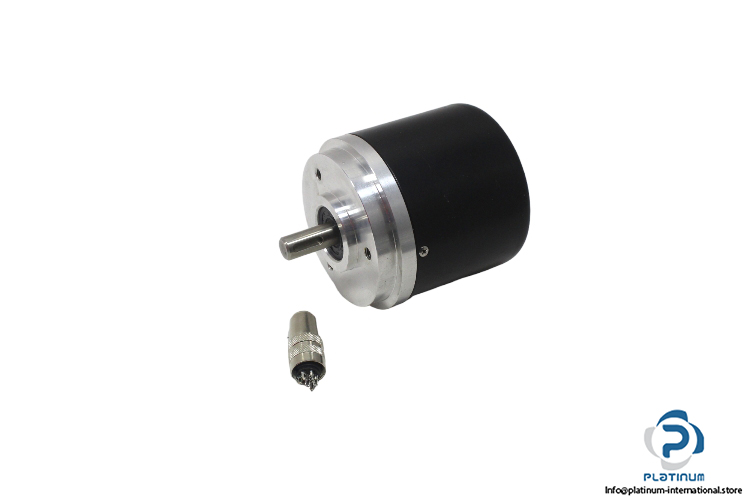

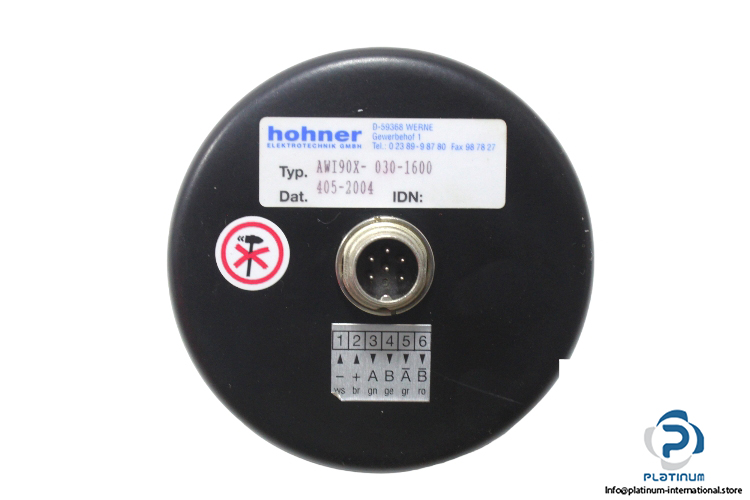

HOHNER AWI90X-030-1600 INCREMENTAL ROTARY ENCODER

hohner-AWI90X-030-1600-incremental-rotary-encoder
hohner-awi90x-030-1600-incremental-rotary-encoder-1
hohner-AWI90X-030-1600-incremental-rotary-encoder
hohner-awi90x-030-1600-incremental-rotary-encoder-1
New
Manufacturer: Hohner

HOHNER AWI90X-030-1600 INCREMENTAL ROTARY ENCODER

INCREMENTAL ROTARY ENCODER

Hohner AWI90X-030-1600 offers 1600 pulses with a 12 mm stainless steel shaft, supporting up to 100 kHz frequency. Built with aluminum flange and steel housing for rugged environments.

SKU: 1002654 Category: Tags: , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

HOHNER AWI90X-030-1600 INCREMENTAL ROTARY ENCODER

The Hohner AWI90X-030-1600 is a precision-engineered incremental rotary encoder designed for accurate position and speed detection in industrial automation systems. Built with robust materials and a high pulse count, this encoder ensures reliable operation in harsh environments and dynamic applications.

Manufacturer: Hohner
Type: Incremental Rotary Encoder
Model: AWI90X-030-1600

Technical Information

  • Number of Pulses: 1600
  • Shaft Size: 12 mm
  • Max. Step Frequency: 100 kHz
  • Permissible Temperature Range: -30°C to +70°C
  • Flange: Aluminium
  • Housing: Powder-coated Sheet Steel
  • Shaft: Stainless Steel
Weight1,1 kg
