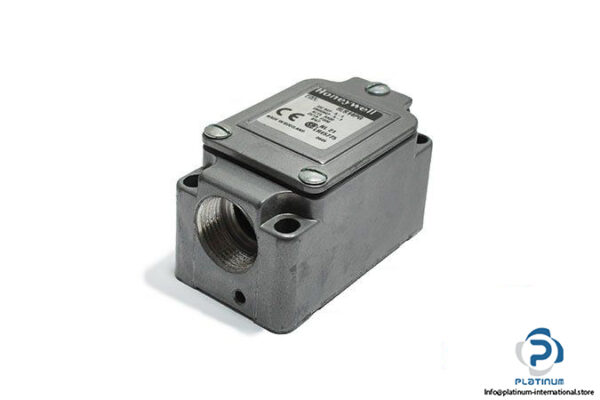

Honeywell 8LS1-4PG Limit Switch

The Honeywell 8LS14PG is a rugged industrial limit switch designed for reliable operation in demanding environments. With a durable die-cast zinc body, wobble coil spring actuator, and IP67 protection, it ensures precision and long service life in automation and control systems.

Manufacturer: HONEYWELL
Type: Limit Switch
Model: 8LS1-4PG

Technical Information

• Rated Voltage: 500 V AC / 230 V DC
• Rated Current: 10 / 0.4 A
• Frequency: 50 / 60 Hz
• Contact: DPDT 2 Changeover (CO)
• Actuator Type: Wobble Coil Spring (141 mm)
• Material: Die-Cast Zinc
• Protection Class: IP67
• Temperature Range: -30 / 70 °C
• Dimensions: 204.4 x 40 x 35.05 mm
