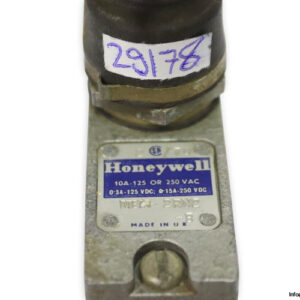

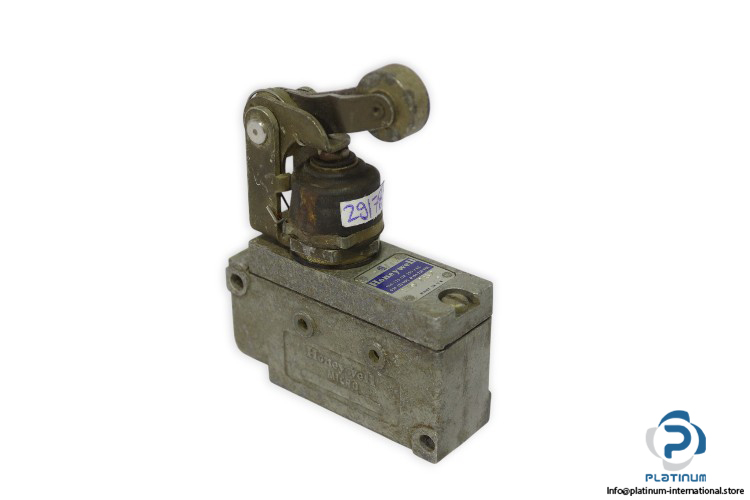

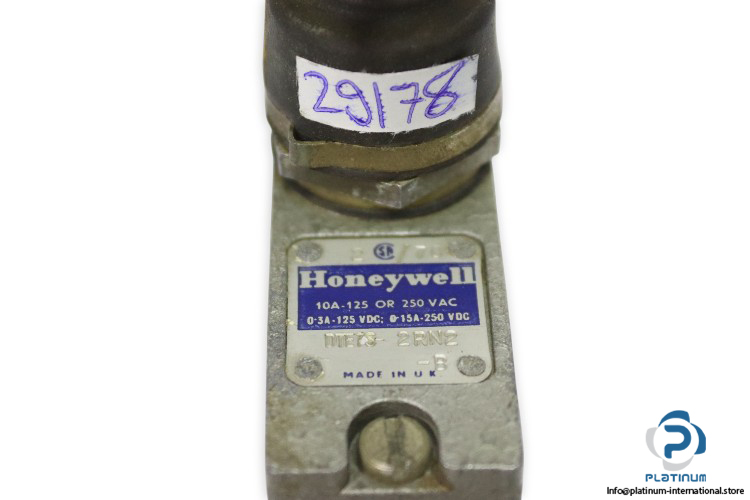

Honeywell DTE7S-2RN2-B Micro Switch

The Honeywell DTE7S2RN2B is a durable industrial-grade micro switch designed for precise control and reliable performance. With a robust metal housing and IP65 protection, it is well-suited for harsh environments and demanding applications.

Manufacturer: Honeywell
Type: Micro Switch
Model: DTE7S-2RN2-B

Technical Information

• Rated Voltage: 125 / 250 V AC/DC
• Rated Current: 10 / 0.3 / 15 A
• Frequency: 50 / 60 Hz
• Contact: DPDT 2 Changeover (CO)
• Actuator Type: Adjustable Roller Lever, Side Mount with Boot Seat
• Material: Metal
• Protection Class: IP65
• Temperature: -30 / 70 °C
• Dimensions: 45.2 x 76.40 mm
