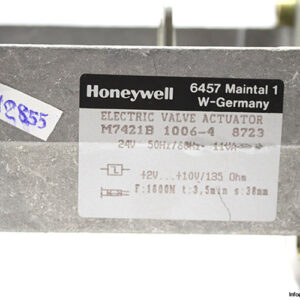

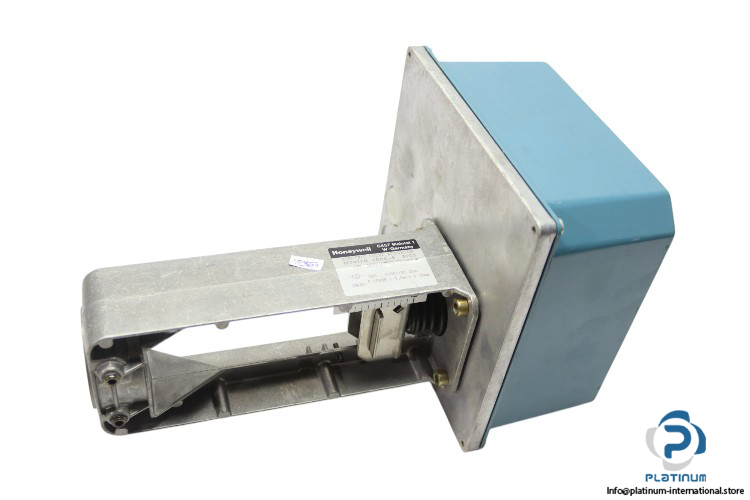

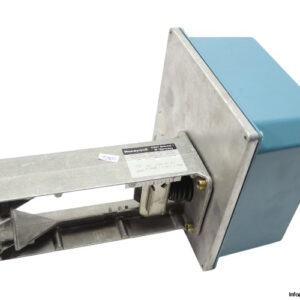

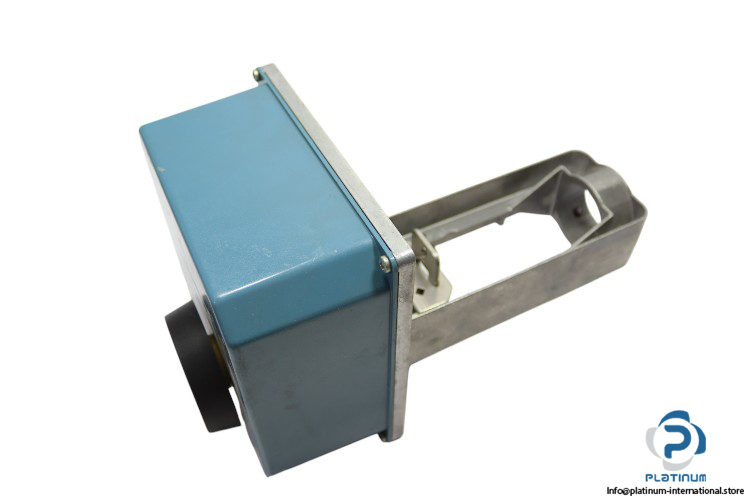

Honeywell M7421B 1006-4 8723 Electric Linear Valve Actuator
The Honeywell M7421B 1006-4 8723 Electric Linear Valve Actuator provides precise control for various industrial and HVAC applications. With a nominal stem force of 1600 N and a 38 mm stroke, it delivers reliable performance with fast actuation and minimal power consumption.
Manufacturer: HONEYWELL
Type: Electric Linear Valve Actuator
Model: M7421B 1006-4 8723
Technical Data:
- Supply Voltage: 24 Vac
- Frequency: 50/60 Hz
- Power Consumption: 11 VA
- Output Voltage Range (Position): 2 … 10 Vdc
- Stroke: 38 mm
- Run-Time at 50 Hz: 3.5 min
- Nominal Stem Force: 1600 N
