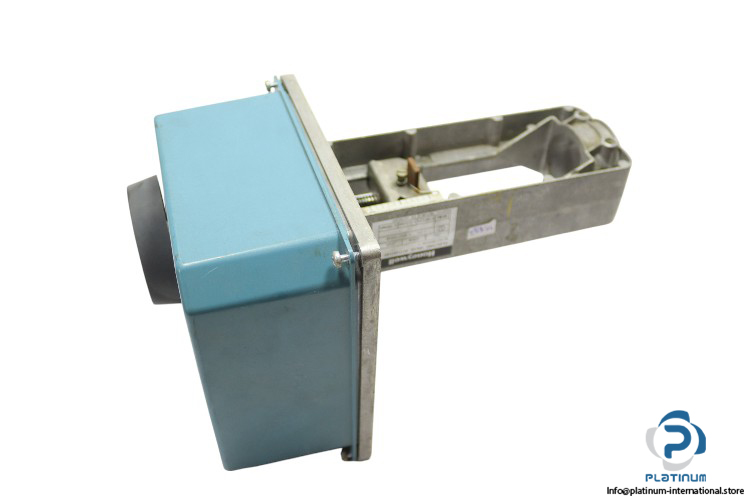

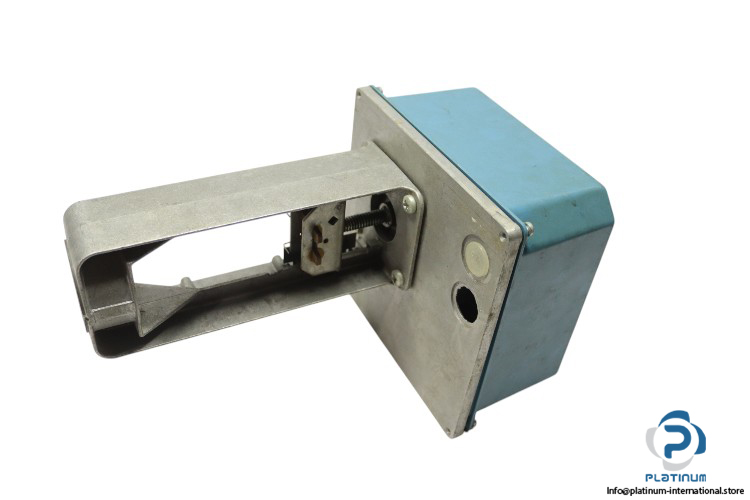

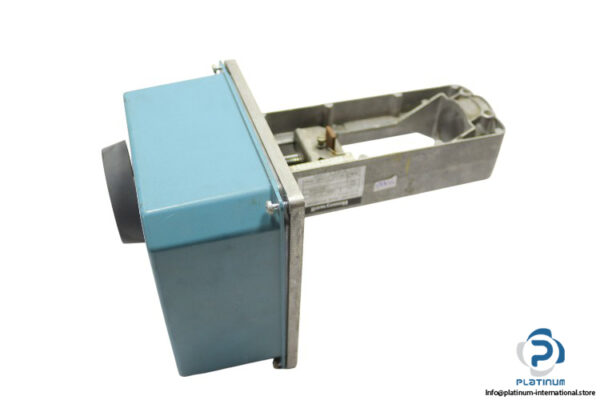

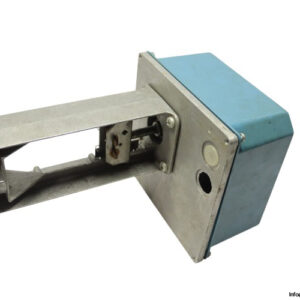

Honeywell M7421B1006-1 AV Electric Linear Valve Actuator
The Honeywell M7421B1006-1 AV is a high-performance electric linear valve actuator designed for precise valve control in HVAC systems. With a supply voltage of 24 Vac, a stroke length of 38 mm, and a nominal stem force of 1800 N, this actuator ensures reliable and efficient operation in industrial and commercial applications.
Manufacturer: HONEYWELL
Type: Electric Linear Valve Actuator
Model: M7421B1006-1 AV

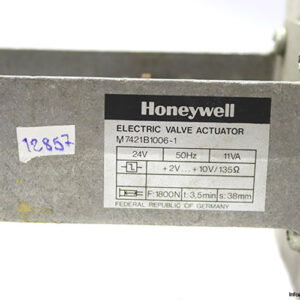

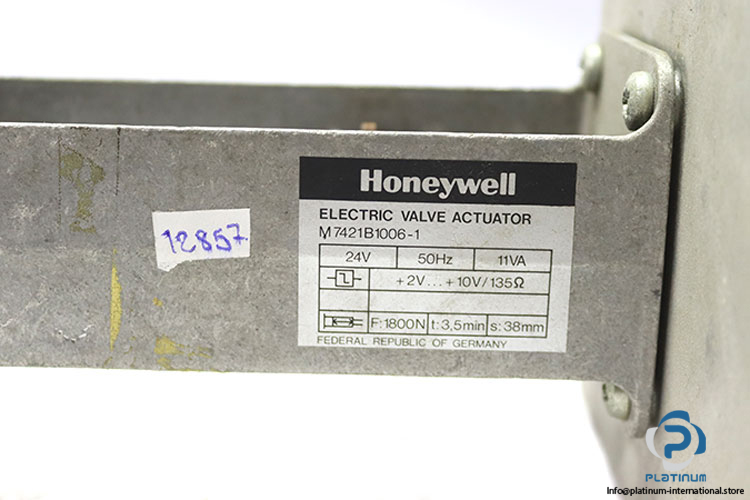

Technical Data:
- Supply Voltage: 24 Vac
- Frequency: 50 Hz
- Power Consumption: 11 VA
- Output Voltage Range (Position): 2 … 10 Vdc
- Stroke: 38 mm
- Run-time at 50 Hz: 3.5 min
- Nominal Stem Force: 1800 N
