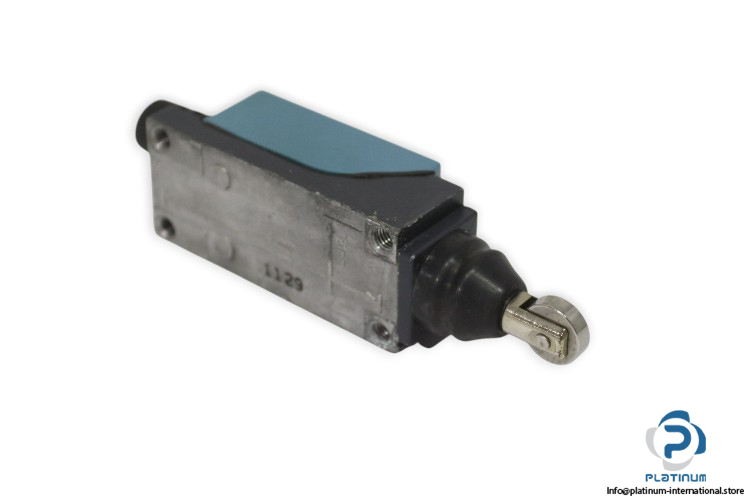

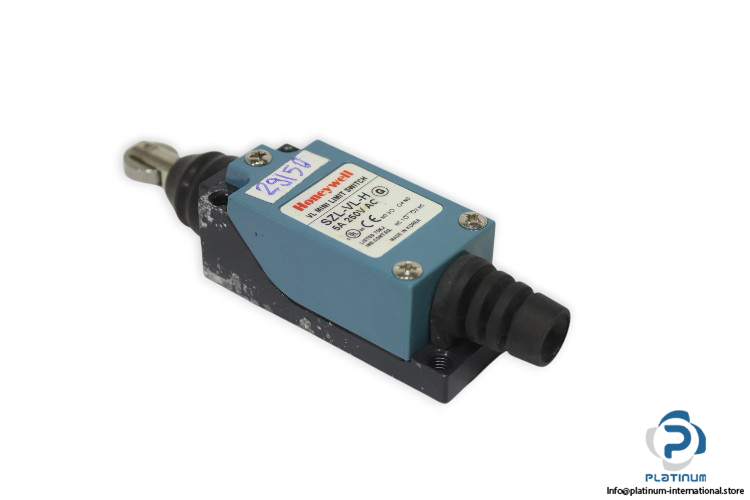

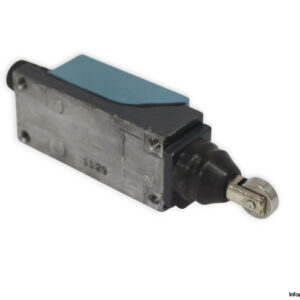

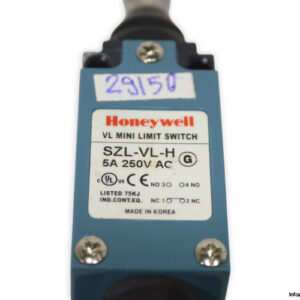

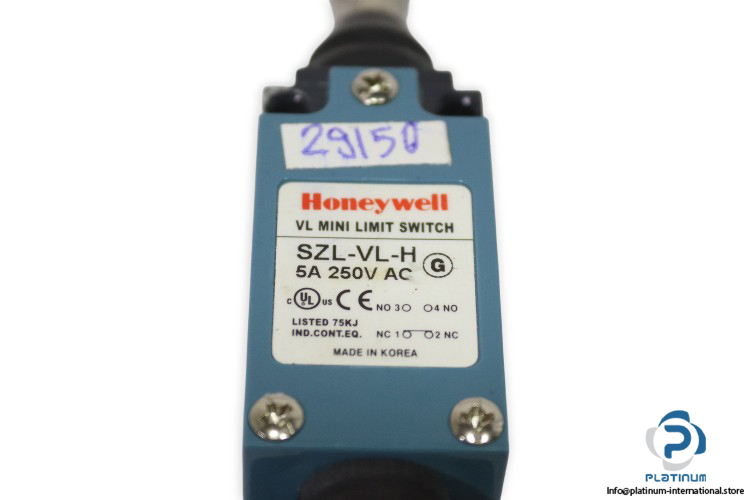

Honeywell SZL-VL-H Limit Switch
The Honeywell SZL-VL-H is a robust limit switch designed for reliable performance in industrial automation systems. With a durable zinc die-cast housing, cable gland termination, and roller plunger actuator, it ensures precise switching and long service life.
Manufacturer: HONEYWELL
Type: Limit Switch
Model: SZL-VL-H
Technical Information
- Circuitry: 1NC 1NO SPDT; Double Break
- Ampere Rating: 5.0 A / 0.4 A
- Supply Voltage: 250 Vac max. / 125 Vdc max.
- Housing Material: Zinc Die-Cast / Plastic
- Termination Type: Cable Gland
- Series Name: SZL-VL
- Actuator Type: Roller Plunger
- Switching Voltage Max.: 250 V AC
- Contact Current Max.: 5 A
- Connection: Cable Entry
- Protection Class: IP64
- Operating Temperature Range: -20 °C to 60 °C
- Dimensions: 64 x 28 x 25 mm
