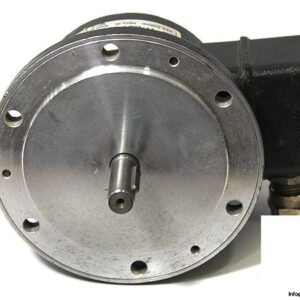

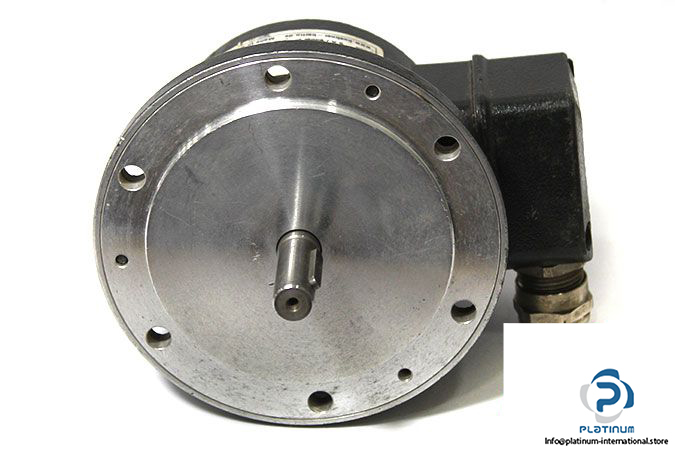

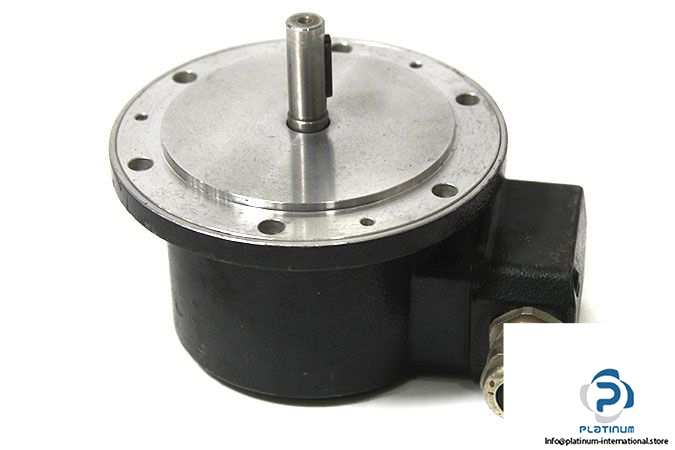

HUBNER BERLIN FS 90 Over Speed Switch
The HUBNER BERLIN FS 90 over speed switch is designed for reliable monitoring of rotational speed in industrial applications. With solid shaft design, EURO flange mounting, and high switching capacity, it provides dependable safety and control in harsh operating environments.

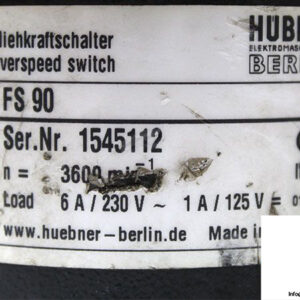

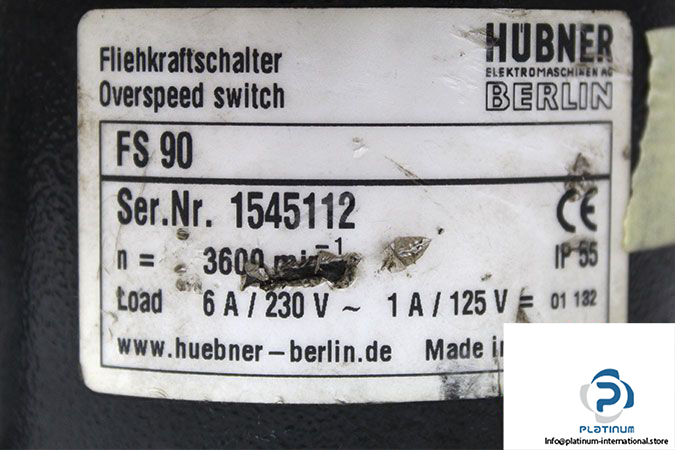

Manufacturer: HUBNER BERLIN
Type: Over Speed Switch
Model: FS 90
Technical information
- Flange Type: EURO flange B10
- Shaft Design: Solid shaft
- Shaft Diameter: 11 mm
- Output Switching Capacity: 6 A / 230 VAC, 1 A / 125 VDC
- Open Circuit Voltage: 15 mV per rpm
- Switching Speed: 3600 rpm
- Electrical Connection: Terminal Box
- Protection Class: IP55
- Operating Temperature: -40 / +130 °C
