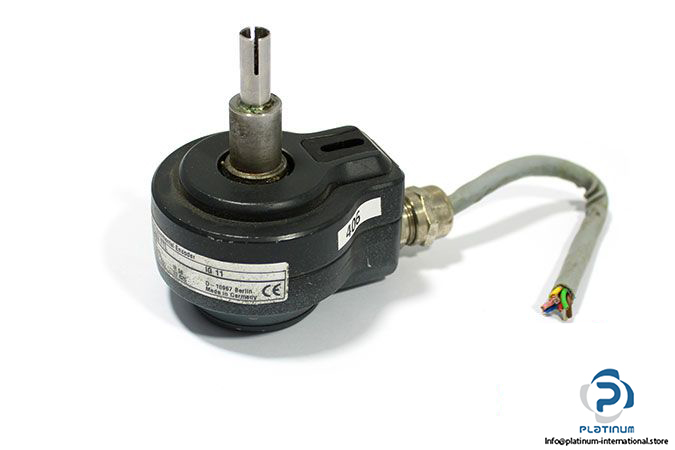

HUBNER OG 72 DN 1024 TTL IG 11 INCREMENTAL ENCODER
The HUBNER OG 72 DN 1024 TTL IG 11 is a high-precision incremental encoder engineered for reliable and accurate position feedback in industrial automation systems. With a compact 58 mm housing, spread shaft configuration, and TTL output, this encoder ensures efficient integration and superior performance even in demanding environments.
Manufacturer: HUBNER
Type: Incremental Encoder

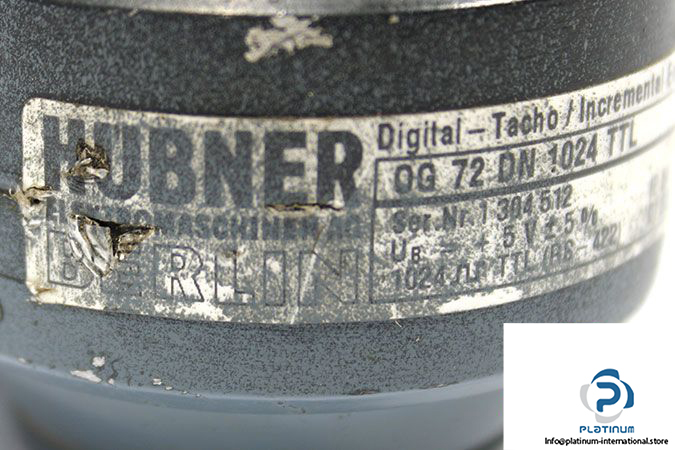

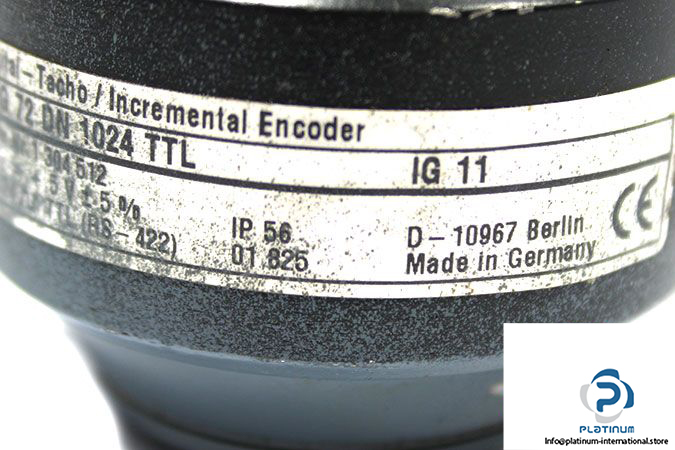

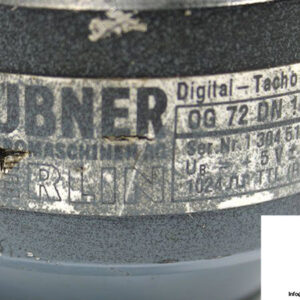

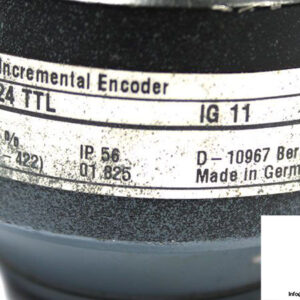

Model: OG 72 DN 1024 TTL IG 11
Serial No.: 1 304 512
Technical Information
- Shaft Type: Spread Shaft
- Shaft Size: 8 mm
- Output Stage: TTL
- Resolution: 1024 pulses per revolution (ppr)
- Voltage: 5 V
- Outer Diameter: 58 mm

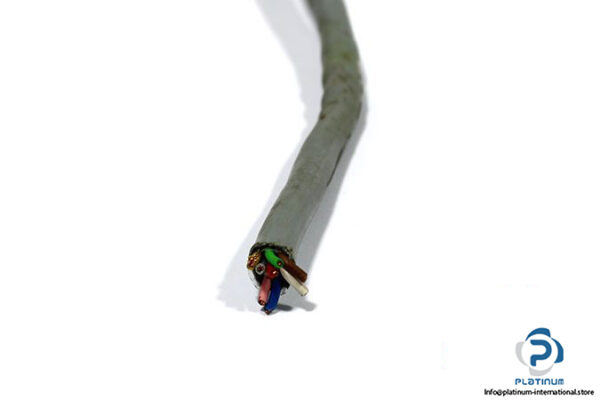

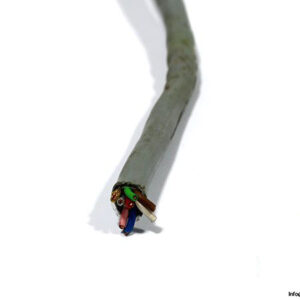

- Electrical Connection: 8-wire cable
- Protection Class: IP56
