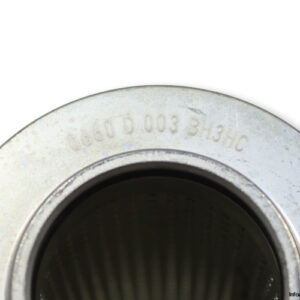

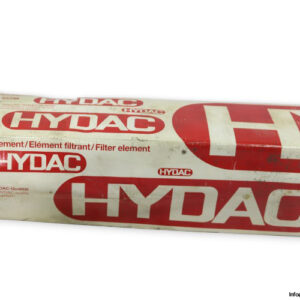

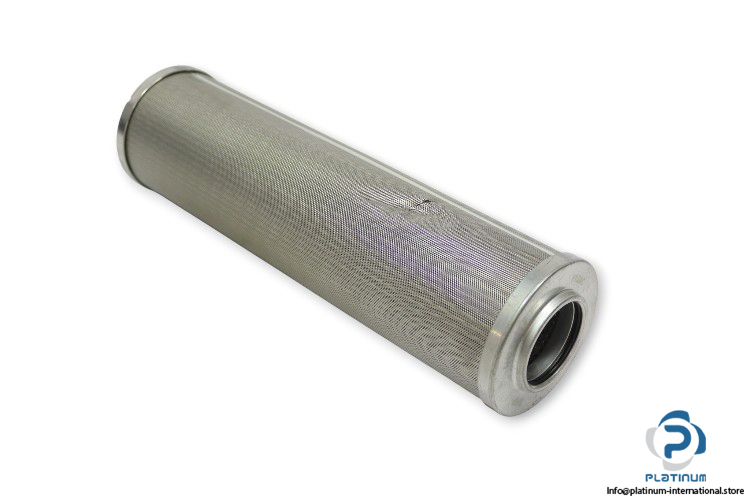

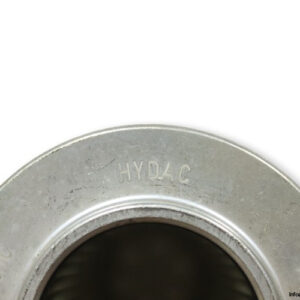

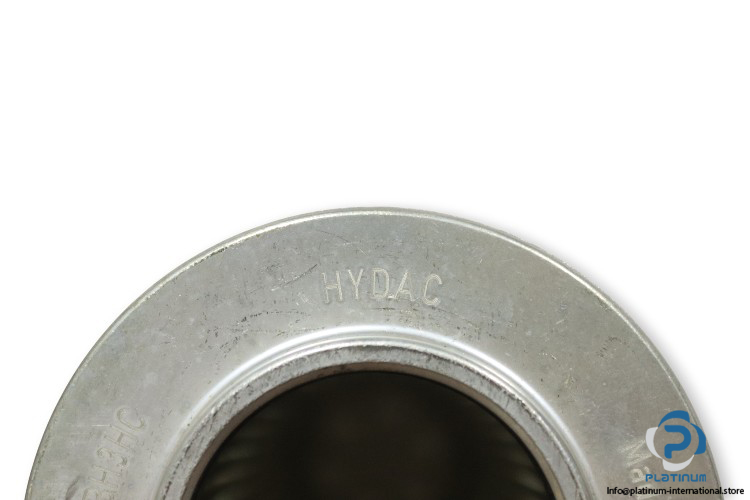

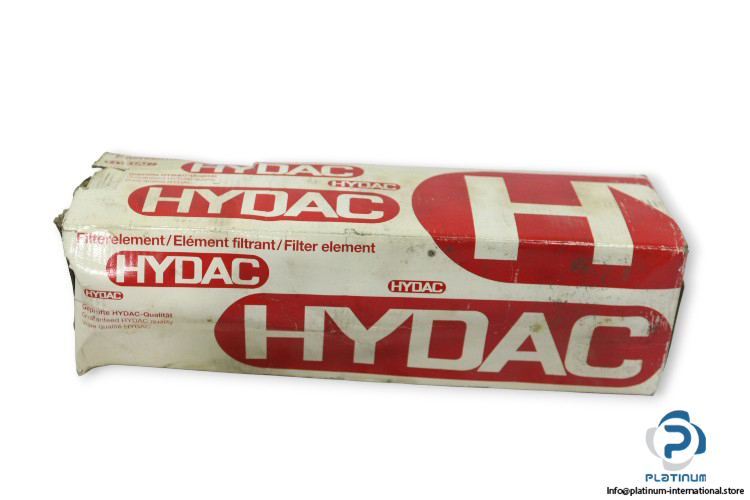

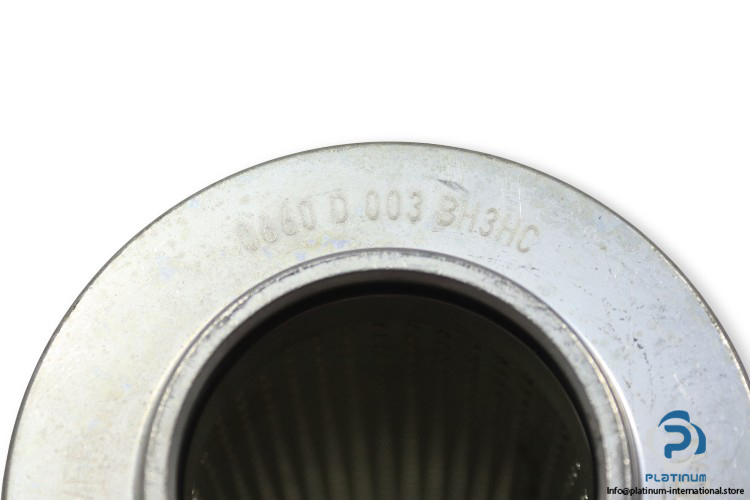

Hydac 0660D003BH3HC Pressure Filter (Betamicron®3PLUS)
The Hydac 0660D003BH3HC is a high-efficiency Betamicron®3PLUS pressure filter element engineered for superior contamination control in hydraulic and industrial fluid systems. Designed for high-pressure operations and long service life, it ensures reliable protection for pumps, valves, and sensitive hydraulic components.
Manufacturer: Hydac
Type: Pressure filter (Betamicron®3PLUS)
Model: 0660D003BH3HC

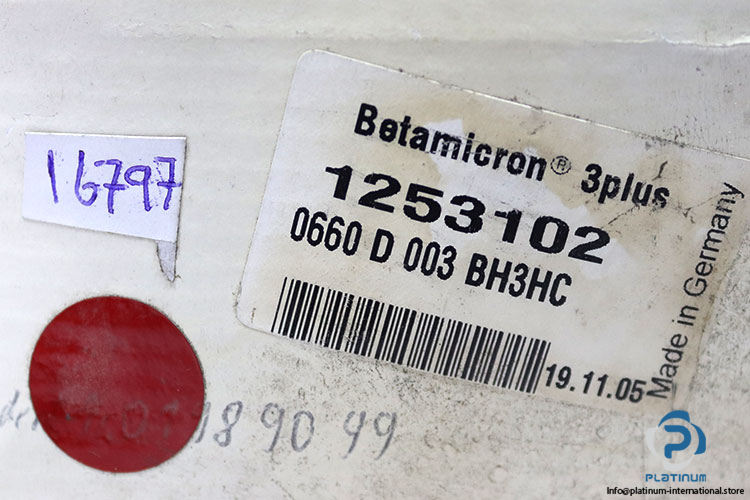

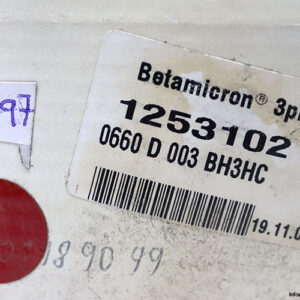

Material number: 1253102
Series: 0660
Technical Information
- Length: 330 mm
- Inner Diameter: 46 mm
- Outside Diameter: 91 mm
- Collapse Stability: 20 bar
- Temperature Range: -30 °C to +100 °C
- Flow Direction: From outside to inside
- Category of Filter Element: Single use element
- Size: 0660
- Filter Material: BH/HC = Betamicron high pressure
- Sealing Material: NBR = NBR (Perbunan)
- Filtration Rating: 003 µm
Recommendation: This filter element is highly recommended for users who require maximum filtration efficiency and reliable system protection in demanding hydraulic environments. Its Betamicron®3PLUS media provides exceptional dirt-holding capacity, extended operating life, and improved fluid cleanliness”making it an ideal choice for maintaining long-term equipment performance and reducing maintenance downtimes.
