HYDAC Brazed Plate Heat Exchanger – Model: HEX S522-100-00/G1 1/2³

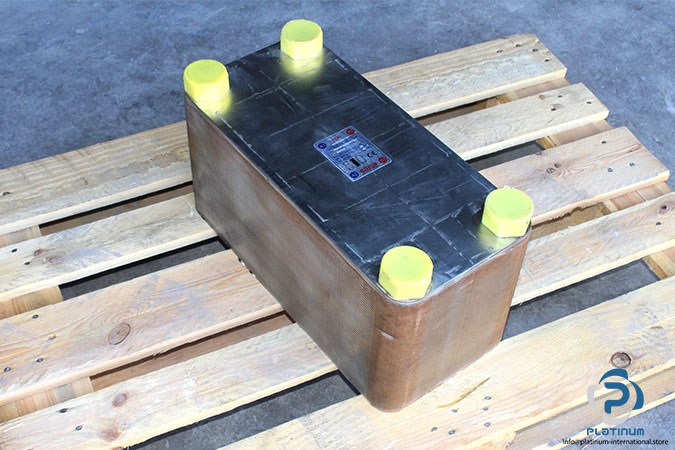

The HYDAC Brazed Plate Heat Exchanger (Model: HEX S522-100-00/G1 1/2³) is a highly efficient heat exchange device designed for various industrial applications. It features a copper solder construction with 30 plates, offering maximum working pressure of 30 bar and a test pressure of 45 bar. The unit has a compact design with dimensions of 25 x 24 x 52.5 cm and can withstand temperatures up to 200°C. This heat exchanger is ideal for applications requiring reliable heat transfer in demanding environments.

Technical Specifications:

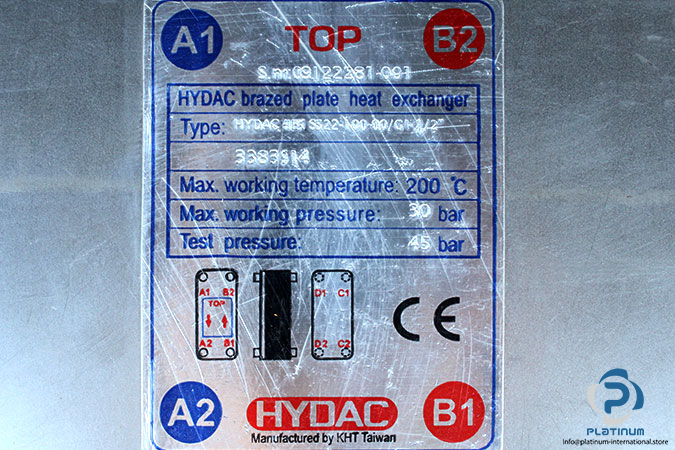

• Model: HEX S522-100-00/G1 1/2³
• Plate No.: 30
• Max. Working Pressure: 30 bar
• Test Pressure: 45 bar
• Dimensions: 25 x 24 x 52.5 cm
• Max. Temperature Range: 200°C
• Material: Copper Solder

This HYDAC Brazed Plate Heat Exchanger is designed for high-performance heat transfer in a wide range of industrial applications, including HVAC, refrigeration, and chemical processing. Its robust construction ensures reliable operation in high-pressure and high-temperature environments.
