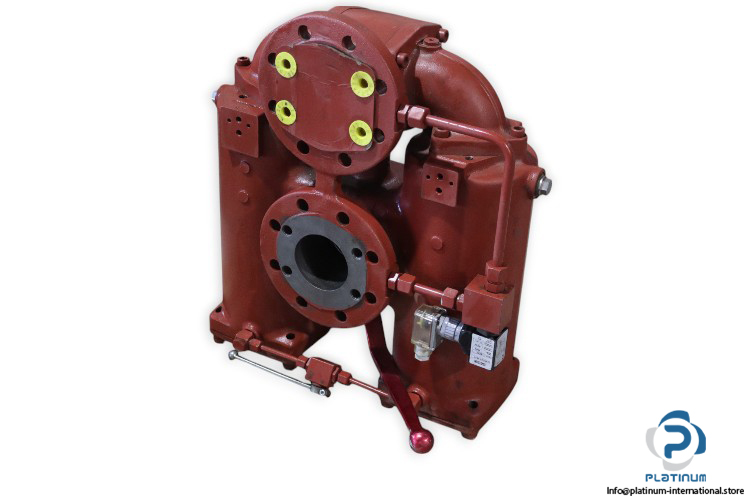

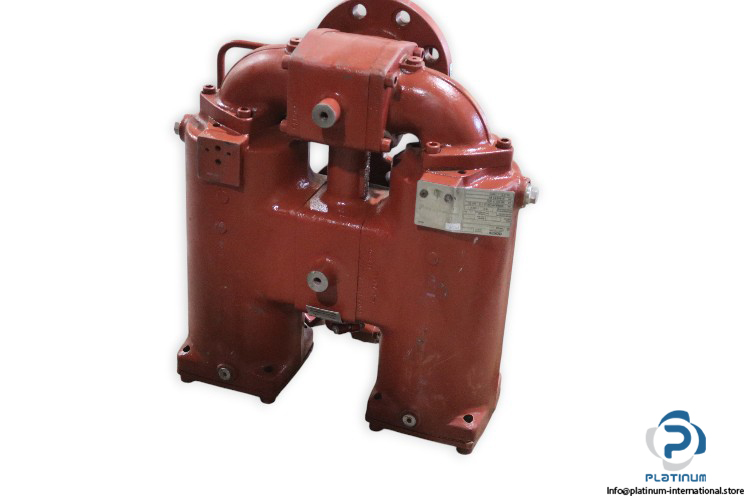

HYDAC RFLD W/HC 661 DAS 25 LZ INLINE FILTER WITH CLOGGING INDICATOR
This industrial-grade change-over inline filter from Hydac, cast in the durable RFLD version, is equipped with high-performance dual elements and a clogging indicator for continuous fluid cleanliness and system reliability.

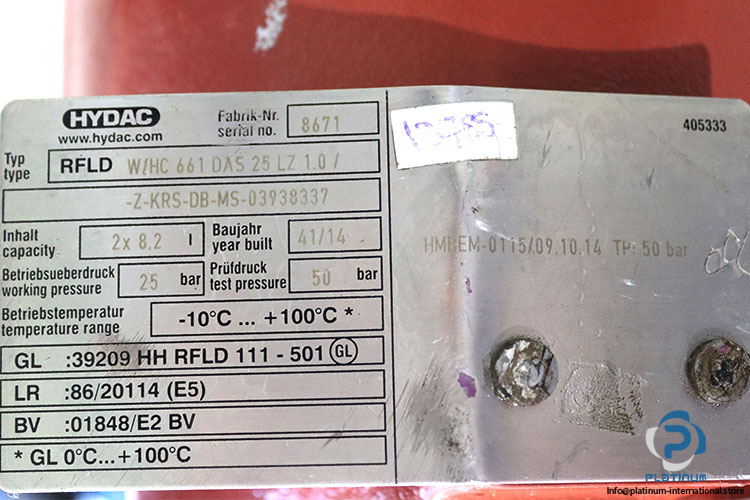

Manufacturer: Hydac
Type: Change-Over Inline Filter RFLD Cast Version
Model: RFLD W/HC 661 DAS 25 LZ 1.0/-Z-KRS-DB-MS-03938337
MNR: HMBEM-0115/09.10.14 “ LZ DB
Fabrication No.: 8671
Ref. No.: 405333
GL: 39209 HH RFLD 111-501
LR: 86/20114 (E5)
BV: 01848/E2 BV
Technical Information
- IN Halt Capacity: 2 x 8.2 l
- Working Pressure: 25 bar
- Test Pressure: 50 bar
- Bypass: 3 bar
- Type of Change-Over: Ball
- Lamp Voltage: 24 V DC
- Sealing Material: NBR, NBR (Perbunan)
- Connection: 82 mm
- Filtration Rating: 25
- Type of Connection: SAE flange

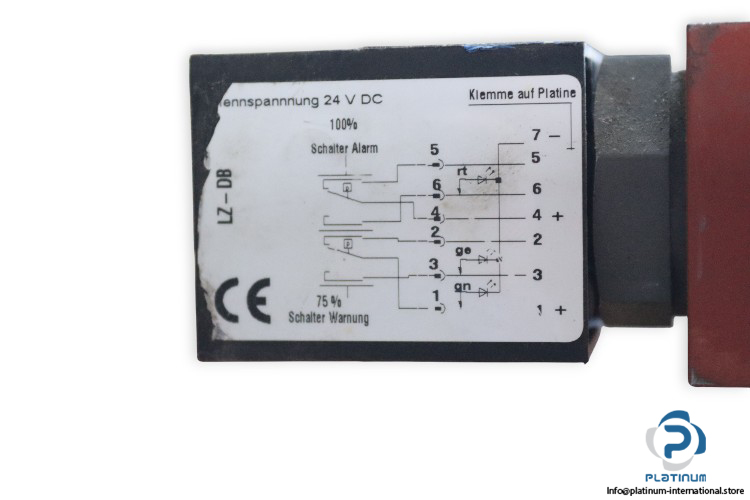

- Type of Clogging Indicator: Visual/Electrical
- Filter Material: Stainless steel wire mesh
- Temperature Range: -10 to 100°C

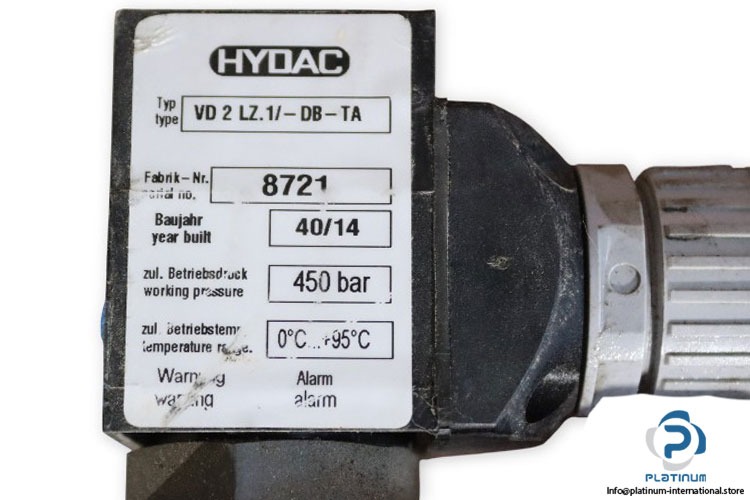

Attached Indicator – Filter Clogging Indicator
Manufacturer: Hydac
Type: Filter Clogging Indicator
Model: VD 2 LZ.1/-DB-TA
Fabrication No.: 8721
Version: Visual/Electrical
Working Pressure: 450 bar
Response Pressure: 2
Sealing Material: NBR, NBR
Temperature Range: -0 to 95°C
