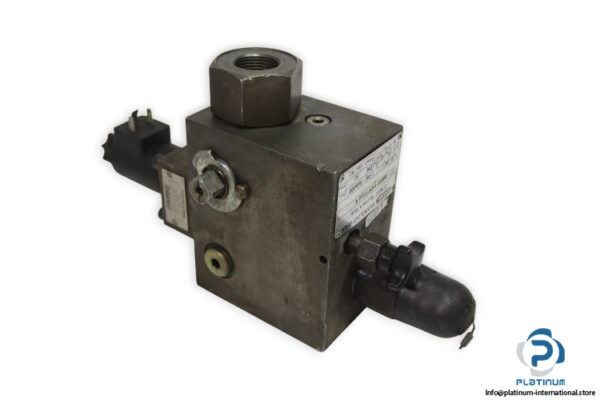

HYDAC SAB20 E12V1T200A Shut-Off Valve With Flutec 2SV5A8Y.0 Solenoid Coil
The HYDAC SAB20 E12V1T200A Shut-Off Valve is a robust, high-pressure unit designed for hydraulic applications requiring solenoid operation with manual discharge capability. It ensures reliable oil flow control and safety in demanding industrial environments. The valve is equipped with a Flutec 2SV5A8Y.0 solenoid coil for precise electrical actuation.

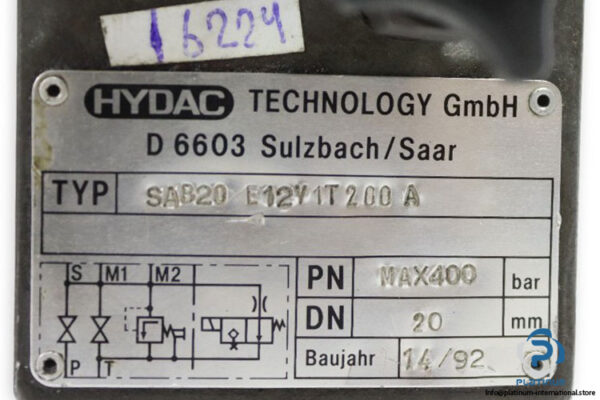

Manufacturer: HYDAC
Type: Shut-Off Valve
Model: SAB20 E12V1T200A
Ref No.: 14/92
Technical Information
- Nominal Size (DN): 20
- Maximum Pressure: 400 bar
- Fluid: Oil
- Type: Solenoid-Operated and Manual Discharge
- Block Material: Carbon Steel
- Seal Material: NBR
- Standard Threaded Connection: ISO 228 (BSP)
- Connection: G1, G3/4
- Pressure Setting: 200 bar

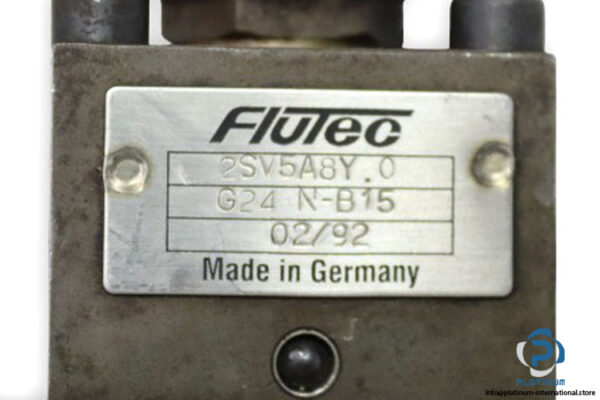

Attached Solenoid Coil
- Manufacturer: Flutec
- Model: 2SV5A8Y.0
- Type: Solenoid Coil
- Coil Voltage: G24 (24 V DC)
- Series: N-B15
- Code: 02/92
