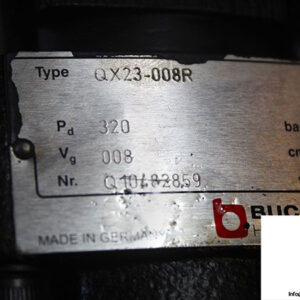

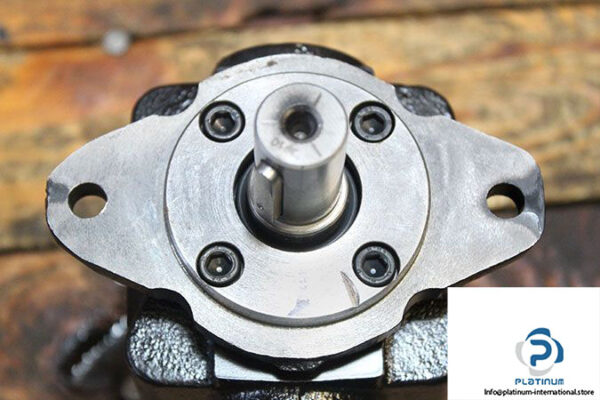

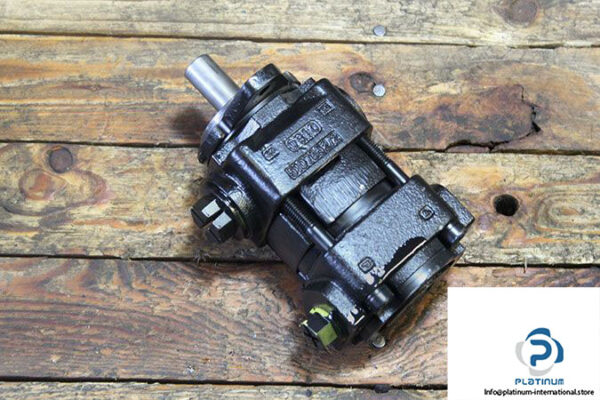

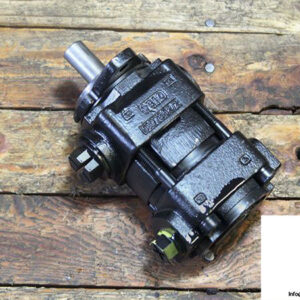

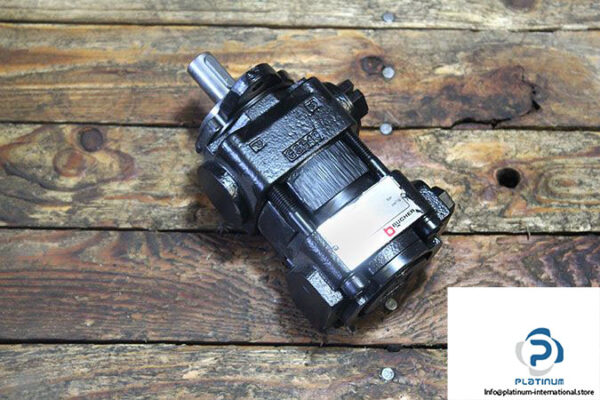

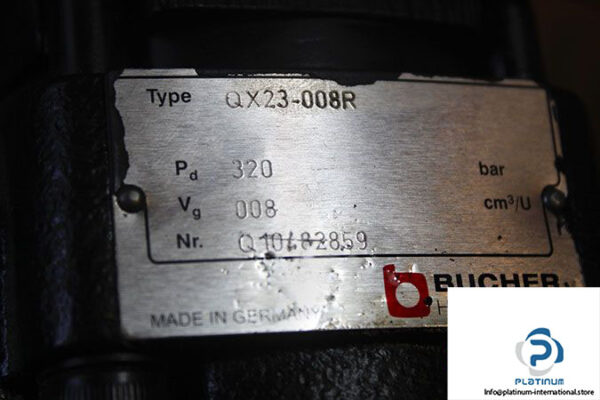

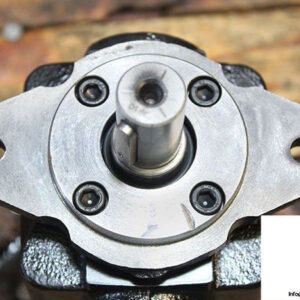

Manufacturer: Bucher

Type: Internal Gear Pump

Model: QX23-008R

Size: 8

Displacement: 7.9 cm³

Output flow at 1500 rpm: 11.5 l/min

Nominal Pressure: 320 bar

Shaft Diameter: 20 mm

Input Power at 1500 rpm: 7 Kw

Minimum Speed: 1400 min^-1

Max Speed: 3600 min^-1

Torque: 46 Nm

Viscosity Range: 10 …. 100 mm²/s

Weight: 6.7 Kg
