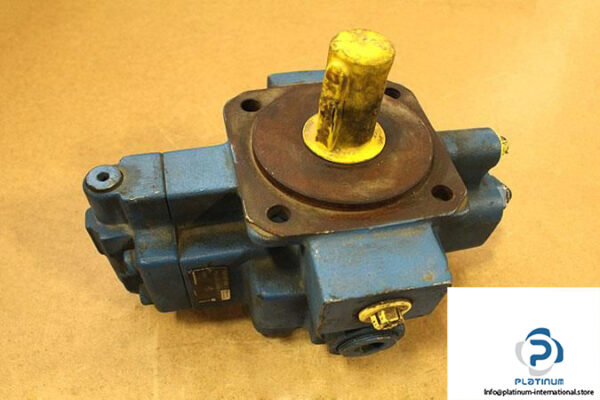

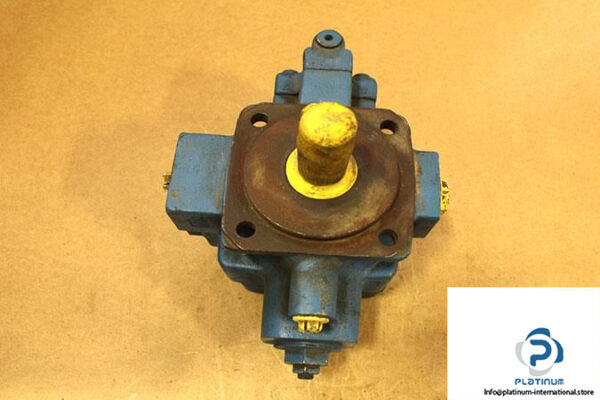

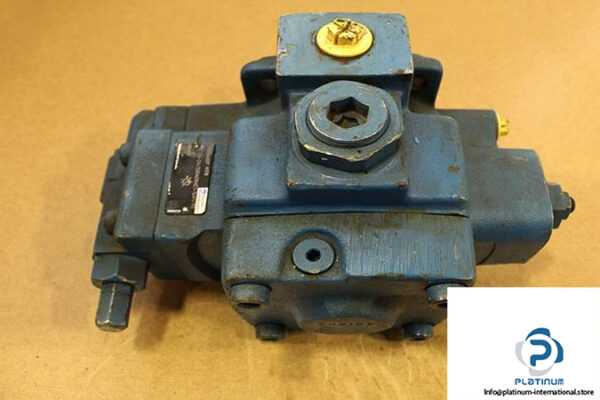

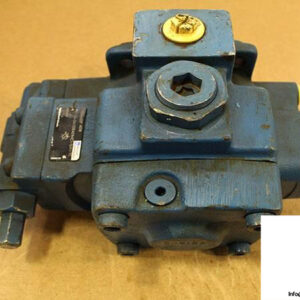

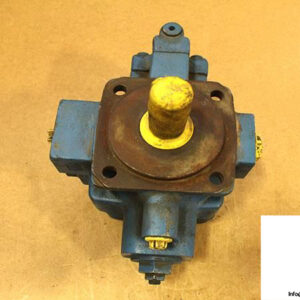

REXROTH 1PV2V4-24/20RA01MC1-16A1/95 VARIABLE VANE SINGLE PUMP

Used
Manufacturer: REXROTH

REXROTH 1PV2V4-24/20RA01MC1-16A1/95 VARIABLE VANE SINGLE PUMP

VARIABLE VANE SINGLE PUMP

Rexroth NG20 variable vane single pump with 20.7 cm³ displacement, 160 bar operating pressure, and 29 l/min flow rate at 1450 rpm, built for efficient oil-based hydraulic systems.

SKU: 963904 Category: Tags: , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

REXROTH 1PV2V42420RA01MC116A195 VARIABLE VANE SINGLE PUMP

The Rexroth 1PV2V4-24/20RA01MC1-16A1/95 is a high-performance variable vane single pump designed for oil-based hydraulic systems. Engineered for precision, efficiency, and durability, it ensures reliable operation in demanding industrial environments.

Manufacturer: Rexroth
Type: Variable Vane Single Pump
Model: 1PV2V4-24/20RA01MC1-16A1/95

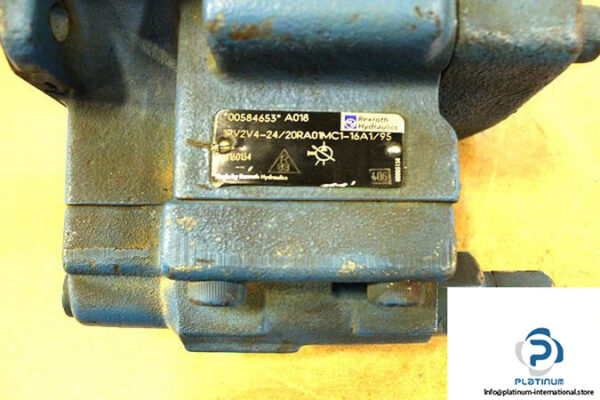

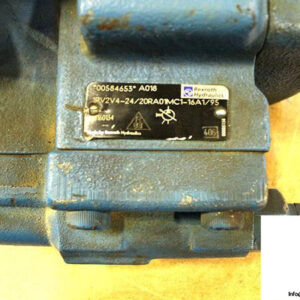

Part No.: 00584653

Technical Information

  • Fluid: Oil
  • Size: NG20
  • Displacement: 20.7 cm³
  • Direction of Rotation: Clockwise
  • Shaft Diameter: 28 mm
  • Operating Pressure: 160 bar
  • Speed Range: 900 “ 1800 rpm
  • Flow Rate at 1450 rpm: 29 l/min
  • Power at 1450 rpm: 8.5 kW
  • Torque at 100 bar: 228 Nm
  • Viscosity Range: 16 “ 160 mm²/s
Weight23,5 kg
