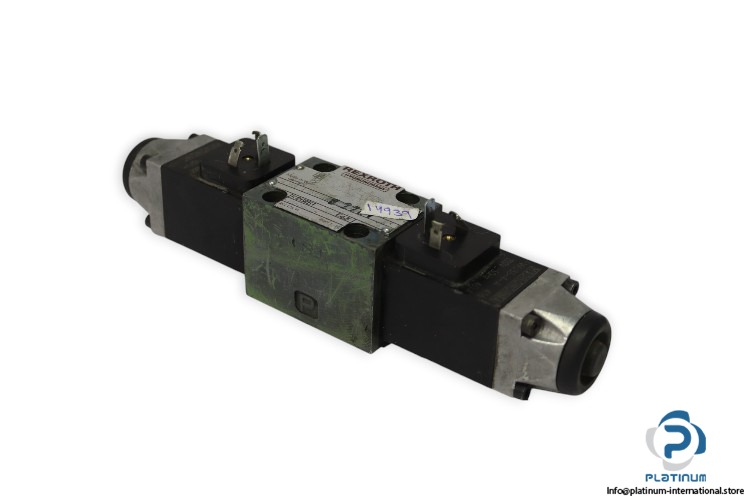

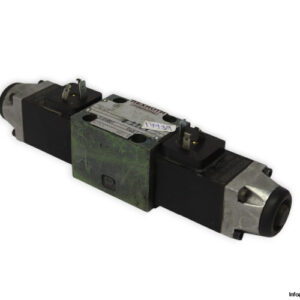

REXROTH HYDRONORMA 4 WE 6 J51/AGW 220V DIRECTIONAL SPOOL VALVE

This electrically actuated 4-way directional spool valve by Rexroth Hydronorma is engineered for hydraulic systems requiring precise control of high-pressure flows. Designed with subplate mounting, it supports up to 350 bar on pressure ports and comes equipped with the reliable WU35-4-A 416 coil for dependable performance.

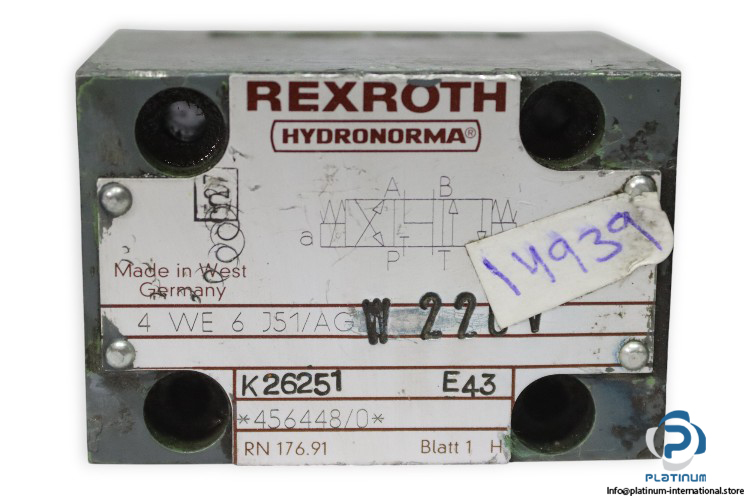

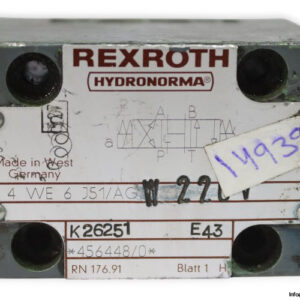

Manufacturer: Rexroth Hydronorma
Type: Directional Spool Valve
Model: 4 WE 6 J51/AGW 220V
Part No.: K26251 E43
Code: 456448/0, RN176.91

Technical Information

• No of Port: 4
• Size: 6
• Type of Connection: Subplate Mounting
• Ambient Temperature Range: -20 to +60 °C (NBR Seals)
• Maximum Operating Pressure:
  • Port P, A, B: 350 bar
  • Port T: 210 bar
• Maximum Flow: 70 l/min
• Type of Actuation: Electrically

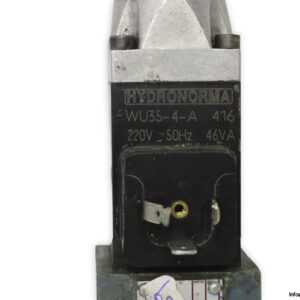

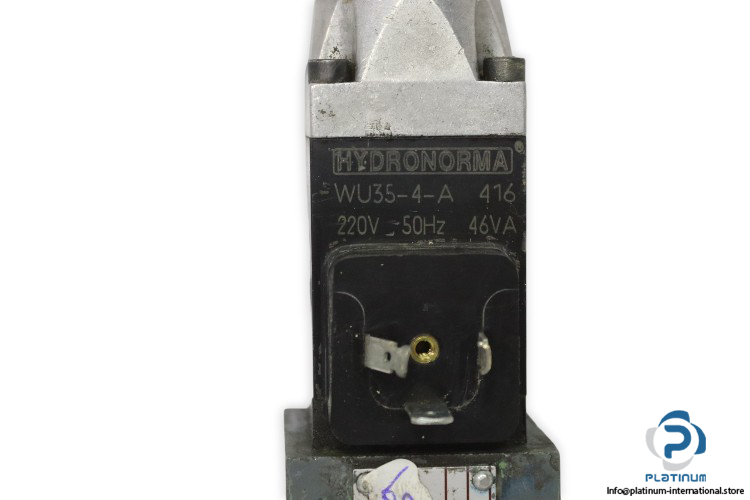

Attachment: Coil

Manufacturer: Rexroth
Type: Coil
Model: WU35-4-A 416

• Voltage: 220 V
• Frequency: 50 Hz
• Power: 46 VA
