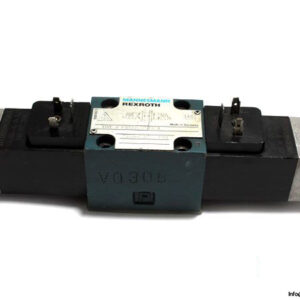

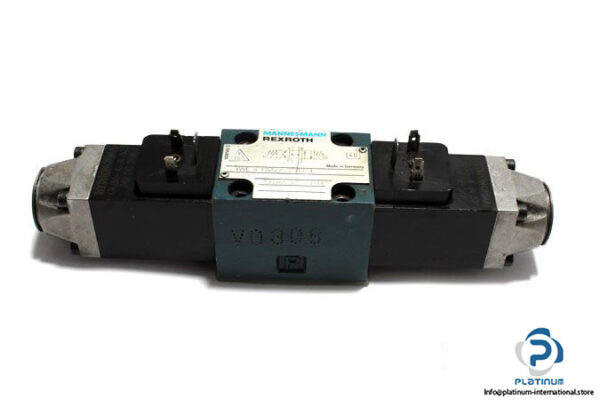

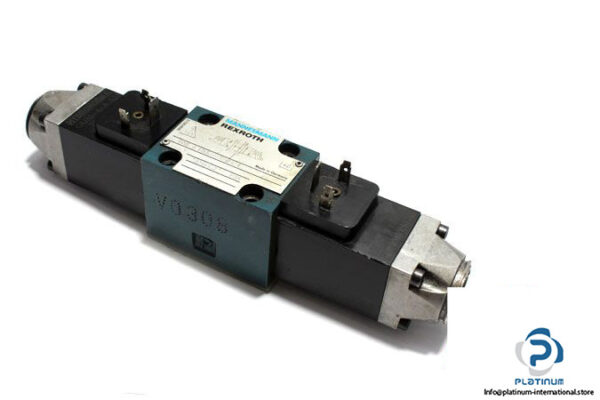

Mannesmann Rexroth 4WE 6 H53/AG24NZ4 “ Direct Operated Directional Spool Valve
The Mannesmann Rexroth 4WE 6 H53/AG24NZ4 is a high-performance, electrically actuated direct operated directional spool valve. Designed for efficient control of fluid flow in hydraulic systems, it is ideal for applications requiring precise pressure and flow control under demanding conditions.
- Manufacturer: Mannesmann Rexroth
- Type: Direct Operated Directional Spool Valve

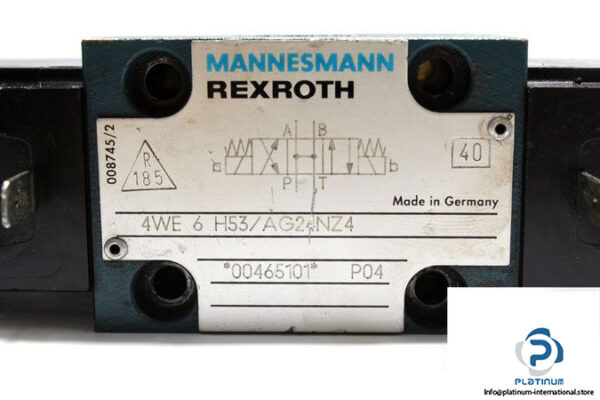

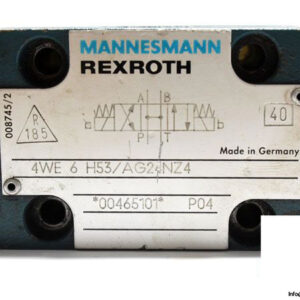

- Model: 4WE 6 H53/AG24NZ4
- Part No: 00465101 P04
Technical Information:
- Nominal Size: NG 6
- Type of Actuation: Electrically
- Max. Working Pressure (Port P, A, B): 210 bar
- Max. Pressure (Port T): 100 bar
- Max. Flow Rate: 20 l/min
- Hydraulic Connection: Sub-Plate
- Fluid Temperature Range: -20 to 80°C

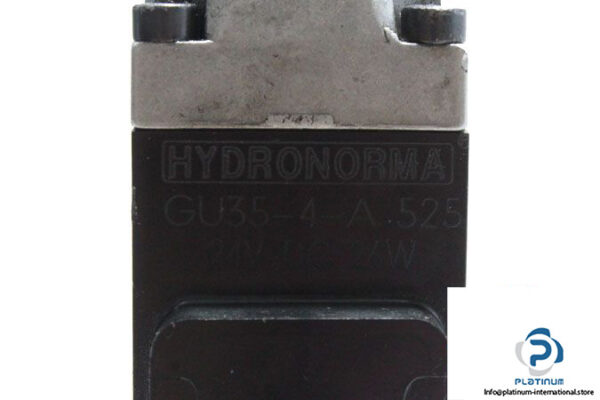

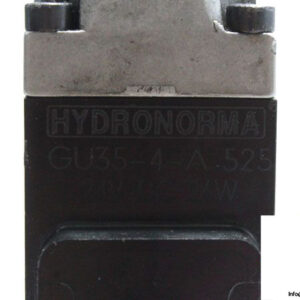

Attachment: HYDRONORMA GU35-4-A Solenoid Coil
- Manufacturer: REXROTH HYDRONORMA
- Type: Solenoid Coil
- MNR: GU354A
- Nominal Voltage per Coil: 24 V DC
- Power Rating per Coil: 26 W
