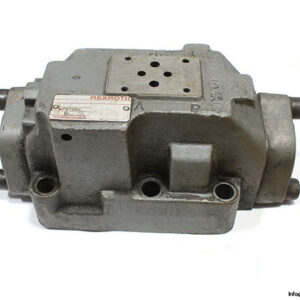

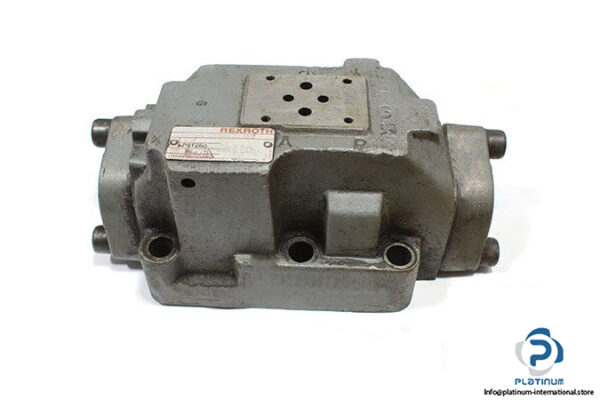

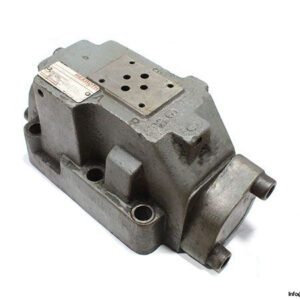

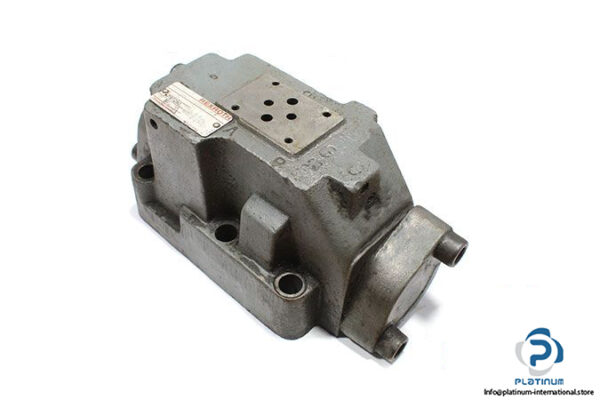

REXROTH HYDRONORMA H4WEH22G726AW22050NE PILOT OPERATED DIRECTIONAL VALVE
The Rexroth Hydronorma H-4WEH 22 G72/6AW220-50NE is a high-performance pilot operated directional valve designed for precision control in demanding hydraulic systems. Engineered for durability and efficiency, it is ideal for high-pressure and high-flow applications.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Directional Valve

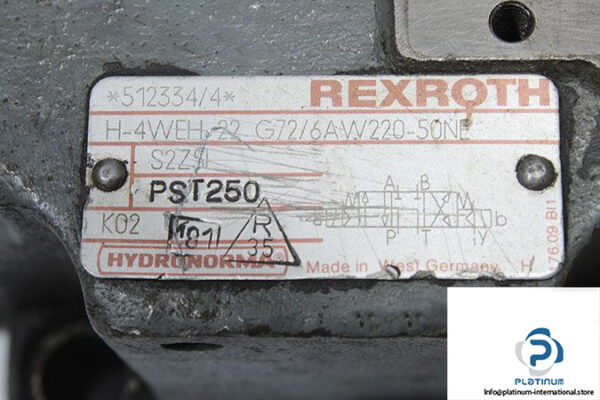

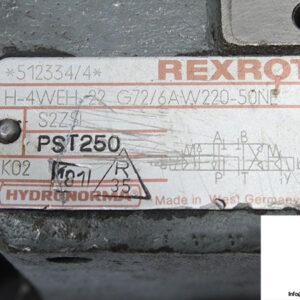

Model: H-4WEH 22 G72/6AW220-50NE
Part No.: 512334/9
Technical Information
- Fluid: Oil
- Nominal Size: NG22
- Type of Actuation: Electro-hydraulic
- Max. Working Pressure (Port P, A, B): 350 bar
- Max. Pressure (Port T): 315 bar
- Nominal Flow Rate: 1100 l/min
- Hydraulic Connection: Sub-Plate
- Fluid Temperature Range: -30 / 50 °C
