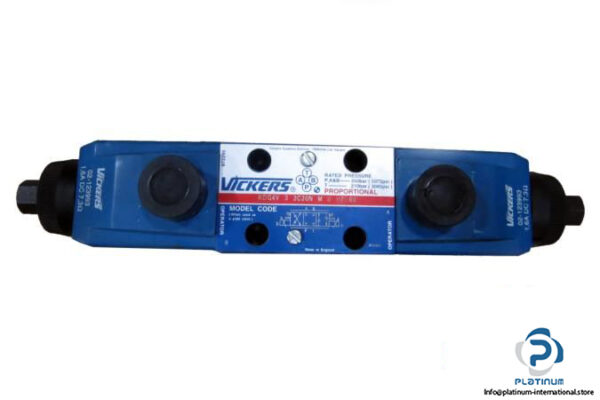

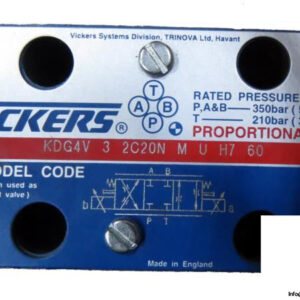

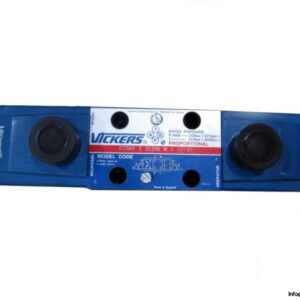

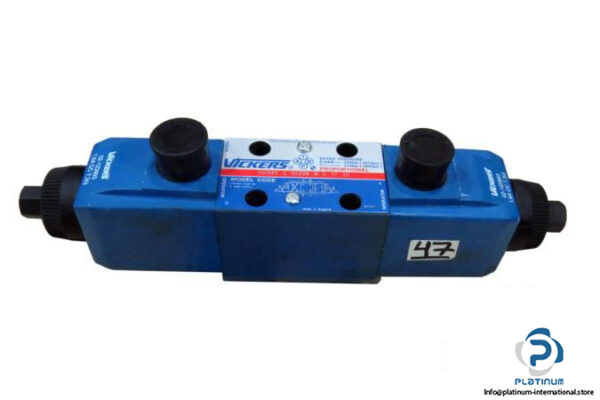

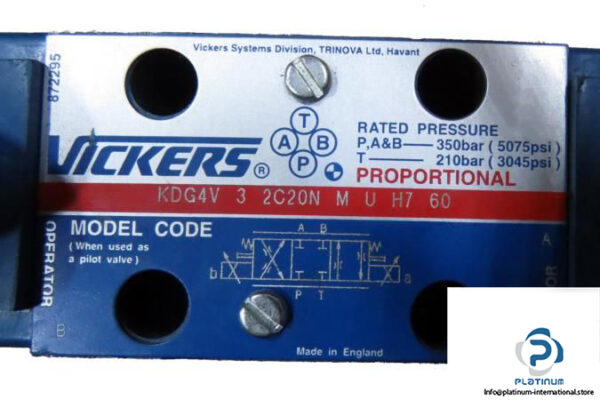

Manufacturer: VICKERS
Type: Proportional Directional Valve
Model: KDG4V 3 2C20N M U H7 60
Size: NG 6
Type of Actuation: Electrically
Standard nominal flow rate: 20 l/min
Maximum operating pressure – Input: Port A, B, P= 350 bar, Port T=210 bar
Hydraulic fluid temperature range: –20 to +80 0C
Voltage: 12 VDC
Current: 1.6A
Resistance: 7.3
Weight: 2.28 kg
