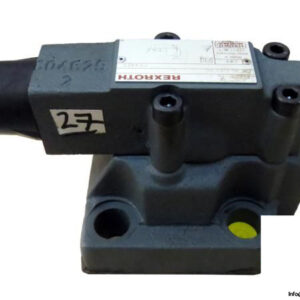

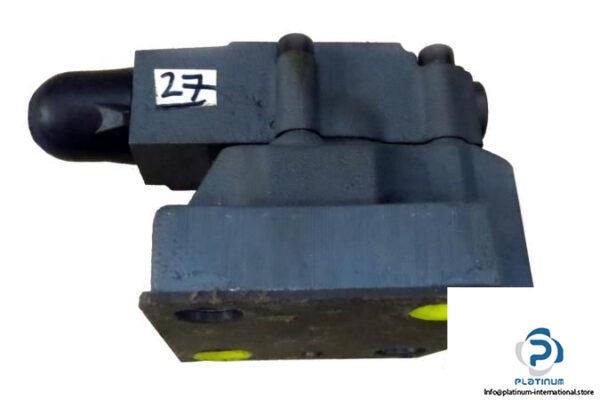

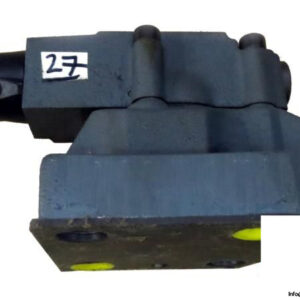

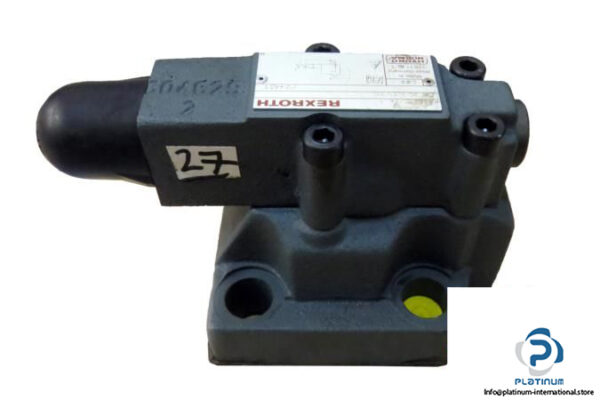

Manufacturer: REXROTH
Type: Pressure Relief Valve

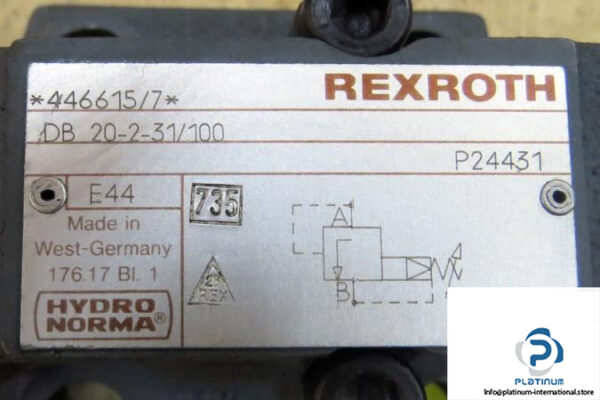

Model: DB 20-2-31/100
Type of Actuation: Hexagonal Screw
Standard nominal flow rate: 500 l/min
Maximum operating pressure – Input: Port P, X =350bar, Port T =315bar
Hydraulic Fluid Temperature Range: -30 … +80 0C
Seals: NBR
Connection: Sub Plate
Weight: 3.8 kg
