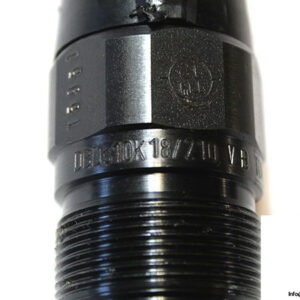

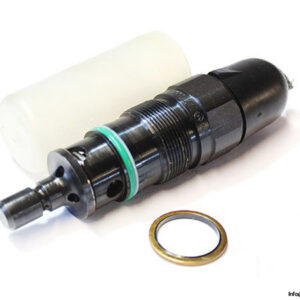

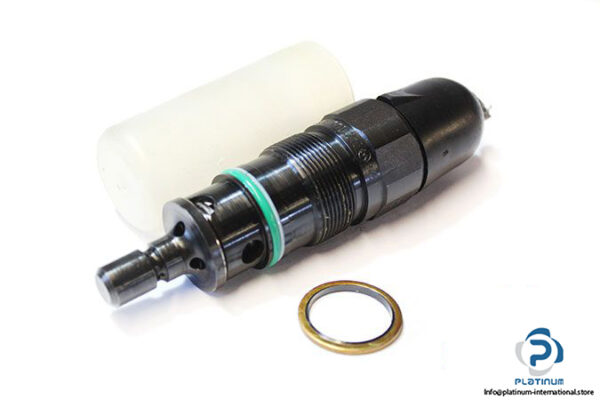

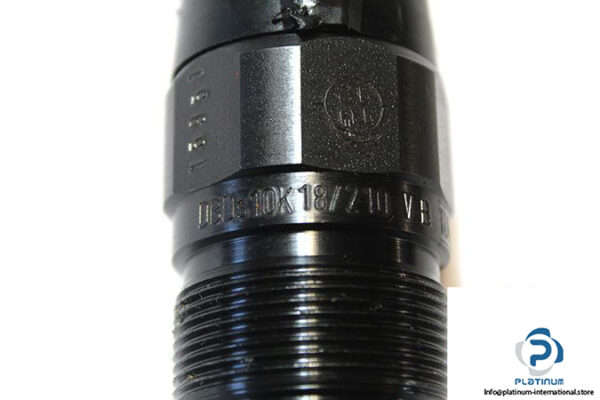

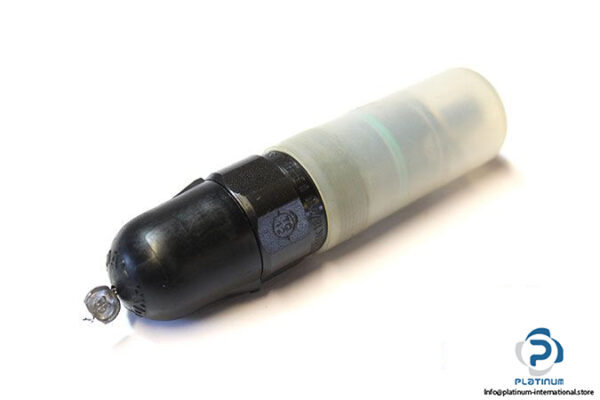

REXROTH DBDS10K18210VB DIRECT OPERATED PRESSURE RELIEF VALVE
The Rexroth DBDS 10 K18/210 VB is a high-performance direct operated pressure relief valve engineered for hydraulic systems requiring reliable pressure control. Built for durability and precision, it operates efficiently across a wide range of pressures and flow rates.
Manufacturer: Rexroth
Type: Direct Operated Pressure Relief Valve
Model: DBDS 10 K18/210 VB
Technical Information
- Fluid: Oil
- Size: NG10
- Adjustment Type: Bushing with Hexagon and Protective Cap
- Pressure Setting: 210 bar
- Maximum Operating Pressure at Input “ Standard: 400 bar
- Maximum Operating Pressure at Output: 315 bar
- Maximum Flow Rate: 120 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: G1/2
