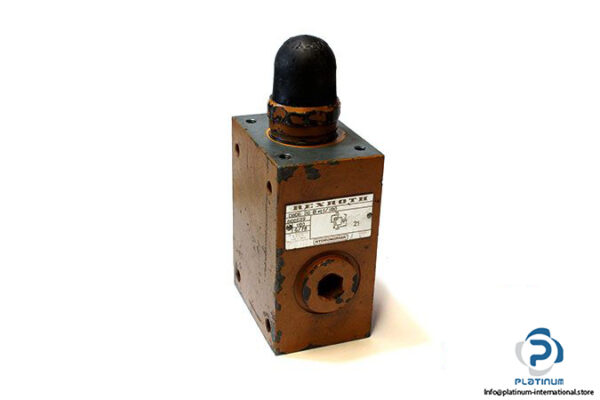

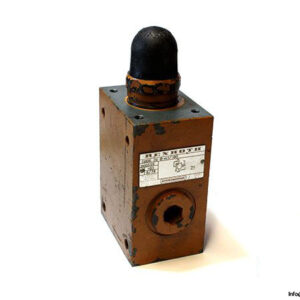

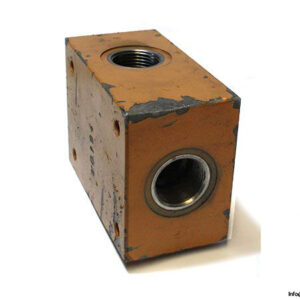

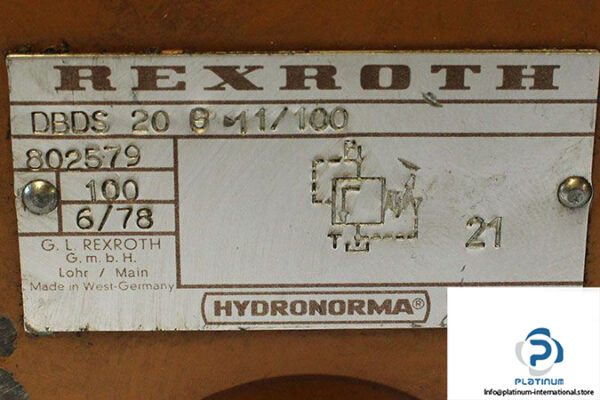

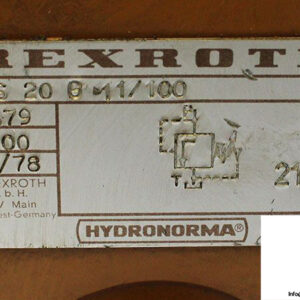

REXROTH HYDRONORMA DBDS20G11100 DIRECT OPERATED PRESSURE RELIEF VALVE
The Rexroth Hydronorma DBDS 20 G11/100 is a high-performance direct operated pressure relief valve designed for reliable overpressure protection in hydraulic systems. Built with precision engineering, it ensures consistent performance under demanding operating conditions.
Manufacturer: REXROTH HYDRONORMA
Type: Direct Operated Pressure Relief Valve
Model: DBDS 20 G11/100
Part No.: 802579
Technical Information
- Fluid: Oil
- Size: NG20
- Adjustment Type: Bushing with hexagon and protective cap
- Pressure Setting: 100 bar
- Maximum Operating Pressure at Input “ Standard: 400 bar
- Maximum Operating Pressure at Output: 315 bar
- Maximum Flow Rate: 350 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Threaded
