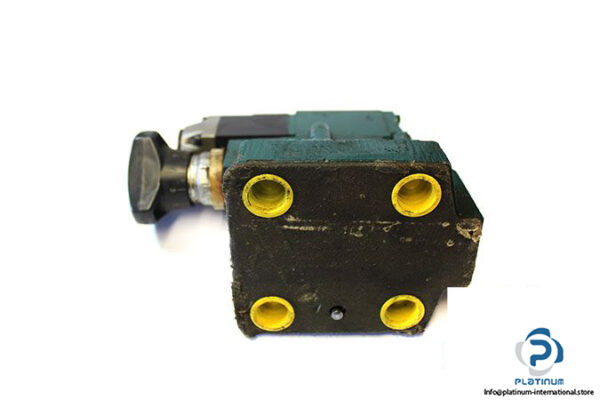

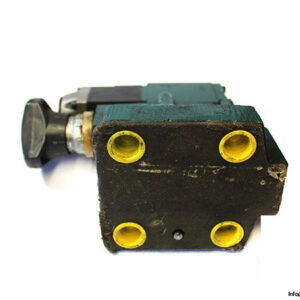

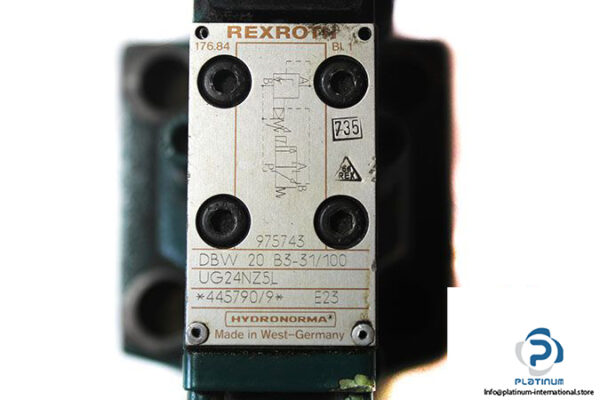

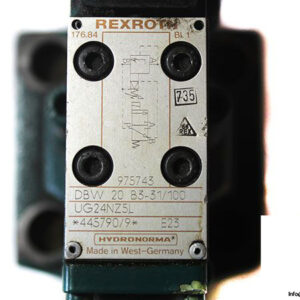

REXROTH HYDRONORMA DBW20B331100UG24NZ5L PRESSURE RELIEF VALVE
The Rexroth Hydronorma DBW 20 B3-31/100UG24NZ5L is a pilot-operated pressure relief valve engineered for precise hydraulic pressure control in industrial oil systems. Designed for sub-plate mounting, it combines robust performance with a compact footprint and is equipped with a high-efficiency solenoid coil.
Manufacturer: Rexroth Hydronorma
Type: Pilot Operated Pressure Relief Valve
Model: DBW 20 B3-31/100UG24NZ5L
Part No.: 445790/9
Technical Information
- Fluid: Oil
- Size: NG20
- Adjustment Element: Sleeve with Hexagon and Protective Cap
- Pressure Setting: 100 bar
- Max Operating Pressure at Port P: 350 bar
- Max Operating Pressure at Port T: 315 bar
- Max Backpressure at Port T: 210 bar (DC) / 160 bar (AC)
- Max Flow Rate: 500 l/min
- Viscosity Range: 10 / 800 mm²/s
- Material: Aluminum
- Hydraulic Connection: Sub-plate
- Ambient Temperature: -30 to +50 °C

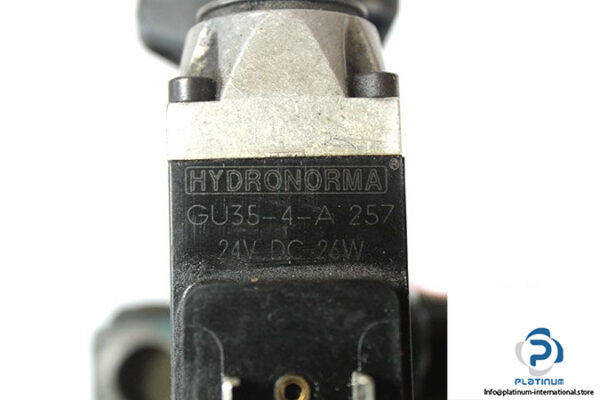

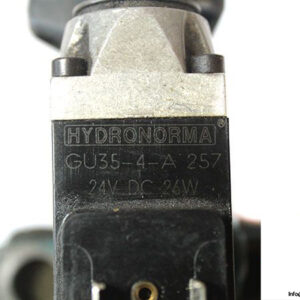

Attached Component
Manufacturer: Hydronorma
Type: Solenoid Coil
Model: GU35-4-A 257
Supply Voltage: 24 V DC
Power Consumption: 26 W
